Input Voltage (AC Drive): 460V AC
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Altitude Rating: 1000 meters (2200 feet) maximum
Shock Rating: 15G peak for 11ms duration
|
Overview |
|

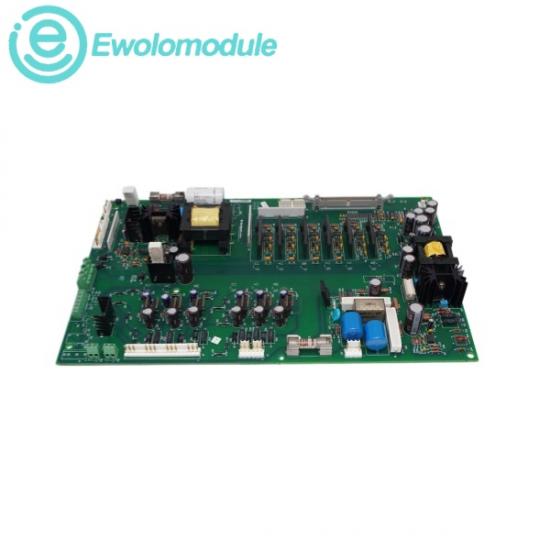

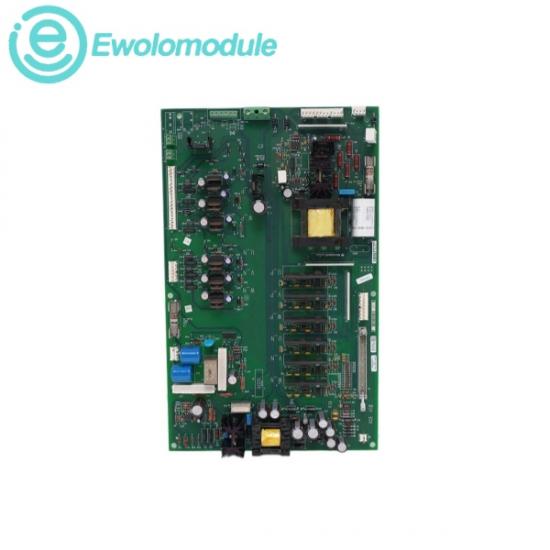

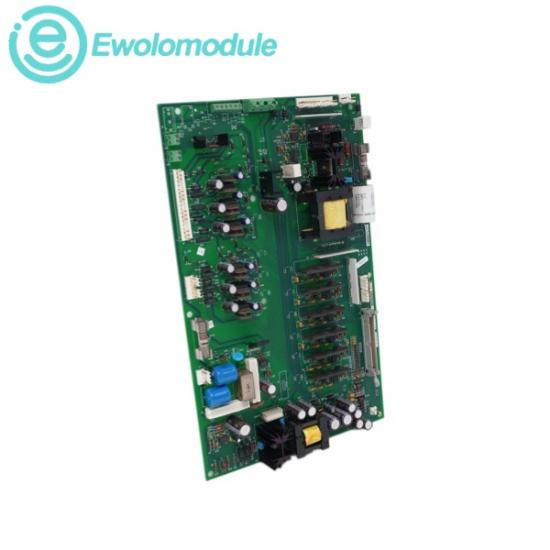

The Allen-Bradley 1336-BDB-SP30D is a PCB Gate Drive Board specifically designed as a spare part for the 1336 series of Adjustable Frequency AC Drives. This board is a critical component (classified as a Level 1 spare part - major assembly) responsible for amplifying low-power control signals to drive the IGBTs (Insulated Gate Bipolar Transistors) that control the motor . The board interacts with other power and signal modules installed on the AC drive through multiple connectors designated J2, J6, J7, J8, J9, J10, and J13 . It is physically located below the main control board within the drive chassis . |
