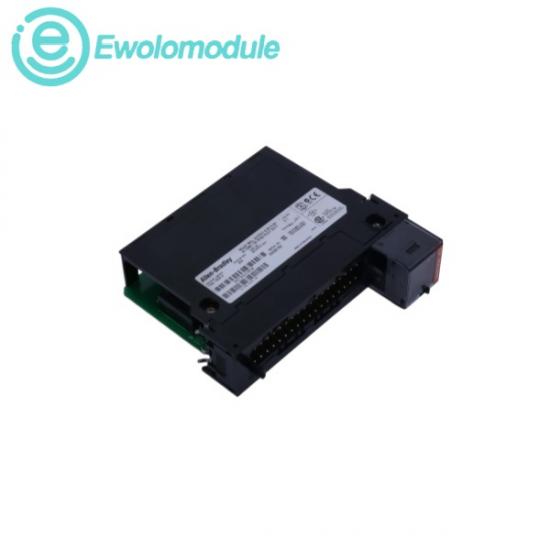

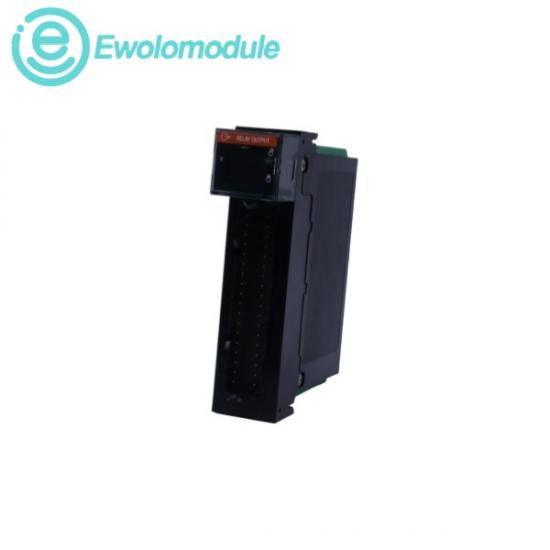

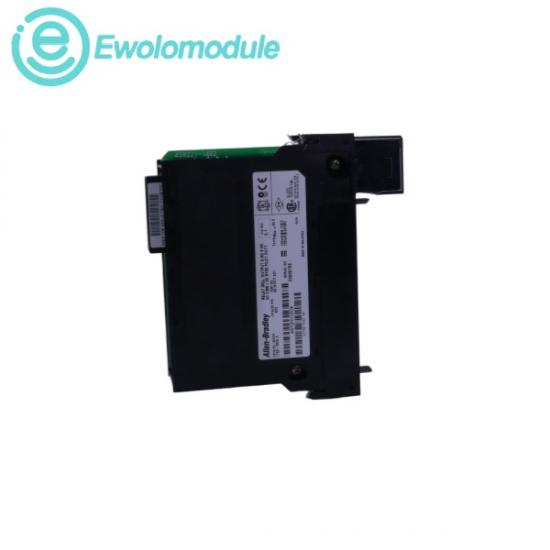

Allen-Bradley 1756-OX8I
The Allen-Bradley 1756-OX8I is a chassis-based, high-reliability 8-Point Isolated AC/DC Relay Output Module. Designed to slide into any standard slot of a ControlLogix rack, it functions as an interposing hardware switch to manage diverse, independent field circuits such as motor starters, indicator lights, and solenoids.
The core engineering distinction of the 1756-OX8I is its Individual Group Isolation ("I") and mixed contact topology:
· Dual Contact Configuration per Point: As specified in your uploaded document, the module features 8 Normally Open (N.O.) and 8 Normally Closed (N.C.) contacts arranged in pairs.
· Galvanic Group Isolation: The circuitry is configured with two points per group, meaning every pair of outputs shares a separate common return, isolating different groups from one another. This allows the card to bridge completely distinct power sub-grids, controlling varying voltage levels (e.g., mixing 24V DC loops and 120V AC lines on the same physical module) without risk of cross-talk or backplane short-circuits.
Data Info
|
Outputs: |
8 N.O. (Normally Open) and 8 N.C. (Normally Closed) individually isolated contacts (Configured as two points per group) |
|
Initial Contact Resistance, Max: |
100mΩ at 6V DC, 1 A |
|
Off-State Leakage Current per Point, Max: |
0mA |
|
Minimum Load Current:t |
10mA per point |
|
Operating Voltage Range: |
DC Operation: 5 to125 DC AC Operation: 10 to240V AC |
|
Current Draw at 5.1V DC: |
100mA |
|
Current Draw at 24V DC: |
100mA |
|
Total Backplane Power: |
2.9w |
