Total Local Communication Ports:

4 integrated local channels

Total Remote Communication Ports:

2 remote channel connections

Maximum Remote Interface Distance:

Up to 10,000 cable feet when paired with a 1775-RM remote adapter

Ambient Operating Temperature Range:

0°C to 60°C (32°F to 140°F)

Max Altitude Threshold Without Derating:

Up to 1,000 meters (3,280 feet) above sea level

Physical Mounting Format:

Secured inside a Bulletin 1775 rack via rigid guide rails

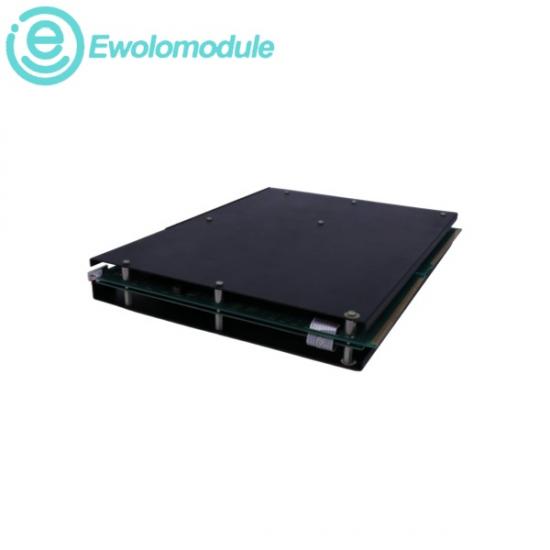

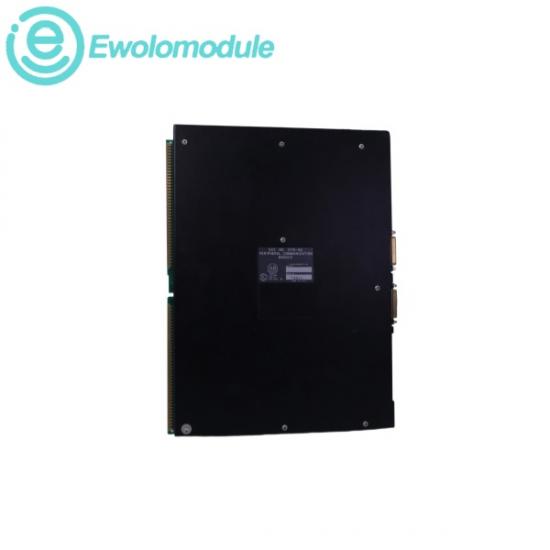

The 1775-GA is a legacy, high-performance peripheral processing and network bridging module manufactured by Rockwell Automation under the Allen-Bradley brand. Operating as an intelligent co-processor within the main master rack, its primary function is to manage data logging, recipe modifications, and secondary peripheral communications independently of the central processor's core logic execution scan. It acts as a multi-channel serial gateway by supporting multiple concurrent asynchronous RS-232-C channels. The module is integrated with an onboard GA-Basic programming runtime environment, which allows control engineers to write standalone data manipulation scripts without consuming main ladder diagram memory space. It also features dedicated, built-in communication interfaces for mass storage operations, facilitating automated background program uploads, logic downloads, and diagnostic state captures. A front-panel cartridge-tape interface allows plant operators to save or load critical operating systems and system register matrices to external tape recorders during major field maintenance windows. Furthermore, the hardware utilizes internal optoelectronic galvanic isolation to protect the sensitive internal backplane logic gates from high-voltage transient spikes or common-mode industrial noise on external communication lines.
