1N1346

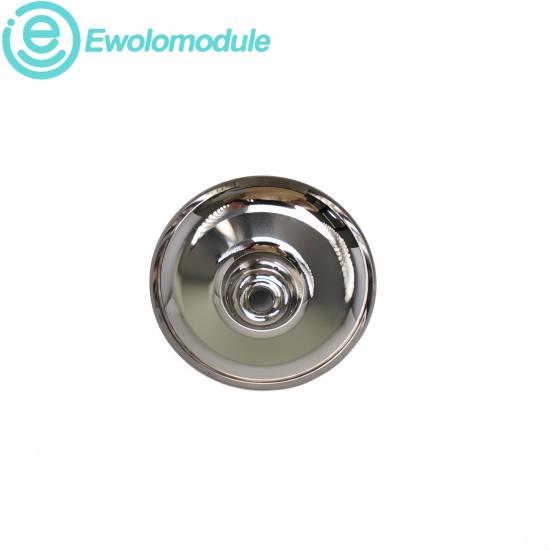

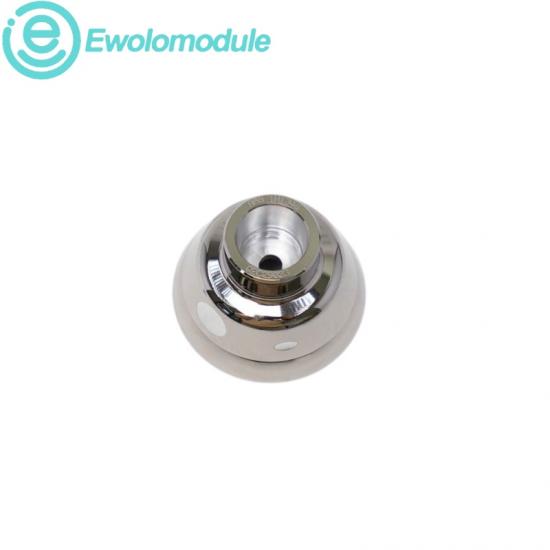

BOC Bell Cup 50mm
| Product snapshot |
A lightweight 50 mm bell cup forming the rotating paint-dispersion element in compatible ABB robotic atomizer assemblies. |
| 02 |
CERTIFICATIONS, STANDARDS & COMPATIBILITY |
ENGINEERING REVIEW |
|
Certifications & Standards
Review the 1N1346 identity with the applicable ABB atomizer manual and the complete paint-cell safety documentation. Compliance depends on the installed electrostatic system, solvent controls, ventilation and approved process materials.
Isolate rotation, high voltage, paint and cleaning media before removal. Inspect the hub, cup condition and balance requirements; no undocumented certification or speed rating is assumed.
|
Compatibility & Interoperability
The 1N1346 is a documented 50 mm two-piece BOC bell cup for selected ABB ROBOBEL painting systems. Confirm the installed atomizer, BOC configuration, hub and cup diameter before replacement.
Nearby non-BOC and other-diameter cups are not interchangeable by appearance. Use the specified assembly procedure and verify runout, balance and spray quality under controlled conditions.
|
Technical data
| Product type |
Two-piece bell cup |
Cup diameter |
50mm |
| Configuration |
BOC |
Process role |
Paint atomization |
| Part identity |
1N1346 |
Equipment class |
Robotic atomizer |
Verify the exact order code, installed configuration and applicable project documentation before commissioning.
