01PRODUCT DETAILS

ABB POWER ELECTRONICS COMPONENT

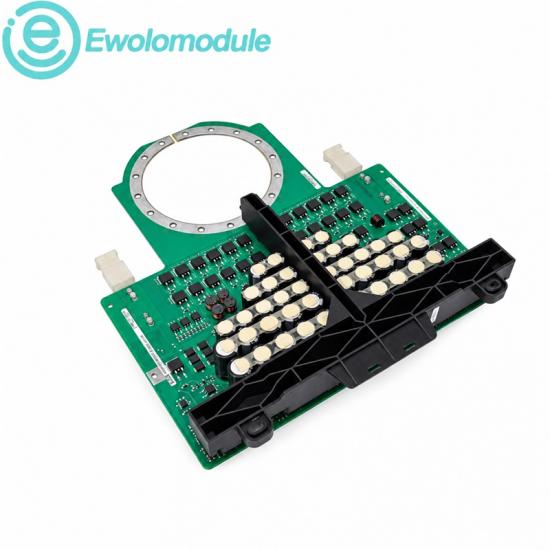

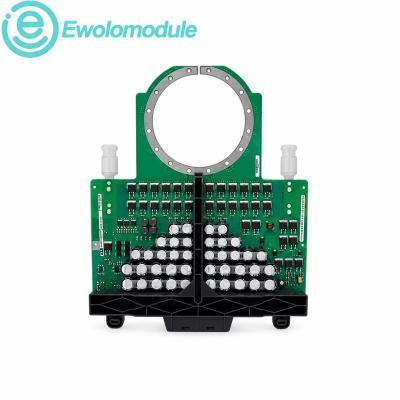

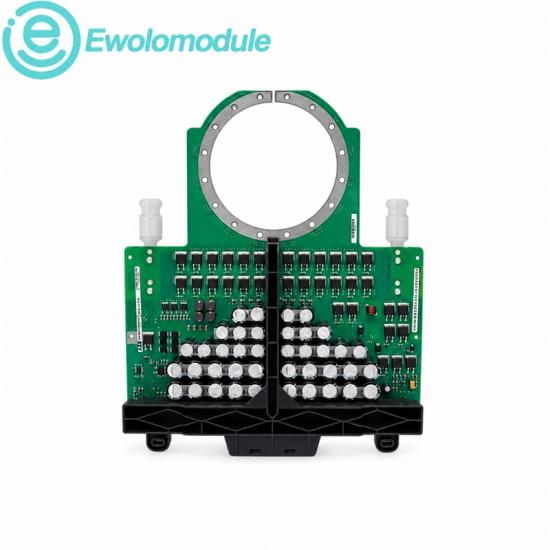

ABB 3BHB003154R0101 5SXE 04-0150 / 3BHL000390P0104 5SHX 1960L0004 IGCT Module Board

A coordinated IGCT gate-unit and power-semiconductor assembly for high-power switching in compatible ABB medium-voltage drive systems.

SERIES

ABB Medium-Voltage Drives

DEVICE CLASS

IGCT assembly

FUNCTIONAL ROLE

Power switching interface

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

02SPECIFICATIONS

Email : sales9@apterpower.com

HIGH-POWER DRIVE SWITCHING

Coordinated IGCT gate control and power switching

The gate unit receives converter commands, drives the paired press-pack IGCT and returns operating status within compatible ABB medium-voltage drive assemblies.

GATE UNIT

3BHB003154R0101

TYPE DESIGNATION

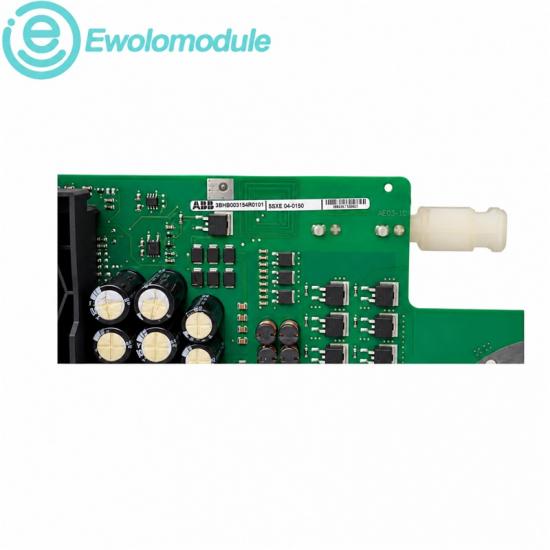

5SXE 04-0150

PAIRED IGCT

5SHX 1960L0004

Official technical data

Product type	IGCT module board assembly	Manufacturer	ABB
Gate unit code	3BHB003154R0101 / 5SXE 04-0150	IGCT code	3BHL000390P0104 / 5SHX 1960L0004
Command interface	Fiber-optic firing and status	Switching device	Press-pack IGCT
Drive application	ABB medium-voltage drives	Installation	Converter power stack

Communication & Connectivity

Fiber-optic command and status paths electrically isolate the converter controller from the high-power switching stage. Verify the matched gate-unit/IGCT pair, optical connectors and converter wiring before commissioning.

Safety & Compliance

Only qualified personnel should service the converter. Isolate all power, discharge the DC link, follow ABB procedures and confirm the specified press-pack clamping and insulation checks before returning the drive to service.

03BRAND & APPLICATIONS

Email : sales9@apterpower.com

Brand characteristics

ABB power-electronics components use coordinated gate control, defined semiconductor pairings and documented converter service procedures for high-power drive systems.

Matched assembly

Gate unit and IGCT references support exact replacement matching.

Optical isolation

Fiber links separate control signaling from the power stage.

Lifecycle service

Defined part codes simplify planned converter maintenance.

Application fields

The assembly supports high-power semiconductor switching where compatible ABB medium-voltage converter hardware remains in active industrial service.

Heavy industry

Medium-voltage drives for mills, fans and large motors.

Process plants

High-power converter service in continuous production.

MRO projects

Matched spare replacement during planned outages.
