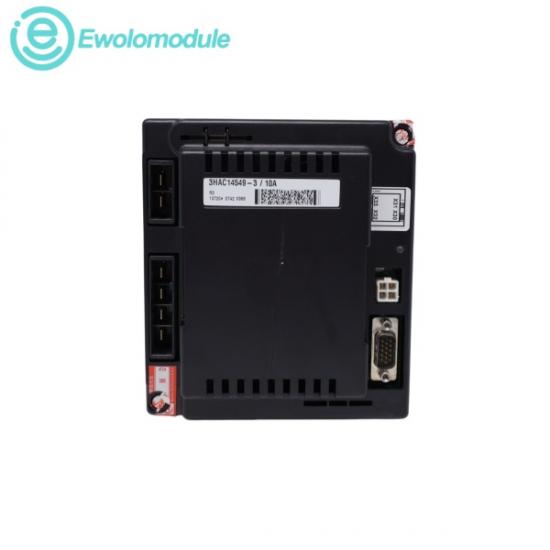

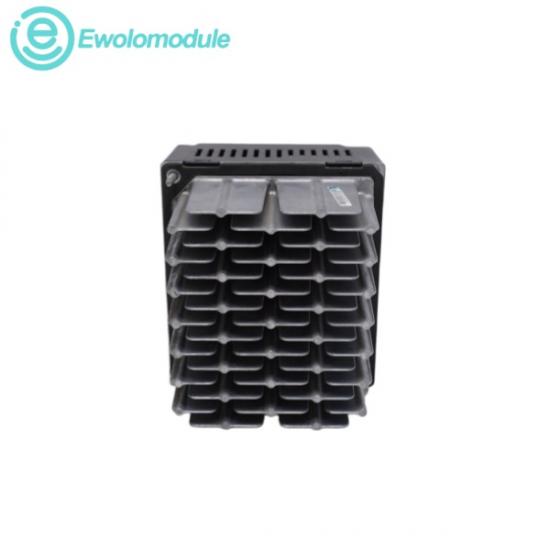

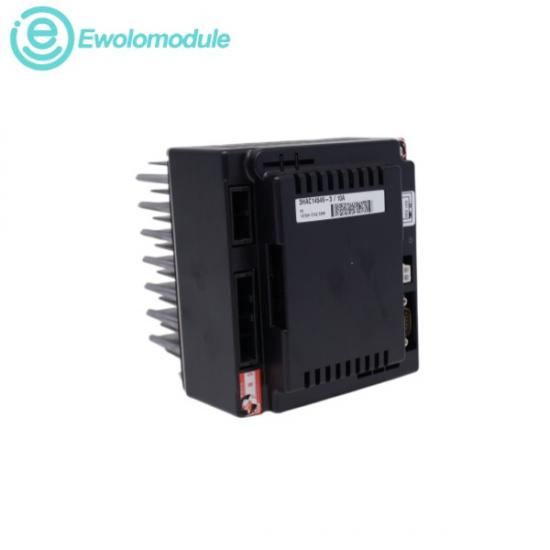

The ABB 3HAC14549-3 is a heavy-duty power-electronics converter module engineered to establish stable electrical power within robotic control grids. Operating as a primary link in the drive subsystem, the unit intakes three-phase alternating current from the grid and converts it into a regulated direct current link bus output. This rectified DC link directly energizes adjacent DSQC multi-axis servo drive units that dictate robotic motor velocities.

n Nominal AC Input Voltage: 3-phase, 380 VAC to 480 VAC nominal operational window

n Supported Power Grid Frequency: 50 Hz or 60 Hz standard line operation

n Nominal Output Rectified Current: Standard 7.0 A to 12.0 A continuous output current

n DC Voltage Link Output Range: Nominal 260 VDC to 300 VDC intermediate bus supply

1.

IRC5 Drive Bus Power Rectification: Installed straight inside the main ABB IRC5 drive module cabinet or its auxiliary drive extension rack. It accepts incoming mains factory power, generating an isolated DC bus link to smoothly feed multi-channel servo amplifiers. This eliminates power fluctuations during high-speed multi-axis movements.

2.

Automotive Spot Welding & Frame Assembly: Supplies continuous DC intermediate energy profiles to heavy-duty 6-axis manipulator robots that execute rapid acceleration welding matrices on vehicle lines.

3.

High-Velocity Pick and Place Logistics: Maintains a clean electrical baseline for high-cycle robotic packing arms and multi-station conveyor synchronization lines where voltage ripples would compromise tracking accuracy.

4.

Aerospace Riveting & Foundry Machine Tending: Powers heavy-duty robotic cells working in intense ambient environments, securing high-torque servo loop integrity during continuous casting or drilling paths.
