PRODUCT PROFILE

ABB · CONTROL SYSTEMS

ABB PRODUCT IDENTITY

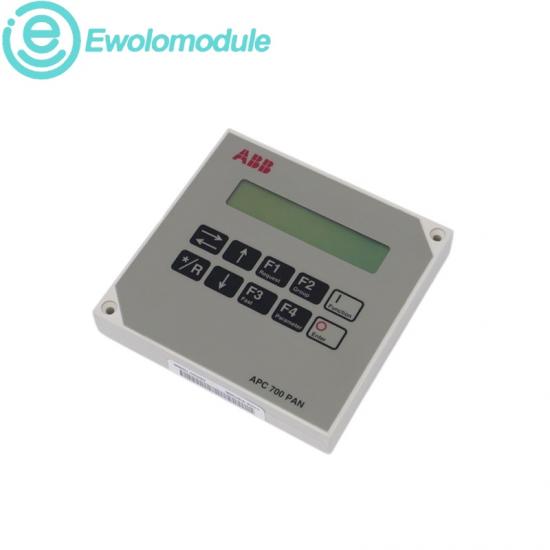

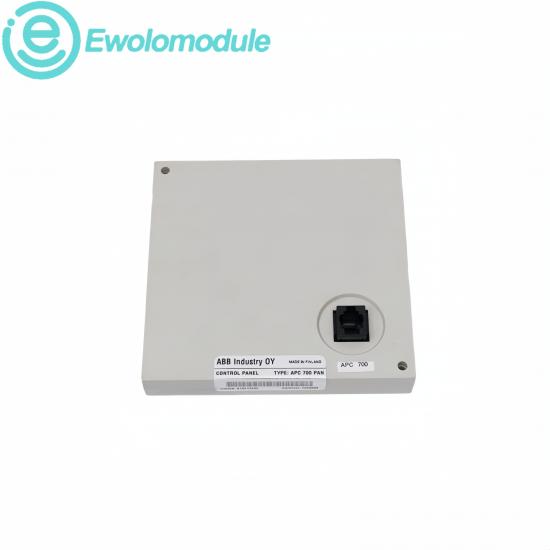

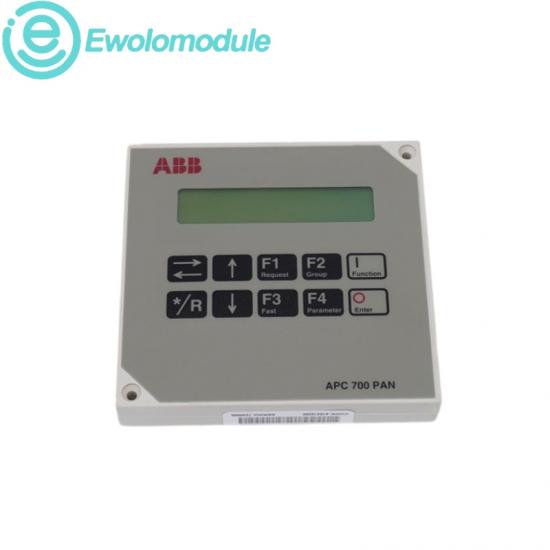

APC700PAN
Operator Control Panel

A door-mounted interface that supports operation, monitoring and parameter handling for an installed application-controller environment.

SYSTEM CONTEXT

ACV 700 Drive System

Operator access to drive status, references, actual values, fault logs and controller parameters.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL

+86 17359287459

sales9@apterpower.com

Explore other ABB products →

CERTIFICATIONS, STANDARDS & SAFETY

ENGINEERING CONTROL

Certifications & Standards

DOCUMENTATION BASIS

Use the ABB ACV 700 hardware manual and the complete APC700PAN nameplate as the controlling references for identification and installation review.

INSTALLATION CONFORMITY

Panel cut-out, enclosure construction, protective wiring and the completed drive cabinet determine the standards that apply to the installed assembly.

IDENTITY CONTROL

Confirm APC700PAN, the ABB panel code, hardware revision and the associated application-controller configuration before replacement.

Safety & Compliance

SAFE ISOLATION

De-energize the drive system and verify stored energy is discharged before removing the door panel or its power-supply board.

QUALIFIED SERVICE

Installation and parameter transfer should be performed by qualified personnel using site lockout, ESD and electrical-safety procedures.

CONTROLLED START-UP

Check connector seating, panel supply, communications and saved parameters before enabling drive operation; no undocumented approval is assumed.

Technical data

ABB panel code

3AFE61041320

Panel supply

9VDC

Supply board

APC 700 PPW

DDC selection

Up to 4 drives

Programmable keys

4 function keys

Operator functions

Status / values / fault log

Verify the complete nameplate, installed hardware revision and official project documentation before commissioning.
