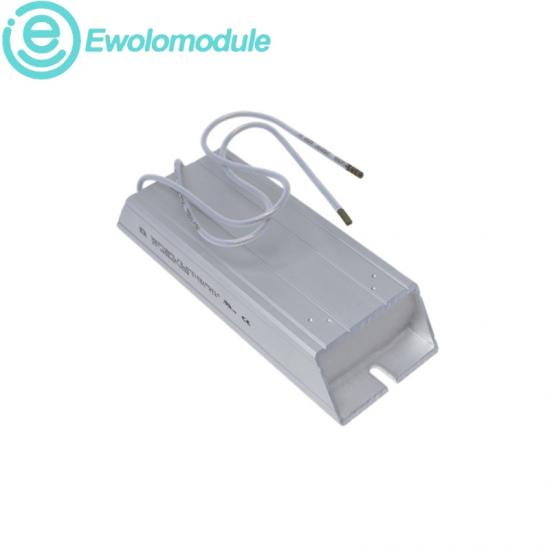

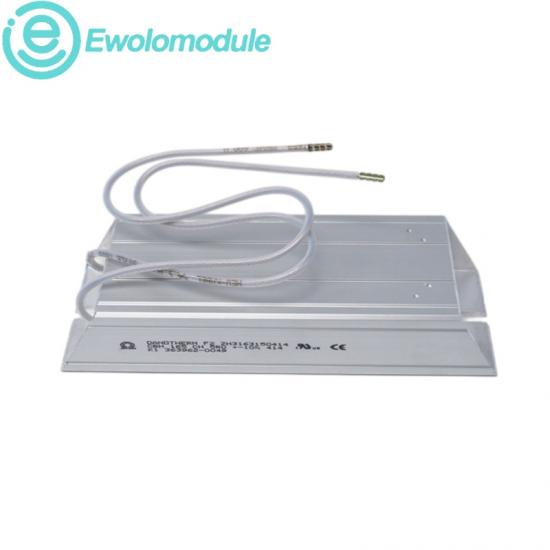

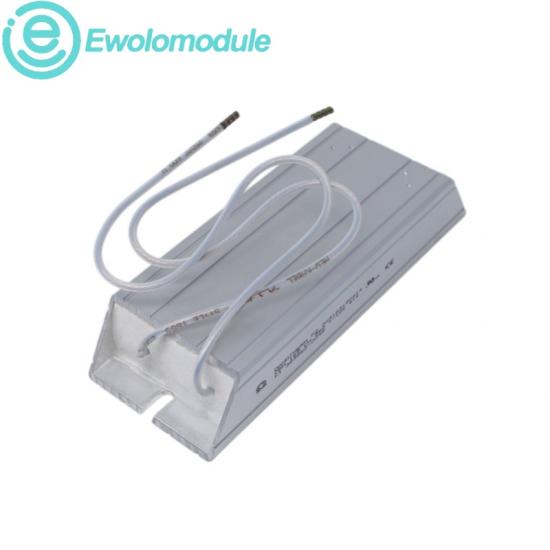

CBHX165C 5R 414
DC-Link Pre-Charge Resistor

A housed resistor that limits inrush current while the DC link charges in compatible ABB drive assemblies.

OPERATING PURPOSE

Controlled capacitor charging

Restricts initial charging current before the main DC-link path is established.

SYSTEM POSITION

Drive charging circuit

Mounted in the cabinet as part of the pre-charge sequence for the power stage.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL

+86 17359287459

sales9@apterpower.com

Explore other ABB products →

DIAGNOSTICS, PROTECTION & INSTALLATION

SERVICE PLANNING

Diagnostics & Protection

If pre-charge faults occur, isolate the drive and verify complete DC-bus discharge. Measure resistance only after disconnection, then inspect the resistor body, leads, terminals, bypass contactor and charging-control circuit for heat or mechanical damage.

Repeated resistor failure can indicate a bypass contactor or DC-link fault; correct the sequence problem before installing a replacement.

Installation & Upgrades

Match the CBHX165C 5R 414 identity, resistance value, mechanical envelope and duty. Use the specified cabinet mounting surface and maintain separation from heat-sensitive wiring and components.

Inspect terminals, tighten connections to documented torque and verify the complete pre-charge timing and bypass operation before returning the drive to service.

Technical data

Resistance

5Ω

Duty

Short-duration pre-charge

Mounting

Cabinet / chassis

Application

ABB drive charging circuit

Construction

Housed wirewound

Product ID

64803689

Verify all ratings, connections and installed-system documentation before commissioning.

BRAND CHARACTERISTICS & APPLICATION FIELDS

USE-CASE OVERVIEW

Brand characteristics

Purpose-built resistance

Specified resistance supports controlled DC-link charging.

Housed construction

Mechanical enclosure protects the wirewound element.

Cabinet mounting

Designed for organized installation in drive assemblies.

Traceable marking

Type and resistance codes support maintenance verification.

Application fields

AC drives

DC-link inrush limiting during drive start-up.

Power converters

Controlled charging of large capacitor banks.

Industrial cabinets

Chassis-mounted resistor service in enclosed panels.

Drive maintenance

Like-for-like replacement after sequence diagnosis.
