Product category: ABB S800 I/O Series

Product status: New and Original

Tariff code: 85371091

Product description:

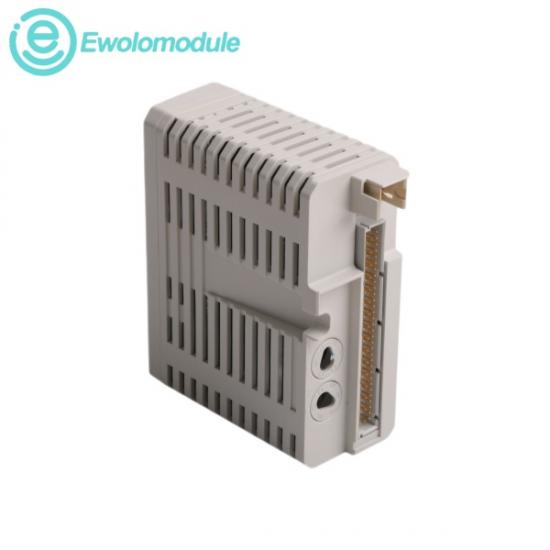

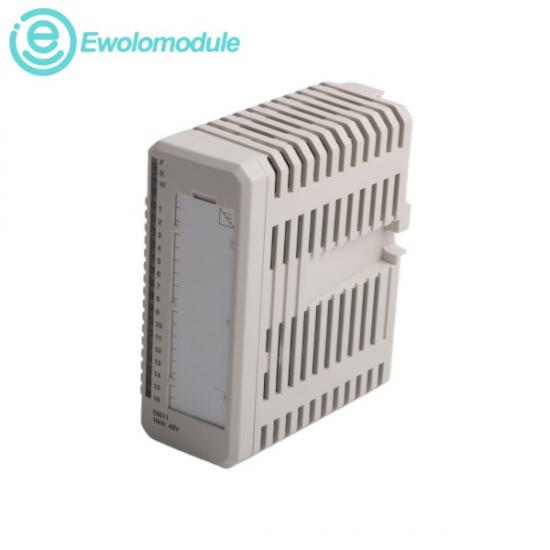

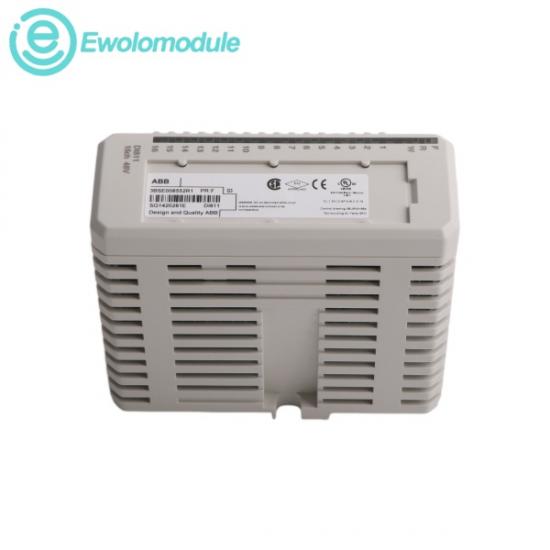

ABB DI811 3BSE008552R1 Digital Input Module

The ABB DI811 3BSE008552R1 is a 48V DC 16-channel digital input module. Featuring group isolation, the ABB DI811 3BSE008552R1 operates reliably within compact, automated S800 I/O industrial control architectures.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Product Introduction

The ABB DI811 3BSE008552R1 is a 16-channel 48 V digital input module for the S800 I/O system. This highly reliable device functions with inputs isolated in two groups of 8 channels to prevent systemic noise propagation and maintain electrical loop safety on volatile factory floors. Every input channel consists of current limiting components, EMC protection components, input state indication LED, and optical isolation barrier. The process voltage supervision input gives channel error signals if the voltage disappears, and the error signal can be read via the ModuleBus.

Ø Channel Configuration: 16 channels, isolated in two groups of 8 channels.

Ø Rated Operating Voltage: 48V DC nominal input voltage rating.

Ø Operating Ambient Temperature: Engineered to operate flawlessly within standard S800 cabinet environments spanning -20 °C to +60 °C.

Ø Power Supply Consumption: Standard S800 series modules of this class draw low current under 100mA from the 24V DC backplane power line.

Applications & Use Cases

➟ Distributed Process Control Integration: Translating continuous 48V binary field signals from switches or sensors into readable logic for host automated control grids.

➟ Isolated Group Telemetry Acquisition: Monitoring volatile automation lines requiring high signal integrity with inputs isolated in two groups of 8 channels.

➟ Flexible Termination Benchmarking: Deployed seamlessly across diverse layout structures by configuring the hardware to use Module Termination Unit TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850.

➟ Harsh Industrial Environment Monitoring: Serving as a reliable digital interface in dense industrial cabinets where robust isolation guards against high-voltage surges.

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
