ABB ROBOTICS
DSQC601
3HAC12815-1

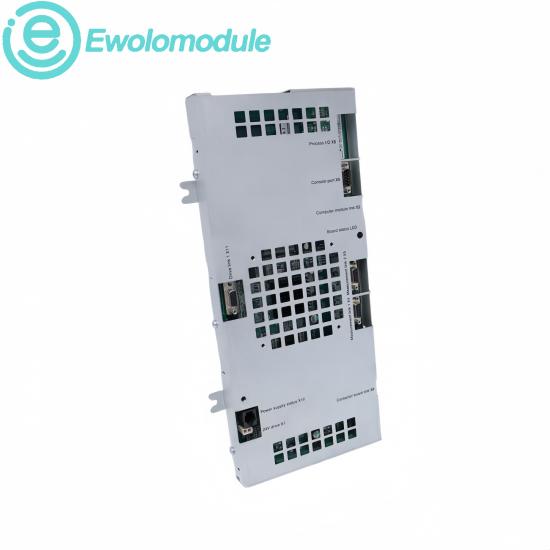

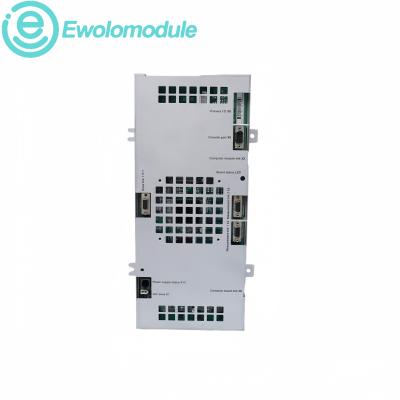

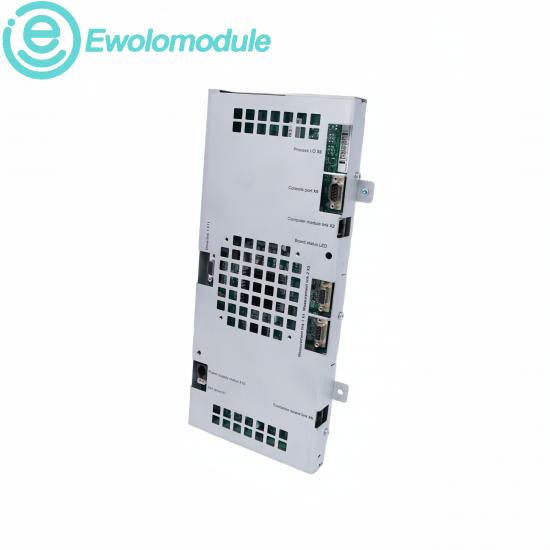

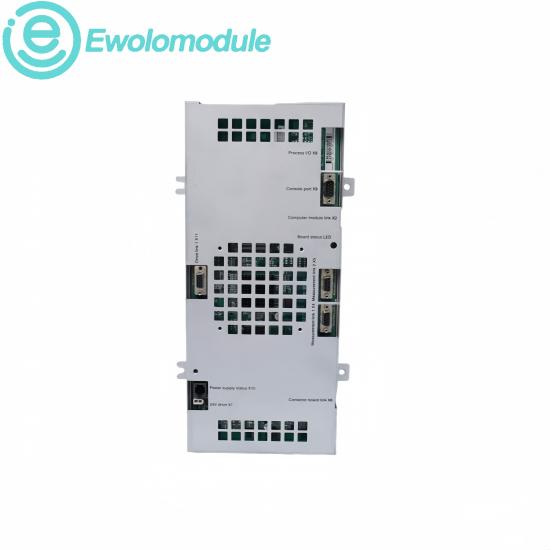

IRC5 Axis Computer
CONTROL FUNCTION
Coordinated axis-computation board for established ABB robot controllers
The DSQC601 performs real-time motion calculation and axis coordination inside compatible IRC5 systems. Confirm the complete part number and controller design before replacement.
REPLACEMENT CHECK
Match design year and cover set
Firmware & Updates
The DSQC601 operates as controller hardware within the IRC5 software environment; firmware and RobotWare compatibility must be assessed at system level rather than as a standalone board update.
Record the installed controller generation, RobotWare release and board revision before replacement. Preserve the existing configuration backup and validate axis calibration after commissioning.
Application Scenarios
Used in compatible ABB IRC5 robot-control cabinets for coordinated multi-axis motion, trajectory execution and synchronization between the controller and drive system.
Typical service contexts include automotive cells, material handling, welding, assembly and planned restoration of installed robot systems where the original controller architecture is retained.
Technical data
TYPE DESIGNATION
DSQC 601
HARDWARE FUNCTION
Axis computer
NOMINAL CONTROL SUPPLY
24V DC
M2004 COVER SET
3HAC021911-001 / 3HAC021567-001
M2006 COVER SET
3HAC023997-001 / 3HAC024382-001
Verify the installed IRC5 design and corresponding cover hardware before commissioning.
Brand characteristics
Robotics platform
IRC5 architecture coordinates robot motion, drive communication and configuration data.
Lifecycle discipline
Part number, hardware revision and controller generation are treated as one installed configuration.
Motion integration
Axis computation is synchronized with controller, drive and feedback functions.
Service continuity
Matched spare hardware supports planned maintenance of established ABB robot cells.
Application fields
Automotive
Robot motion control for welding, handling and body-shop production cells.
General assembly
Repeatable multi-axis positioning for automated assembly and machine tending.
Material handling
Coordinated pick, place, palletizing and transfer operations.
Lifecycle service
Controller-specific replacement during planned outages and recovery work.
