01 / PRODUCT DETAILSS400 I/O / MASTERFIELDBUS

ABB · INDUSTRIAL COMMUNICATION

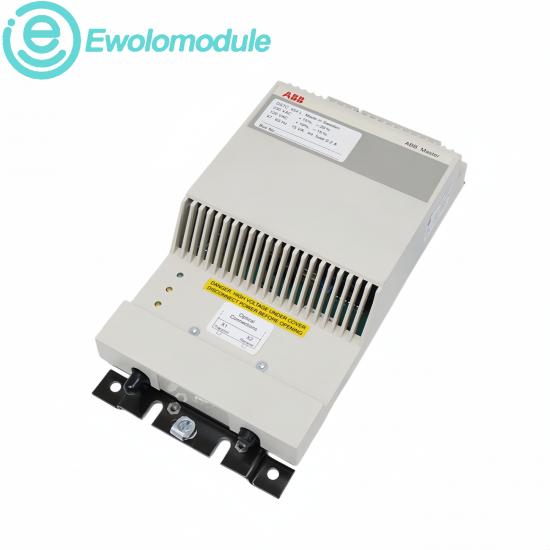

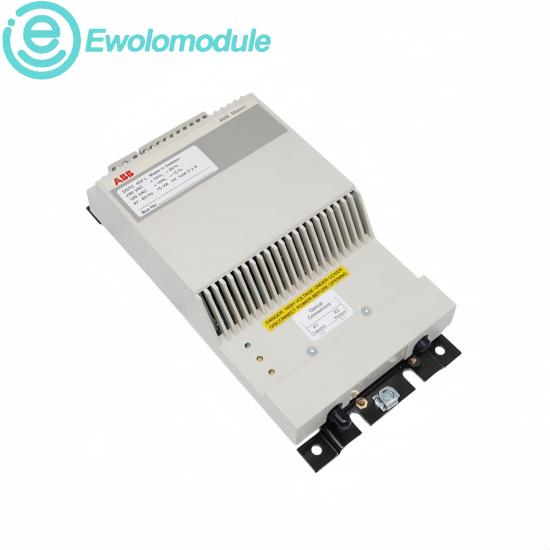

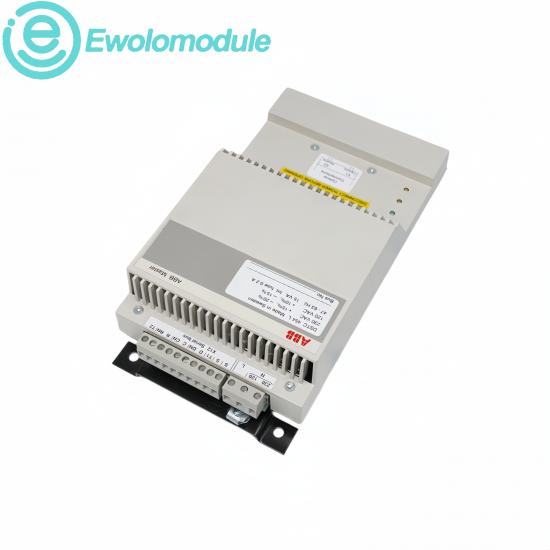

DSTC454L

LDB Fiber Optic Modem

Long-distance optical communication for ABB S400 I/O fieldbus segments

PRODUCT ROLE

Transfers MasterFieldbus traffic across a duplex multimode fiber connection.

SYSTEM FIT

Match 5751017-R, fiber type, FSMA connectors and the installed bus topology.

Product overview

The DSTC454L converts the documented ABB long-distance bus into a multimode fiber link, extending S400 I/O communication while providing electrical isolation between cabinet locations.

CONDITIONNew Original

WARRANTYOne year

DIRECT CALL+86 17359287459 EMAILsales9@apterpower.com

Explore other ABB products →

02 / PERFORMANCE & USE

Performance & Efficiency

The modem supports 50/125µm or 62.5/125µm multimode duplex fiber through FSMA-1/905 connectors. A documented 200mA fuse protects the unit, while the optical link improves immunity to ground potential and electrical interference.

Application Scenarios

Used between S400 I/O cabinets, remote field stations and control rooms where copper distance or electromagnetic noise is problematic. It is suited to power, metals, pulp and process installations retaining ABB MasterFieldbus hardware.

Technical data

Communication mediumMultimode fiber

Fiber size50/125µm or 62.5/125µm

ConnectorFSMA-1/905

Fiber arrangementDuplex link

Protection fuse200mA

Operating range0°C to +55°C

Storage range-25°C to +70°C

Relative humidity5–95% non-condensing

03 / BRAND & APPLICATIONS

Brand characteristics

Control-system breadth

ABB supports controllers, I/O and industrial communication as one architecture.

Noise immunity

Fiber links isolate fieldbus traffic from electrical interference.

Modular service

Individual communication modules are replaceable without redesigning the network.

Lifecycle documentation

Order codes preserve compatibility in mature S400 installations.

Application fields

Power generation

Remote I/O communication between electrical rooms.

Metals processing

Noise-resistant links around drives and heavy machinery.

Pulp and paper

Long-distance distributed process I/O.

Plant modernization

Retention of S400 I/O during staged upgrades.

Product references

ABB

PM861AK01

PM864AK01

PM866AK01

AI810

AO810

DI810

DO810

CI854AK01

CI840A

TU810V1

AI835A

AO845A

DI830

DO820

SD821

DSQC627

NMTU-21C

PM154

PM153

TC570

HIMA

F8650X

F8627X

F6217

F3236

F3330

F7126

F7553

F7133

F8652X

F8641

F60DIO24/16

F35

X-CPU 01

X-DI 32 01

X-DO 24 01

X-AI 32 01

Z7138

Z7128

K9203

BV7046-4

04 / SERVICE & POLICY

Quote

IDENTIFY

Provide DSTC454L, 5751017-R, fiber connector details and required quantity.

VERIFY

Confirm S400 I/O platform, MasterFieldbus topology, multimode fiber size, FSMA connectors and installed power arrangement before quotation.

QUOTE & DELIVERY

State the delivery destination, required date and preferred transport method. Availability, condition, warranty, lead time, protective packing and shipping terms will be checked before quotation.
