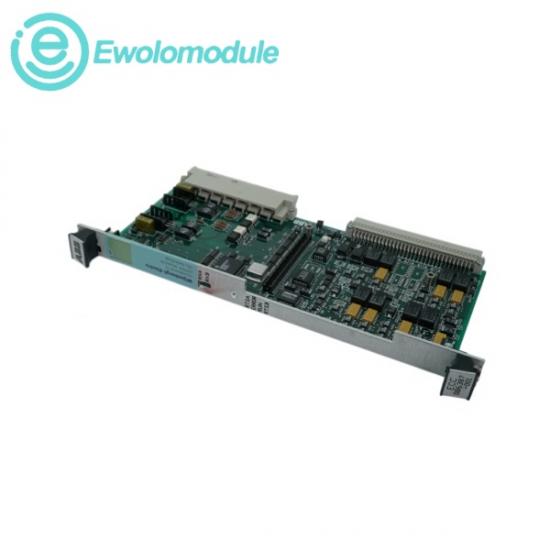

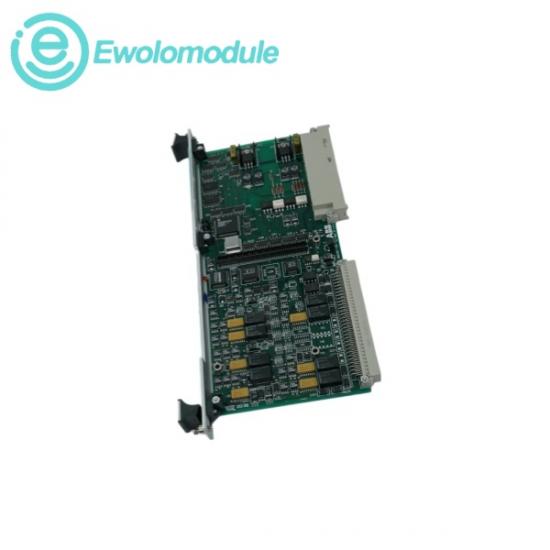

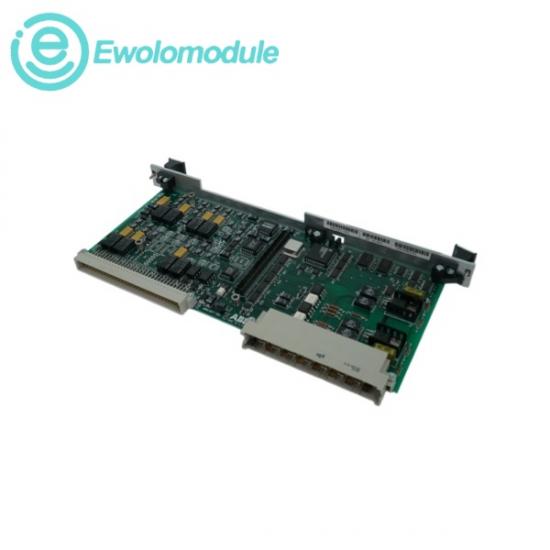

The ABB 086387-001 is a specialized Extension Cable Connection module manufactured as a rugged Printed Wiring Assembly (PWA) for heavy industrial automation. Installed at the end-column of a web-scanning frame, it serves as a central termination point that bridges the moving sensor carriage with the main system bus. This module ensures clear, uncorrupted data transmission of thickness, moisture, or color metrics from the production line by providing localized electrical grounding, signal isolation, and reliable power distribution in high-vibration factory environments.

Operating Voltage: Powered by standard internal logic-level buses (+5V DC, +12V DC, and +24V DC provided through system cabling)

Maximum Rated Current: Signal-level bus design, typically consuming less than 1.5 A total current draw

Operating Temperature: 0 °C to +55 °C (+32 °F to +131 °F)

Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)

Relative Humidity: 5% to 95% (non-condensing)
