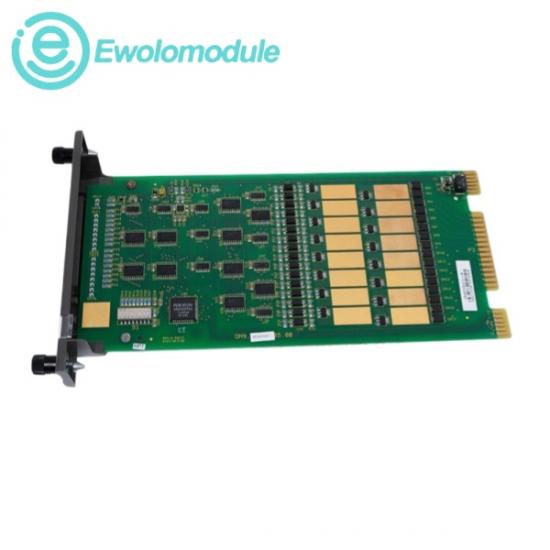

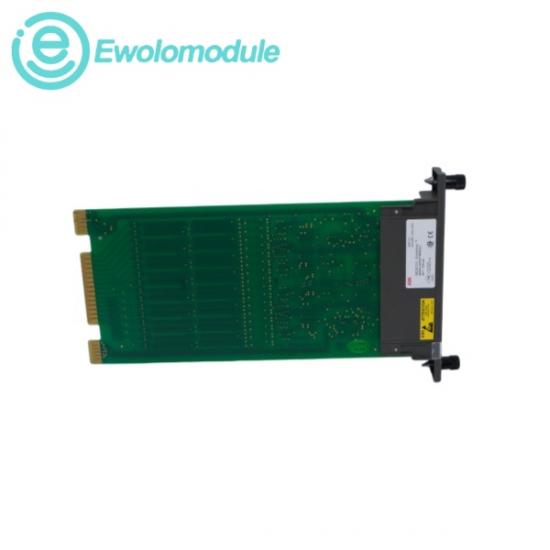

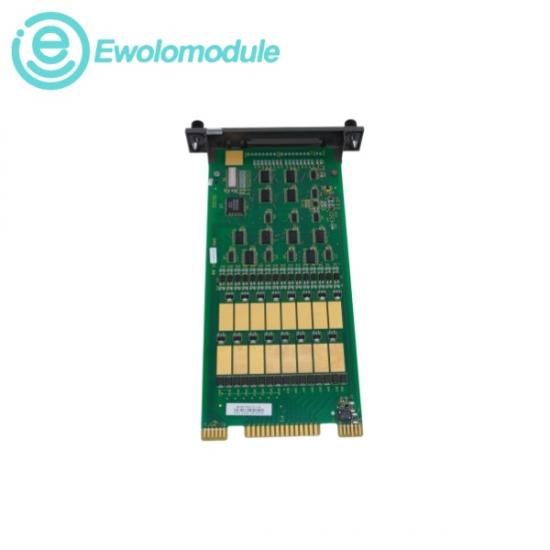

The ABB IMDSO14 is a heavy-duty, rack-mounted 16-channel digital output slave module designed to transmit discrete processing signals from an INFI 90 system backplane directly into physical plant applications. Acting as an intelligent solid-state switching actuator, this card is utilized by system control processors to toggle field machinery—including solenoid valves, alarm annunciators, visual indicators, relay coils, and motor contactors. Built with advanced electromagnetic interference (EMI) protection circuitry and high common-mode signal isolation, it reliably shields sensitive rack processing computers from dangerous voltage spikes and electrical noise on the factory floor.

Channel Density: 16 independent, non-isolated solid-state output points

Operating Field Voltage Range: Handles flexible load options across 24 VDC or 48 VDC voltage configurations

Maximum Output Current: Up to 0.5 A per channel under peak operations

Maximum Switching Capacity: Rated for 12 Watts at 24 VDC and 24 Watts at 48 VDC

Operating Temperature Limits: 0 °C to +60 °C (+32 °F to +140 °F) ambient cabinet deployment

Storage Temperature Boundaries: -40 °C to +85 °C (-40 °F to +185 °F)

Relative Humidity Matrix: 5% to 95% non-condensing industrial environments
