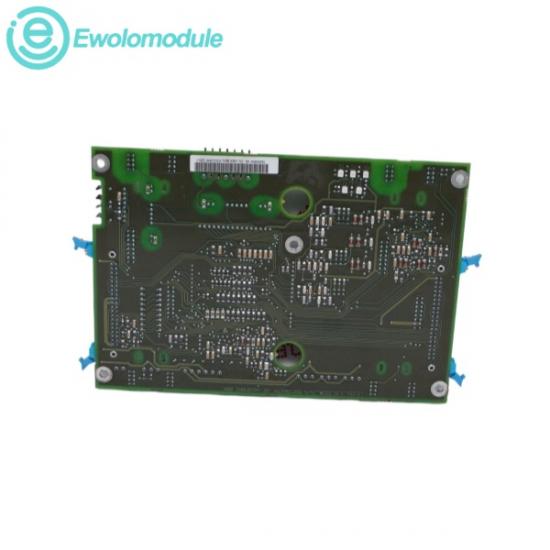

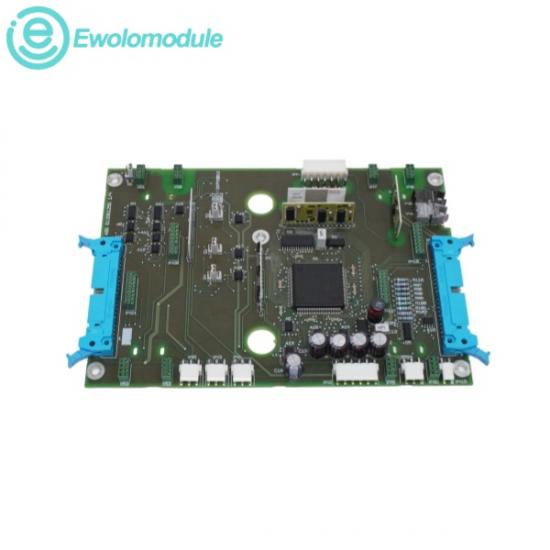

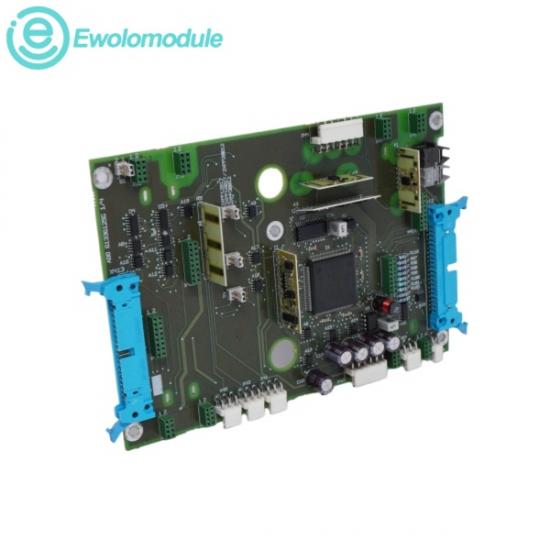

The ABB NINT-72C is a high-performance main circuit interface board engineered to manage core signal communications within variable frequency drives. Operating as the central intelligence bridge inside the drive assembly, the card receives macro-level control commands from upper-level processors and system architectures. It converts these analog, digital, and serial input variations into highly precise firing sequences and gate driver commands required to regulate the internal IGBT switching matrices. By performing real-time signal processing and galvanic signal buffering, the board secures stable motor speed curves, precise torque loops, and immediate system fault diagnostics.

Input Operational Logic Voltage:

24 VDC to 48 VDC logic system integration

Maximum Continuously Rated Current:

10 A

Ambient Operating Temperature:

-20°C to +60°C (-4°F to +140°F) continuous cabinet environment rating

Ambient Storage Temperature Range:

-30°C to +85°C

Industrial Applications

Typical Scenarios

IGBT Firing & Gate Control Loops:

Directly intercepts supervisory logic commands from central PLCs or DCS nodes via fieldbus networks, translating the telemetry into immediate micro-second switching modulations for the drive's main power inverter phase blocks.

Heavy Manufacturing & Metal Processing:

Managed inside high-power common DC bus drive configurations to sync speed parameters and torque balances for steel rolling mills, automated metal coil winders, and blast furnace ventilation arrays.

Pulp, Paper, & High-Speed Printing Plants:

Installed on multi-drive paper machine lines to regulate continuous winding drum tensions, feeder roll velocities, and heavy slitting equipment without web tearing.

Oil, Gas, & Chemical Distillation Facilities:

Regulates massive multi-stage product transfer pumps, heavy refinery fans, and continuous gas compressor units requiring high-reliability AC motor control curves.
