Product category: ABB SAMI MegaStar / SAMI Series

Product status: New and Original

Tariff code: 85371091

Product description:

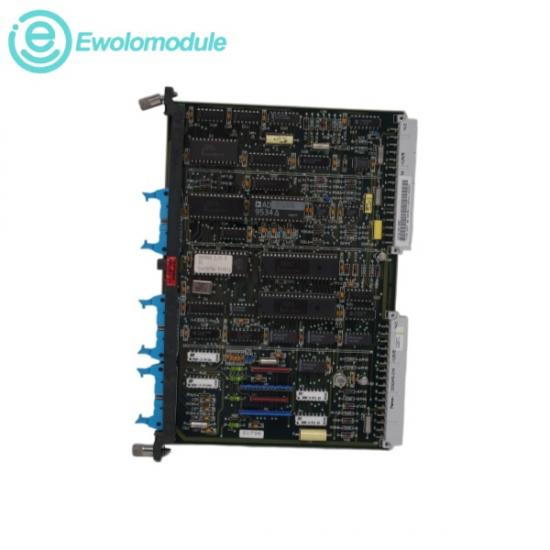

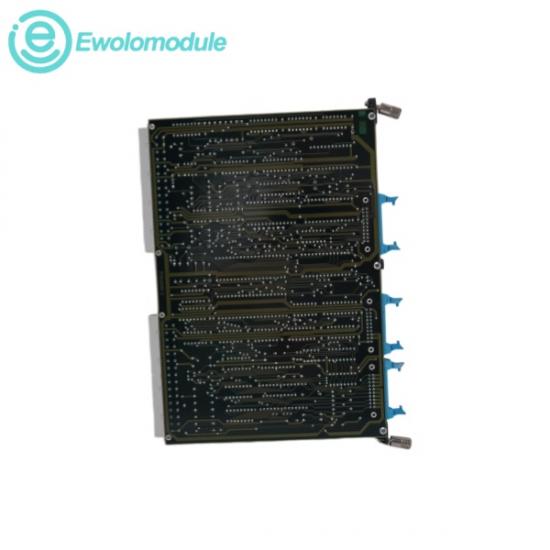

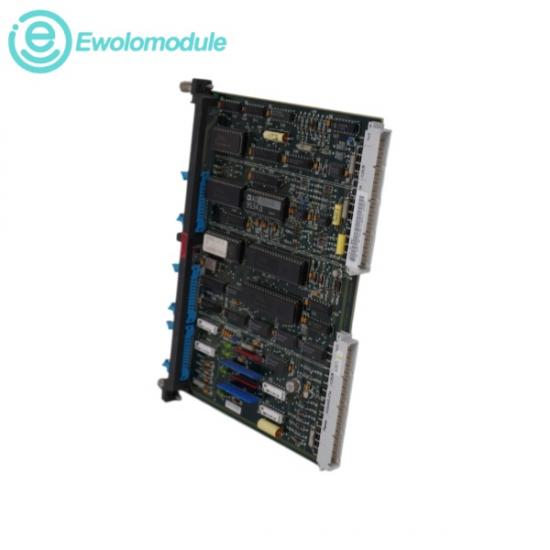

ABB SAFT185TBC SAFT 185 TBC 58119687 Terminal Block Board

The ABB SAFT185TBC SAFT 185 TBC 58119687 is an industrial terminal connection board. Engineered for robust cabling management, this ABB SAFT185TBC SAFT 185 TBC 58119687 organizes vital signaling paths to deliver reliable control connectivity across heavy drive systems.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

>>>Product Overview

The ABB SAFT185TBC SAFT 185 TBC 58119687 is a rugged industrial terminal block board assembly engineered to serve as a high-integrity signal connection hub within heavy-duty variable frequency drive systems. This board simplifies cabinet layout by centralizing internal control wiring, external sensor feed lines, and auxiliary command signals onto a single, heavily shielded PCB platform. Built with dedicated filtering and heavy-duty screw clamps, it eliminates the risk of intermittent wiring connections, providing organized data pathing and high galvanic isolation to safeguard sensitive internal processing cards against unpredictable industrial line spikes.

➟ Operational Voltage Limit: Typically handles auxiliary control line potentials and signaling loops up to 24V DC / 115V AC / 230V AC

➟ Current Carrying Capacity: Engineered for low-current signal and control pathing, generally supporting 2 A to 5 A

➟ Operating Ambient Temperature: Formulated for reliable performance inside enclosed drive cabinets ranging from 0 °C to +55 °C

➟ Storage Temperature Envelope: Endures non-operational shipping parameters between -40 °C to +70 °C

➟ Relative Humidity Limits: Operates safely within 5% to 95% non-condensing atmosphere constraints

>>>Product Applications

Signal Centralization:	Acts as the primary termination bridge that paths control signals, digital commands, and encoder feedback lines from the outside field into the drive's CPU rack.
VFD Cabinet Wiring Management:	Used inside SAMI drive cubicles to clean up internal cabling, transforming cluttered field wiring into organized, plug-and-play ribbon connections.
Heavy Utility Operations:	Extensively utilized in global infrastructure plants running legacy ABB SAMI frequency converter racks, including heavy mining conveyors, water pumps, and thermal power plant ventilation fans.

>>>Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
