Product information

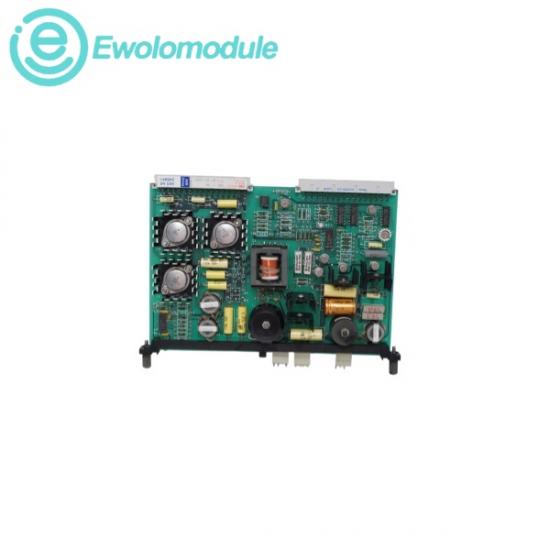

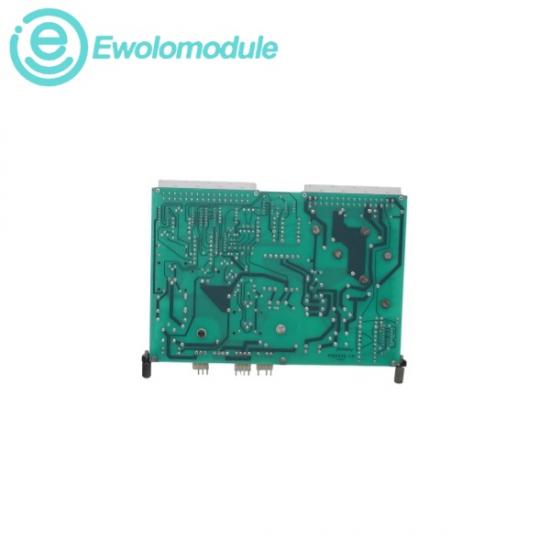

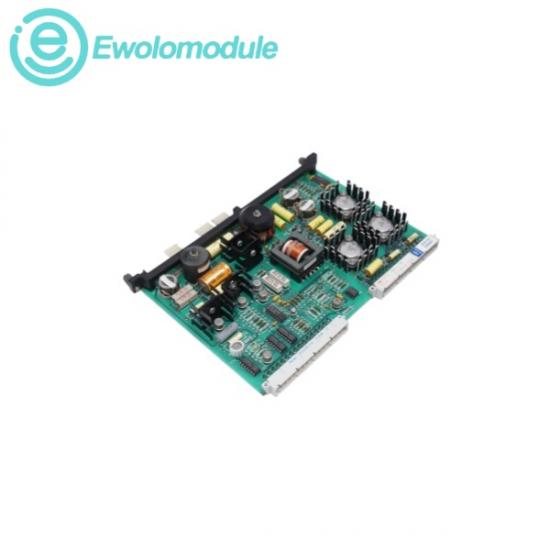

The ABB SAMC11 is a high-reliability internal Power Supply Board engineered to convert, regulate, and distribute clean logic power to downstream processing and internal transceiver gate-driver circuits within variable speed frequency inverters and industrial rectifiers. Bearing the primary engineering manufacturing part number 57171847, this multi-rail printed circuit board relies on integrated step-down transformational paths, voltage reference regulators, and filter capacitor arrays to smooth out line-level voltage sags or spikes. Its rugged industrial design ensures stable power distribution and precise logic voltage rails, safeguarding central controller boards against destructive electrical transients while maintaining overall drive uptime in heavy industrial plant environments.

Data

①　Operating Input Voltage: Designed to accept variable AC or DC bus power inputs matching standard internal multi-phase inverter bridge levels

②　Output DC Rails: +5V, +15V, and -15V DC to feed companion processor cards

③　Permissible Ambient Operating Temperature: 0°C to +40°C under recommended passive or forced control cabinet ventilation

④　Storage Temperature Range: -40°C to +70°C under dry, dust-free warehousing parameters

⑤　Relative Humidity Limits: 5% to 95% (strictly non-condensing atmospheric conditions)
