Product category: ABB DCS800 / DCS500 / DCS600 DC Industrial Drives Series

Product status: New and Original

Tariff code: 85371091

Product description:

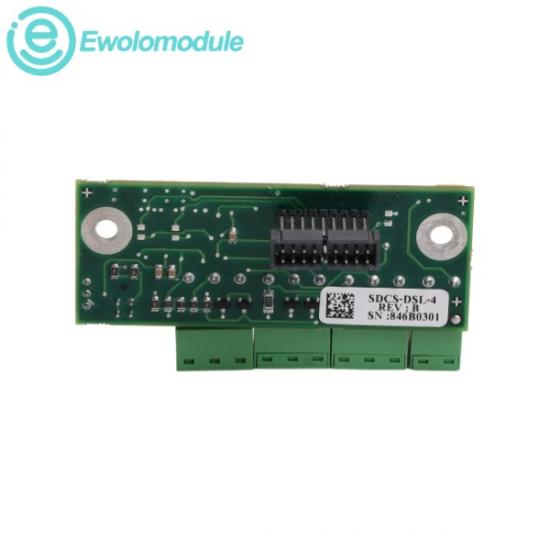

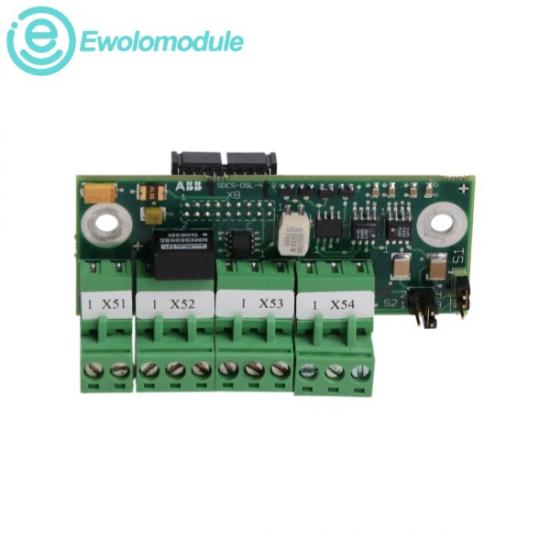

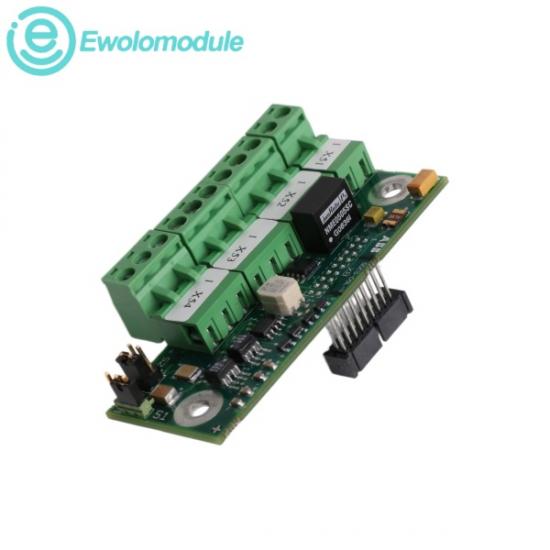

ABB SDCS-DSL-4 Communication Board

The SDCS-DSL-4 is a 24VDC CAN-bus serial communication interface adapter for DCS800 drives. Utilizing the SDCS-DSL-4 enables master-follower synchronization, field excitation control, and low-latency drive-to-drive networking.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

General Description

The ABB SDCS-DSL-4 is a digital signal link and communication board for the DCS800 DC drive series. It serves as the core communication and signal processing hub connecting the drive's main control unit (e.g., the AMC board) with the power section, I/O expansion boards, encoder interfaces, and other peripheral modules. Utilizing a high-speed protocol layered on CAN bus hardware, it bridges drive-to-drive architectures. This module expands control coordination by linking specialized field supplies, master-follower setups, and twelve-pulse operations directly to the central drive logic.

▹Operating Logic Power: Supplied via connection X51, delivering a steady output of 24V DC

▹Transmission Performance: Reaches data bandwidth speeds of 500 kBd

▹Bus Termination Capability: Features an onboard jumper (S1) to switch a 200 kOhm

▹Response Dynamics: Capable of executing high-speed localized data cycles with a rapid response time under 5 ms

▹Ambient Operating Temperature: Works across a standard industrial cabinet environment of 0 °C to 60 °C (32 °F to 140 °F)

Applications by Industry

Drive-to-Drive Syncing:	Establishes localized high-speed communication loops between neighboring converters for precision load distribution.
Master-Follower Controls:	Orchestrates real-time control loops where a secondary follower drive follows the speed/torque profile of a primary master drive.
12-Pulse Configuration:	Manages phase-shifted parallel converter arrangements to significantly mitigate harmonic current distortion back into the factory grid.
External Field Excitation Control:	Interfaces directly with DCF803-0016, FEX-425-Int, or DCF803-0035 excitation modules to regulate motor flux.
