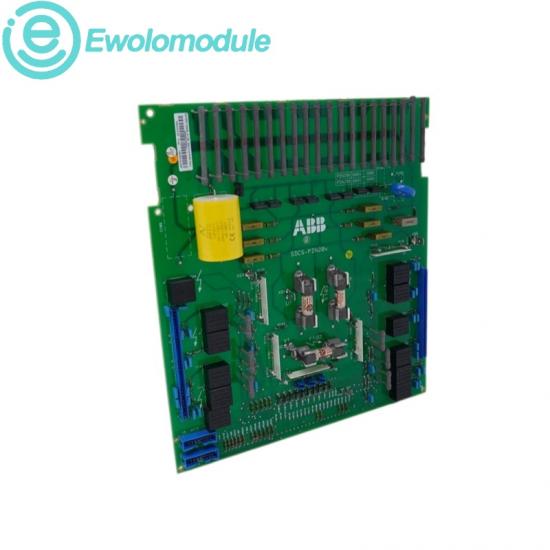

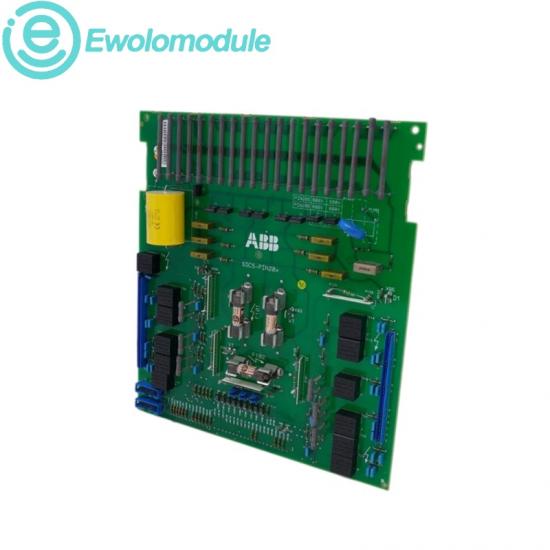

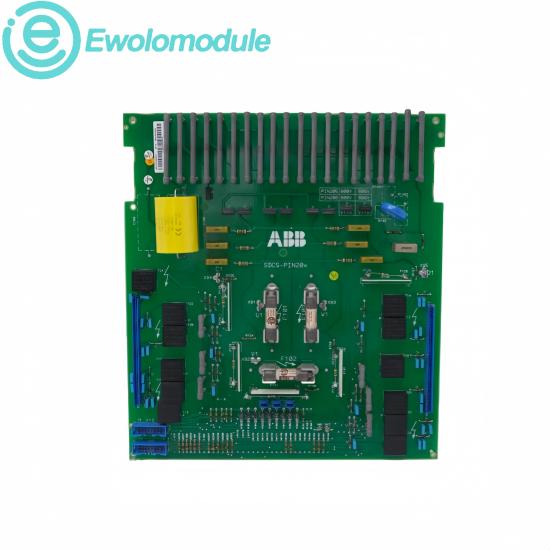

DCS600 POWER INTERFACE BOARD

ABB SDCS-PIN-205 3ADT310500R1

Prepared for documented industrial service where the complete type code, installed configuration and host compatibility are retained.

PRODUCT OVERVIEW

Thyristor converter interface

This board links low-voltage control electronics with the power bridge in documented ABB DCS600 converters. Confirm the full article code and bridge frame before replacement.

SYSTEM CONTEXT

DCS600 converter service

Use the installed converter rating, jumper arrangement and pulse wiring records to preserve the original power-stage configuration during commissioning.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL+86 17359287459

EMAILsales9@apterpower.com

Explore other ABB products →

02 / PERFORMANCE & APPLICATIONS

TECHNICAL PLANNING

Performance & Efficiency

The interface amplifies firing commands, supports mains synchronization and routes measurement signals between the controller and thyristor bridge.

Correct frame matching preserves pulse timing and avoids unnecessary conversion hardware during planned drive maintenance.

Application Scenarios

Applied in DC motor-drive service, converter rebuilds and controlled replacement of medium-frame power-interface assemblies.

Typical installations include metals processing, paper machines, cranes and other high-power variable-speed DC systems.

Technical data

CONVERTER CURRENT 100–700A	NOMINAL VOLTAGE 500V	BRIDGE TYPE 3-phase thyristor
OPERATING TEMPERATURE -25°C to +60°C	INTERFACE FUNCTION Pulse amplification	SYSTEM PLATFORM DCS600

Confirm all electrical limits, channel assignments and hardware revisions against the installed documentation before energizing.
