Product category: ABB Stromberg Drives / Sami MegaStar series

Product status: New and Original

Tariff code: 85371091

Product description:

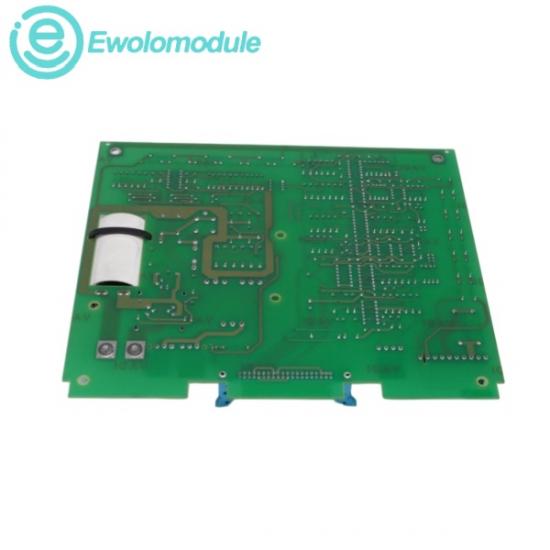

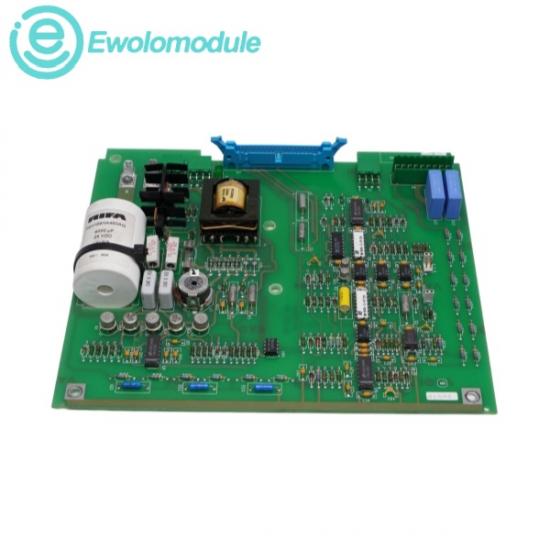

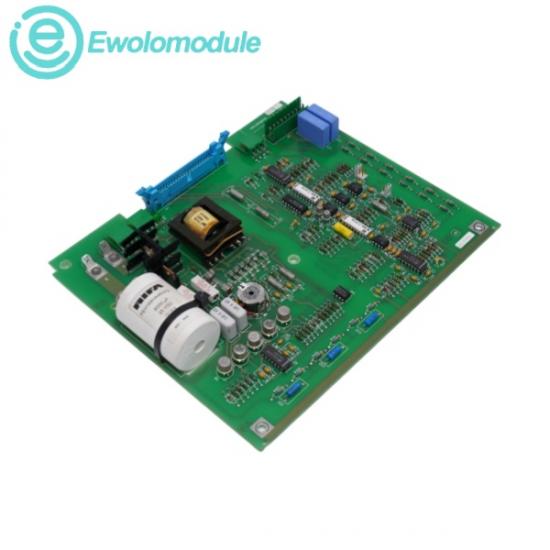

ABB SNAT617CHC SNAT 617 CHC 61037136 Control Module

The ABB SNAT617CHC SNAT 617 CHC 61037136 is an industrial chopper control board. Engineered for robust drive protection, this ABB SNAT617CHC SNAT 617 CHC 61037136 processes rapid high-voltage signals to deliver accurate dynamic braking oversight across automated systems.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

>>>Product Overview

The ABB SNAT617CHC SNAT 617 CHC 61037136 is a versatile, high-performance industrial control module serving as a core component in ABB's distributed control systems (DCS) and drive systems. Acting as a dedicated processing unit within a drive's power section, it monitors and controls braking choppers or dynamic energy absorption sub-circuits. By executing precision vector regulation algorithms and managing high-speed switching frequencies, it ensures stable bus voltage and prevents overvoltage trips during heavy motor deceleration phases.

➟ Power Supply Voltage: Typically operates via standard 24V DC

➟ Processor Architecture: Features an onboard 486 MHz embedded micro-processing unit

➟ System Memory Capacity: Outfitted with 128 MB RAM and 16 MB Flash ROM

➟ Operating Ambient Temperature: Engineered to withstand plant floor conditions ranging from -20 °C to +55 °C

➟ Channel Integration Capacity: Manages 16 Analog Inputs, 16 Analog Outputs, 32 Digital Inputs, and 32 Digital Outputs

➟ Maximum Power Dissipation: Consumes up to 15 Watts

>>>Product Applications

Dynamic Braking Oversight:	Manages energy dissipation and handles switching gates for brake choppers in large AC motor systems.
Inverter Protection Circuits:	Monitors intermediate DC link voltages to trigger fast overvoltage absorption circuits, avoiding hardware damage.
Heavy Automated Production Lines:	Frequently utilized in paper mills, steel processing plants, and metal-forming machine tools where huge kinetic loads must be stopped smoothly.

>>>Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
