Quick Details

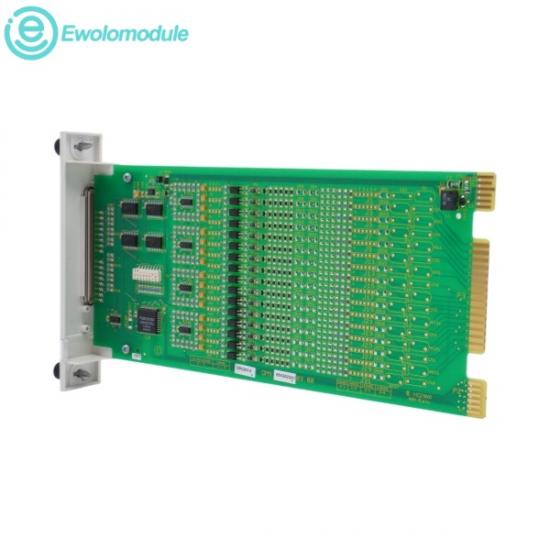

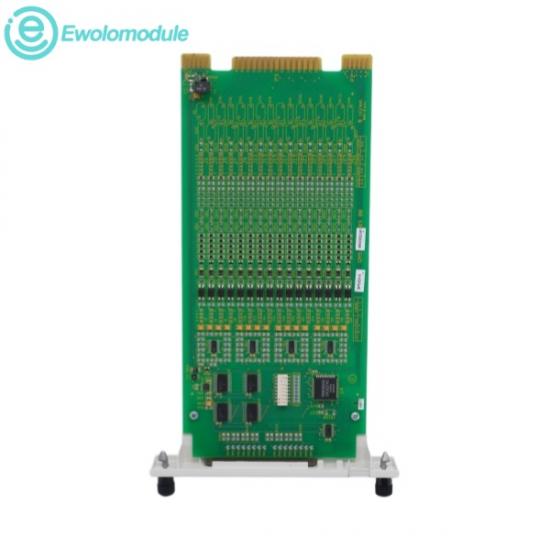

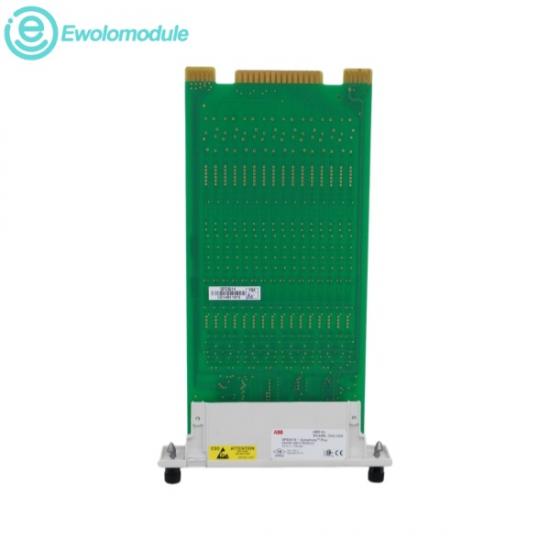

The ABB SPDSI14 Digital Input Module is an industrially hardened, micro-processed electronic circuit board designed to interface field discrete switches directly with a distributed control system. It features 16 independent digital input channels that monitor raw on/off conditions from process machinery. The module incorporates robust electrical isolation to decouple vulnerable backplane processing circuitry from field overvoltages and grounding loops. By utilizing high-accuracy digital signal processing, it eliminates localized line noise and mechanical contact bounce, providing synchronized, real-time status matrix data to central controllers to maintain automated sequence loops.

l Input Voltage Permissible Window: Operates reliably within a broad threshold variance from 24 VDC to 60 VDC.

l Number of Channels: 16 dedicated digital (discrete) input channels.

l Input Isolation Voltage: Features optocouplers delivering a continuous isolation barrier up to 1500 VDC.

l Typical Current Consumption: Draws a low continuous current of 95 mA from the 5V backplane line under standard full-channel operational status.

l Operating Temperature Range: Specially rated for reliable cabinet operations spanning from 0°C to 55°C (32°F to 131°F).

Product Applications

l Valve Position Supervision: Captures binary status feedback directly from micro-switches or proximity sensors attached to remote process valves.

l Machinery Interlock Tracking: Connects to field safety pushbuttons, trip sensors, and emergency stop circuits to relay automated sequence shutdown triggers.

l Motor Control Status Interfacing: Gathers real-time auxiliary contact status (running/stopped/tripped flags) from large motor starters and industrial contactor cabinets.

l Sequence of Events Recording: Feeds high-precision binary state transitions directly into the ABB Symphony Plus telemetry architecture for plant disturbance logging.

Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
