I/O TERMINATION PROFILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

ABB · S800 I/O

ARTICLE NUMBER

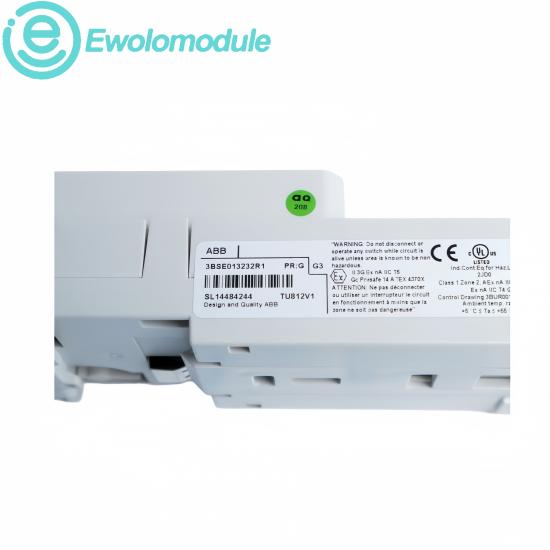

TU812V1 3BSE013232R1

OFFICIAL PRODUCT NAME

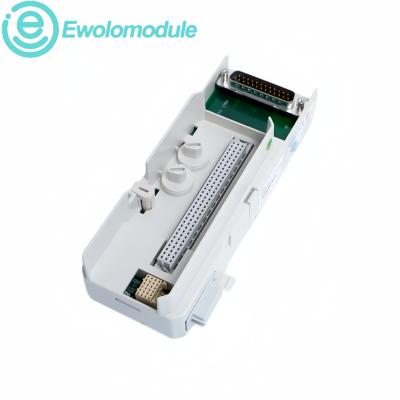

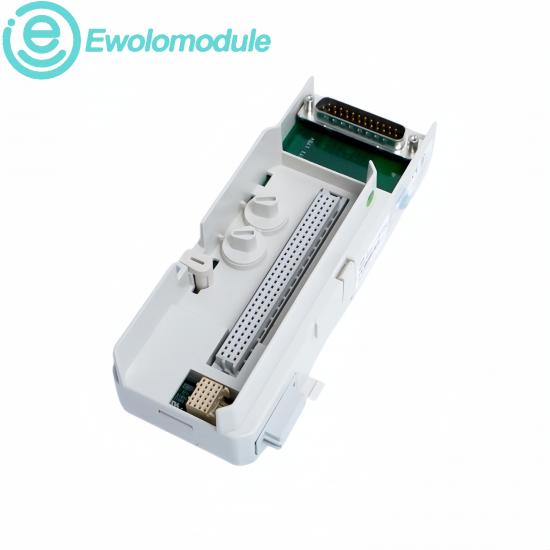

S800 I/O Compact MTU

16 SIGNALS

25-PIN D-SUB

50 V

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

ABB S800 I/O · COMPACT MODULE TERMINATION HARDWARE

TECHNICAL & OPERATING GUIDE

CALL +86 17359287459 EMAIL sales9@apterpower.com

TECHNICAL SPECIFICATIONS

Termination-unit identification and connection details

S800 I/O COMPACT MTU HARDWARE

Manufacturer

ABB

Article number

3BSE013232R1

Type designation

TU812V1

Product type

Compact module termination unit

System family

S800 I/O

Signal connections

Rated voltage

50 V

Process interface

25-pin male D-sub

Channel current

2 A maximum

Process current

5 A maximum

Mechanical keying

36 configurations

Mounting

DIN rail / both directions

OPERATING ENVIRONMENT

Install the MTU on grounded DIN rail in a protected S800 I/O cabinet. Maintain 0 to +55 C for horizontal mounting or the documented lower vertical limit, preserve mechanical key settings and isolate ModuleBus and field power before service.

LOCATIONProtected S800 I/O cabinet

TEMPERATURE0 to +55 C horizontal

PROTECTIONIP20 / 5 to 95% RH

KEYING CHECK

D-SUB MATCH

POWER ISOLATION

MONITORING & CONTROL

The passive MTU routes field signals and distributes ModuleBus to the installed I/O module and adjacent position. Commissioning should confirm article number, D-sub pinout, key position, module compatibility, field current limits and stable bus continuity.

MODULE MATCHConfirm compatible S800 I/O type

FIELD SIGNALSVerify all assigned D-sub pins

KEY POSITIONCheck both mechanical keys

MODULEBUSReview continuity to next MTU

SET KEYS → MOUNT MTU → CONNECT D-SUB → SEAT MODULE

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

ABB S800 I/O hardware combines modular field termination, mechanical keying and documented article numbers to support traceable cabinet engineering, controlled replacement and flexible process-I/O expansion.

MODULAR I/O

KEYED

SERVICEABLE

APPLICATION FIELDS

Applied in continuous-process plants, utilities, power generation, pulp and paper, metals and infrastructure systems using ABB 800xA or Compact Product Suite remote I/O.

PROCESS CONTROL

POWER & UTILITIES

REMOTE I/O
