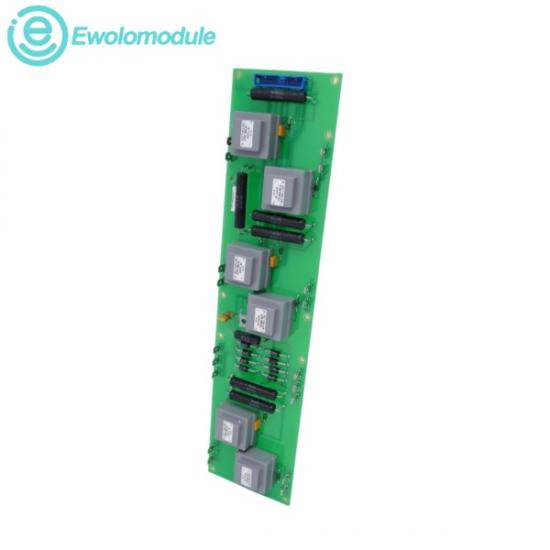

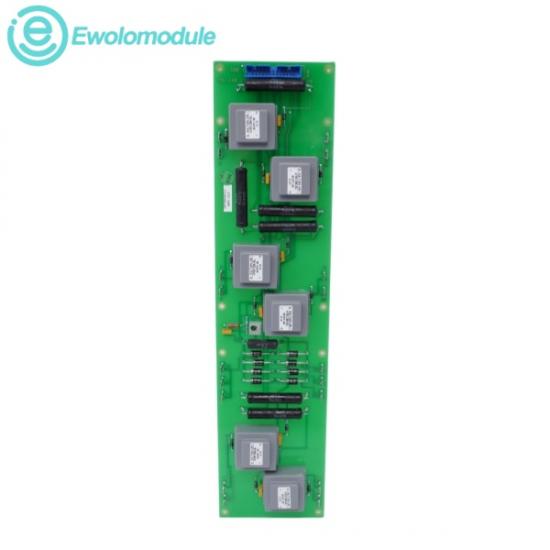

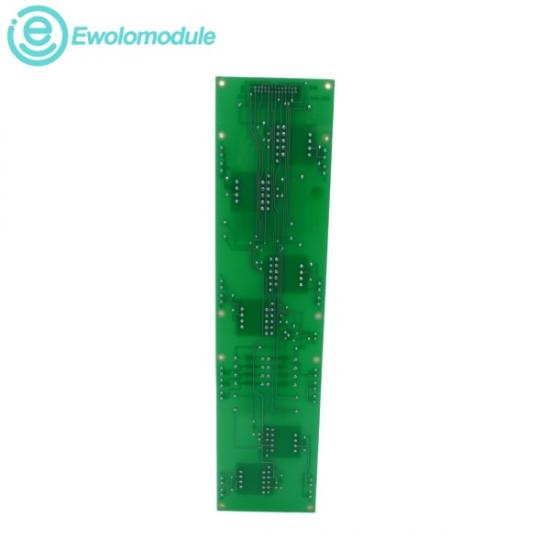

ABB YT296000-MZ YXU149B YXU 149B Pulse Transformer Unit

The ABB YT296000-MZ YXU149B YXU 149B is a high-dielectric pulse transformer module managing isolated gating signals. Delivering high-peak current spikes under 55°C, the durable ABB YT296000-MZ YXU149B YXU 149B module prevents industrial thyristor grid back-feed.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

→General Description

The ABB YT296000-MZ YXU149B YXU 149B is a heavy-duty industrial pulse transformer and interface unit designed to facilitate high-speed, isolated trigger signal conditioning inside power electronics cabinets. Its primary function is to safely and accurately transmit low-voltage Pulse Width Modulation (PWM) control signals from the drive's control board to the gate of high-power IGBT or IGCT modules, which operate at several thousand volts. It provides the necessary galvanic isolation to protect the sensitive low-voltage control circuitry from the high voltages and electrical noise present in the power section, ensuring precise switching and system reliability.

1) Operating Input Signal Voltage: Typically handles 15V DC to 24V DC logic gate-trigger levels

2) Signal Output Current Rating: Up to 1.5A to 3.0A peak current capability

3) Ambient Operating Temperature: 0°C to +55°C (+32°F to +131°F) continuous cabinet environment rating

4) Storage Temperature Limits: -40°C to +75°C (-40°F to +167°F) non-operational preservation parameters

5) Atmospheric Operating Humidity: 5% to 95% non-condensing relative atmospheric humidity limits

→Real-World Applications

v Thyristor / SCR Grid Gate Triggering: Deployed inside synchronous motor starters and high-power excitation systems to feed isolated firing pulses into large thyristor bridges.

v High-Voltage Converter Isolation: Utilized as a protective electrical barrier to block massive power-line back-feed or surge spikes from traveling back to central processing racks.

v Heavy Duty AC/DC Drive Maintenance: Installed as an identical, rugged drop-in spare component to ensure accurate pulse-shaping loops inside active heavy industrial manufacturing plants.
