Product category: ABB Drives & Large Power Electronics Control Accessories Series

Product status: New and Original

Tariff code: 85371091

Product description:

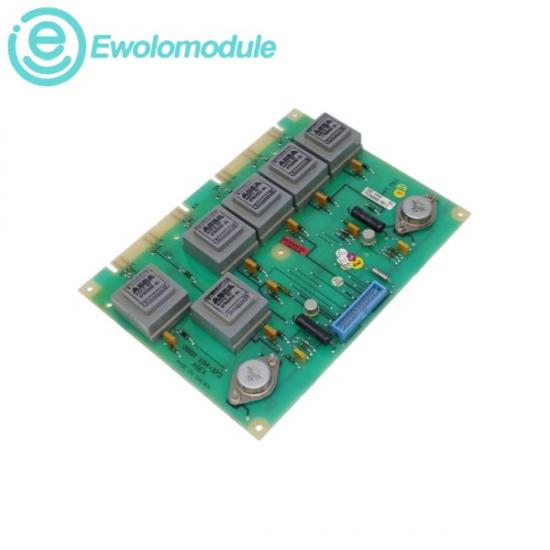

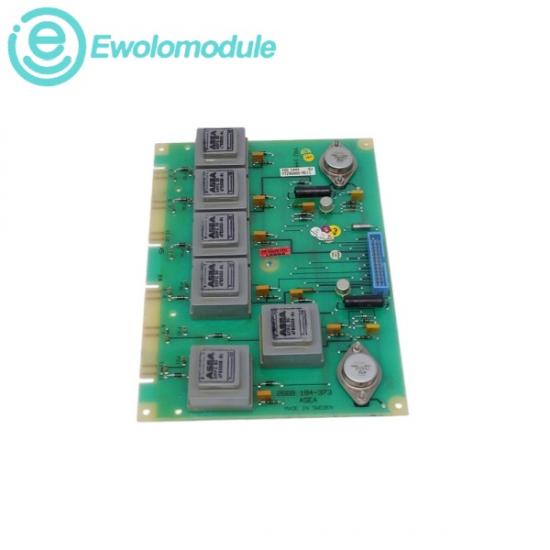

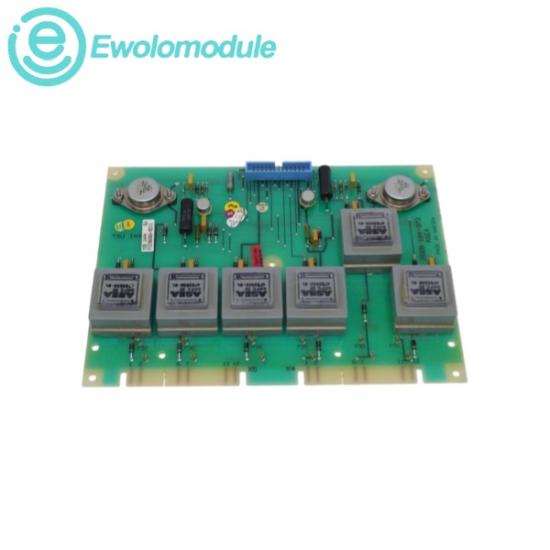

ABB YXU144 YT296000-MC YXU 144 Pulse Transfer Unit

The ABB YXU144 YT296000-MC YXU 144 is an industrial pulse transformer module handling 24V DC logic commands. Delivering isolated high-peak current firing pulses under 55°C, the ABB YXU144 YT296000-MC YXU 144 ensures reliable, safe thyristor synchronization.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

General Description

The ABB YXU144 YT296000-MC YXU 144 is an industrial-grade high-frequency pulse transformer board assembly engineered to manage precise grid-firing synchronization for heavy power electronics components. Its primary function is to safely and accurately transmit low-voltage PWM control signals from the drive's control board to the gate of high-power IGBT or IGCT modules, which operate at several thousand volts. Its robust design stabilizes switching transitions, shapes trigger signals, and actively dampens high-energy electromagnetic interference (EMI) and electrical feedback loops within harsh manufacturing cabinet environments.

l Input Operational Voltage: Operates efficiently on standard 15V DC to 24V DC logic gate-trigger command levels

l Peak Transmitted Current: Supports rapid transient peak currents up to 3.0 Amps

l Ambient Operating Temperature: 0°C to +55°C (+32°F to +131°F) continuous cabinet installation standard

l Atmospheric Humidity Range: 5% to 95% non-condensing relative operating humidity limits

Field Applications

ü Thyristor / SCR Firing Synchronization: Deployed inside synchronous motor starters and high-power converter panels to route precise, high-speed triggering pulses to heavy-duty valve blocks.

ü Delicate Logic System Safeguarding: Functions as an effective electrical buffer that physically segregates high-voltage power components from sensitive digital processor buses.

ü Large-Scale Drive System Retrofits: Installed as a direct, hot-swappable replacement card to ensure signal stability and loop accuracy in active metal refining, chemical, or mining infrastructure.
