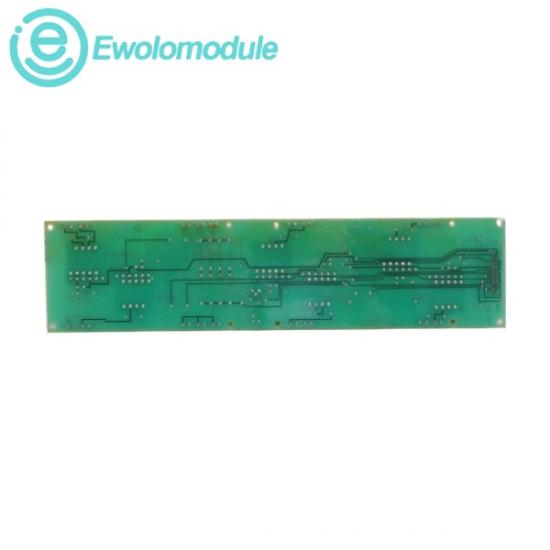

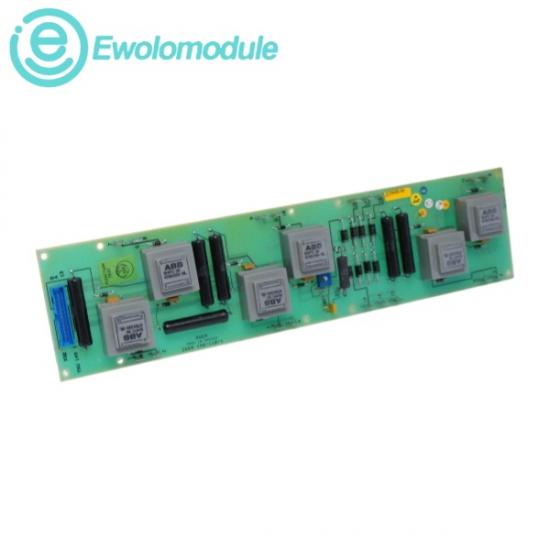

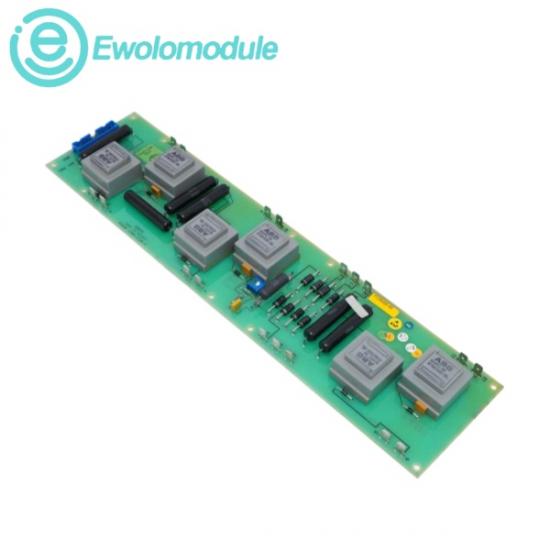

ABB YXU149 YT296000-RX Pulse Transformer Unit

The ABB YXU149 YT296000-RX is an industrial pulse transfer unit handling 24V DC logic inputs. Delivering crisp isolation firing signals under 60°C, the ABB YXU149 YT296000-RX ensures secure, stable thyristor control.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

General Description

The ABB YXU149 YT296000-RX is a carrier-grade pulse transfer and signal conditioning board engineered to supervise the gate-firing synchronization of high-voltage semiconductor components. Operating as an electrical isolation barrier, it uses onboard high-frequency pulse transformers to safely pass microsecond trigger pulses from low-voltage CPU microcontrollers to heavy industrial thyristors or SCR grids. Its advanced layered physical architecture blocks high-energy back-feed surges and attenuates destructive electromagnetic interference inside high-power electrical enclosures.

l Input Operational Voltage: Configured to accept 15V DC to 24V DC logic gate-trigger levels directly

l Transient Output Current Peak: Engineered to drive transient peak current spikes up to 3.0A

l Ambient Operating Temperature: -10°C to +60°C (+14°F to +140°F) continuous cabinet placement standard

l Atmospheric Humidity Threshold: 5% to 95% non-condensing relative operating humidity limits

Field Applications

ü Thyristor / SCR Firing Synchronization: Installed within heavy-duty power rectifiers and synchronous motor controllers to deliver synchronized gate pulses.

ü Control Room Signal Isolation: Acts as a specialized protective bridge to prevent volatile high-voltage grid back-feed from damaging delicate control processors.

ü Large Variable Speed Drive Maintenance: Deployed as an identical drop-in spare component to ensure accurate pulse-shaping loops inside active mining, metallurgy, or water treatment plants.
