PRODUCT DETAILS

1336 SERIES

ALLEN-BRADLEY · INDUSTRIAL DRIVE HARDWARE

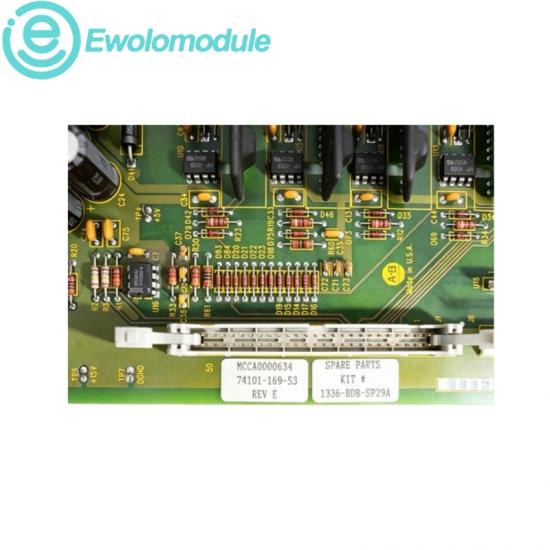

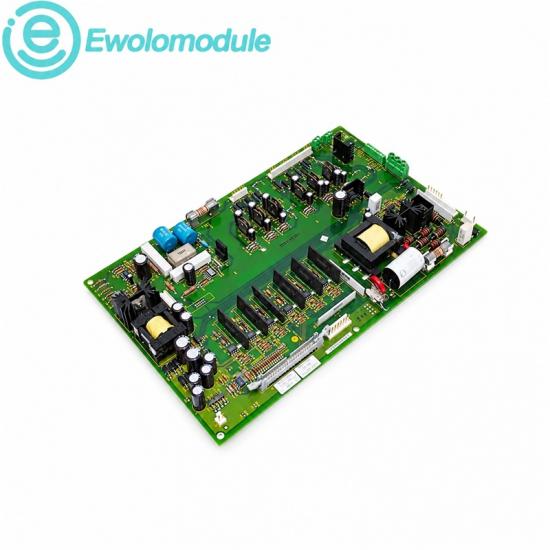

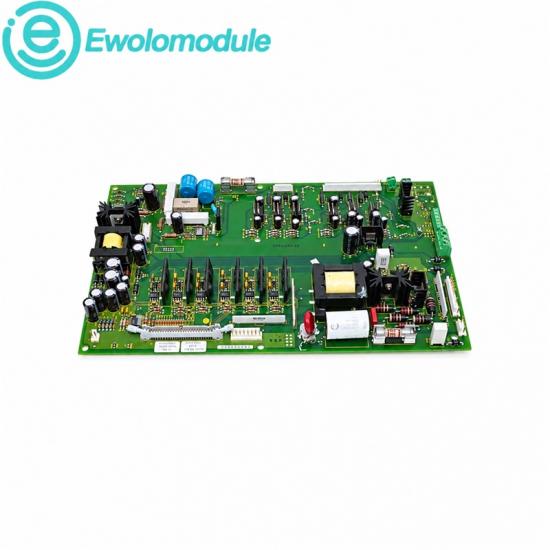

1336-BDB-SP29A 74101-169-53
Gate Drive Board

Service-replacement gate-driver circuit board for compatible Allen-Bradley drive hardware.

FUNCTION POSITION

Power-stage interface

Links the host drive control logic with the installed power-switching stage.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL

+86 17359287459

sales9@apterpower.com

Explore other Allen-Bradley products →

FIRMWARE, UPDATES & CONNECTIVITY

SERVICE PLANNING

Firmware & Updates

This gate-driver board has no user-loadable application firmware. Service control is based on hardware revision and host-drive compatibility rather than a software download. Record the installed board revision and connector arrangement before removal, retain the service history and use the applicable drive documentation when evaluating a replacement.

Communications & Connectivity

The board is not a plant-network or fieldbus adapter. Its connections are internal to the drive and carry gate-command and power-stage interface signals through dedicated plugs and harnesses. Preserve cable routing and connector keying; any external communication protocol remains a function of the host drive and its separate option hardware.

Technical data

Drive voltage class

460 VAC

Drive power rating

75 HP

Lifecycle status

Obsolete legacy part

Parts-list successor

1336-BDB-SP29D

BRAND CHARACTERISTICS & APPLICATION FIELDS

SYSTEM CONTEXT

Brand characteristics

Legacy-drive support

1336 spare assemblies help retain established adjustable-frequency drive installations.

Defined identities

Catalog and board-assembly numbers provide two checkpoints for replacement control.

Service literature

Published parts and service documents map board functions and lifecycle successors.

Drive-specific fit

Selection remains tied to voltage class, horsepower, frame, revision and connector layout.

Application fields

Process production

Maintenance of installed 460 VAC drive systems on continuous production lines.

Material handling

Conveyor, feeder and transfer equipment using legacy variable-speed control.

Pumps and fans

Plant utility drives where the original motor and cabinet arrangement are retained.

Brownfield service

Like-for-like repair programs with documented frame and board compatibility.
