ALLEN-BRADLEY · ULTRA 100

CALL +86 17359287459 EMAIL sales9@apterpower.com

ARTICLE NUMBER

1398-DDM-005

RATED CLASS 500 W

OFFICIAL PRODUCT NAME

Universal Servo Drive

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

TECHNICAL PROFILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

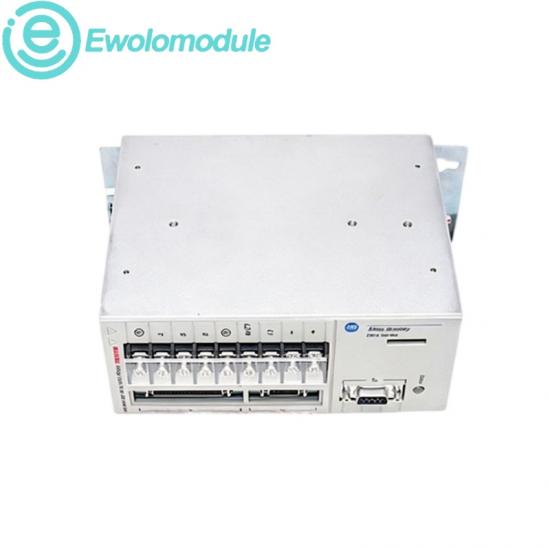

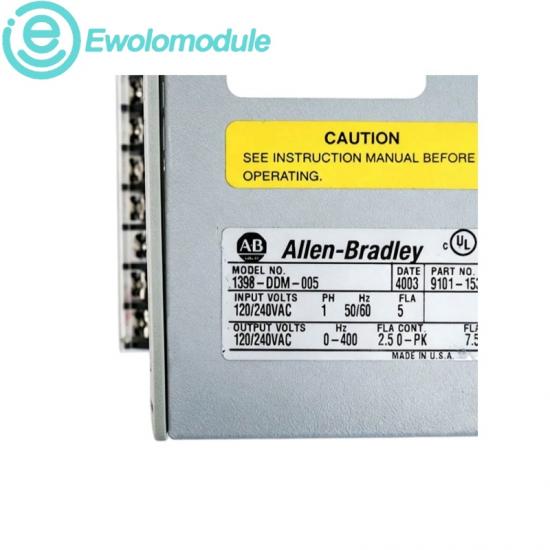

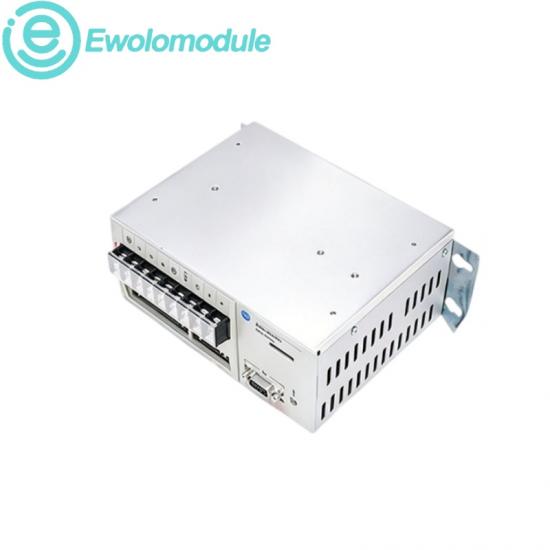

The 1398-DDM-005 is an Allen-Bradley ULTRA 100 universal servo drive for single-axis motion applications. Its configurable control modes and serial interface support drive commissioning, machine synchronization and installed-base maintenance.

INPUT VOLTAGE 100-240 VAC	INPUT FREQUENCY 47-63 Hz	INPUT CURRENT 5 A RMS	BUS VOLTAGE 141-339 VDC
PEAK OUTPUT CURRENT 7.5 A	CONTINUOUS CURRENT 2.5 A	POWER OUTPUT 0.3 / 0.6 kW	SERIAL INTERFACE RS-232 / RS-485

OPERATING ENVIRONMENT

Designed for vertical mounting inside a ventilated industrial enclosure operating from 0°C to +55°C with specified cooling clearances and clean airflow.

MONITORING & CONTROL

Supports torque, velocity and positioning control with serial commissioning, status indication and configurable digital and analog interfaces.

BRAND CHARACTERISTICS

Allen-Bradley motion hardware combines configurable servo functions, documented electrical interfaces and established service procedures for industrial drive systems.

SERVO CONTROL

CONFIGURABLE I/O

DRIVE SERVICE

APPLICATION FIELDS

Used in packaging, material handling, semiconductor equipment and coordinated machinery requiring precise single-axis motion control.

MOTION CONTROL

MACHINE AXIS

POSITIONING
