ALLEN-BRADLEY · XM-120 DYNAMIC MONITORING

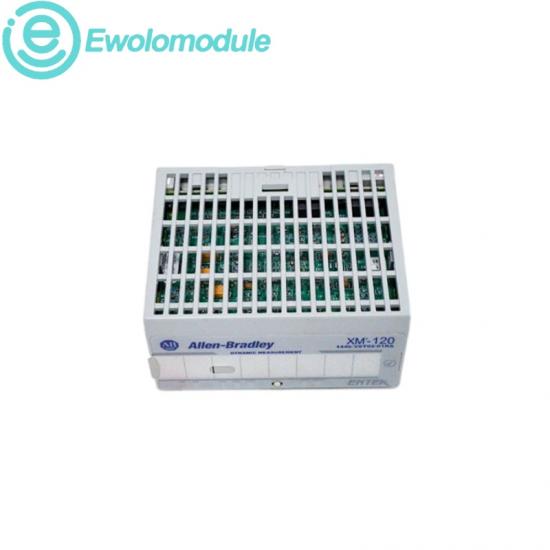

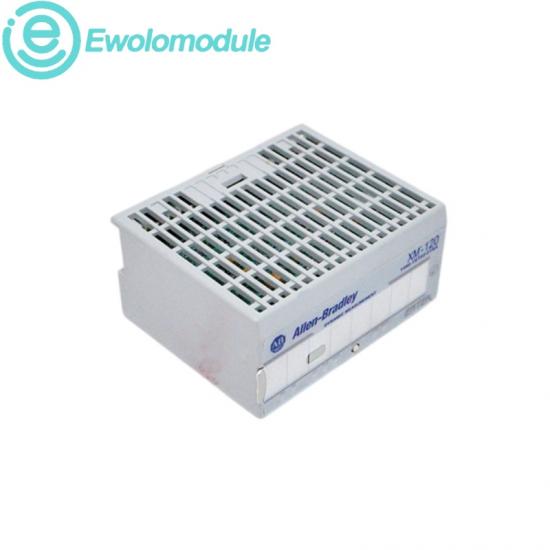

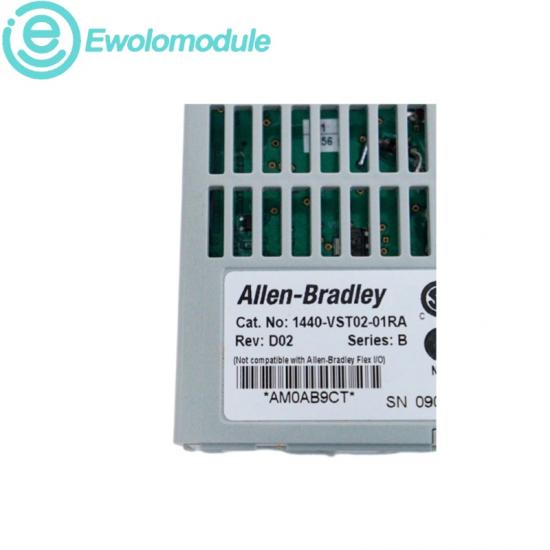

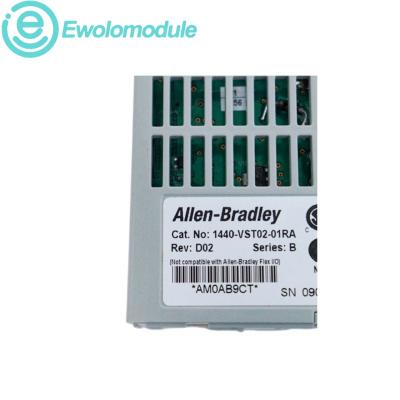

Allen-Bradley 1440-VST02-01RA XM-120 Dynamic Measurement Module
A DIN-rail dynamic measurement module for two vibration channels plus tachometer-based speed and phase reference.
|
|
|
|
MODULE CLASS
Dynamic measurement
|
|
CONTROL ROLE
Machine vibration and speed monitoring
|
|
DYNAMIC MACHINE CONDITION MONITORING
Two-channel vibration measurement with tachometer reference
XM-120 processes dynamic transducer signals, machine speed and phase data for distributed condition monitoring.
Official technical data
| Product type |
Dynamic measurement module |
Series |
XM-120 |
| Dynamic channels |
2 |
Tachometer input |
1 |
| Supply |
24 V DC, 0.3 A |
Measurements |
Vibration / speed / phase |
| Terminal base |
1440-TB-A |
Communication |
DeviceNet |
| Certification |
Class I, Division 2 |
Catalog number |
1440-VST02-01RA |
|
Safety & Compliance
De-energize the 24 V supply and machine-monitoring circuits before servicing the module. Verify terminal-base wiring, sensor bias, relay circuits and hazardous-location requirements before recommissioning.
|
Performance & Efficiency
Two dynamic channels and a tachometer reference consolidate vibration, speed and phase monitoring close to the machine. Distributed communications and local status simplify integration and diagnostic work.
|
|
Brand characteristics
Allen-Bradley XM modules use distributed measurement, DIN-rail mechanics and networked diagnostics for scalable rotating-equipment monitoring.
| Modular monitoring |
Dedicated modules address defined vibration and process duties. |
| Local diagnostics |
Front indicators support commissioning and troubleshooting. |
| Network integration |
DeviceNet communication links measurements to control systems. |
|
Application fields
1440-VST02-01RA monitors vibration and rotational behavior on general-purpose and high-performance machinery.
| Rotating equipment |
Vibration and phase monitoring on pumps and motors. |
| Turbomachinery |
Dynamic measurement for high-speed machine trains. |
| Predictive maintenance |
Distributed condition data for maintenance planning. |
|
