ALLEN-BRADLEY PRODUCT IDENTITY
170947 170948 129708-02 M003325108

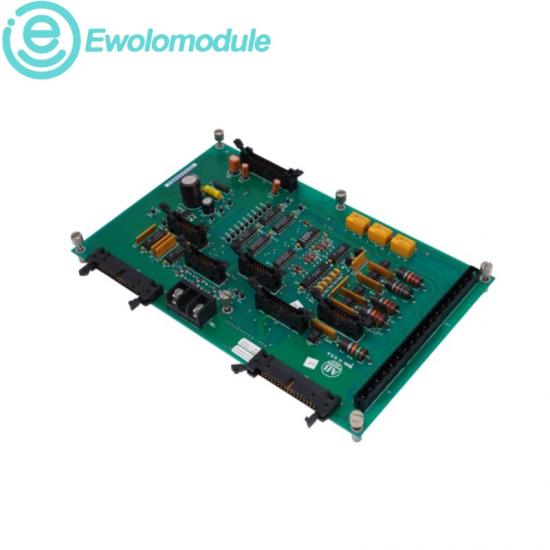

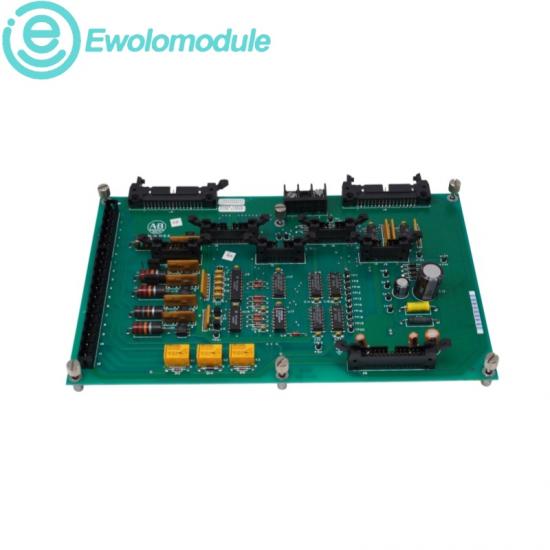

Power Stage Interface Board
| Product snapshot |
A drive-internal interface assembly linking control logic with the power stage for gate-command coordination and status feedback. |
| 02 |
CERTIFICATIONS, STANDARDS & COMPATIBILITY |
ENGINEERING REVIEW |
|
Certifications & Standards
Use every printed reference—170947, 170948, 129708-02 and M003325108—with the applicable Allen-Bradley drive documentation. The complete drive enclosure and installation determine the governing standards.
Isolate all supplies and discharge the DC link before service. Retain connector keying, insulation barriers and approved board handling practices; no undocumented certification is assumed.
|
Compatibility & Interoperability
The board is associated with documented Allen-Bradley drive power-stage assemblies. Confirm the drive family, frame, power rating, hardware revision and mating boards before replacement.
Do not select by the general interface-board description alone. Record existing connections and parameters, compare all cross-references and complete static checks before applying power.
|
Technical data
| Assembly class |
Power-stage interface |
Primary reference |
170947 |
| Spare reference |
170948 |
Board number |
129708-02 |
| Alternate ID |
M003325108 |
Mounting |
Internal drive chassis |
Verify the exact order code, installed configuration and applicable project documentation before commissioning.
