01 / PRODUCT DETAILSPOINT GUARD I/O

Allen-Bradley

1734-IE4S

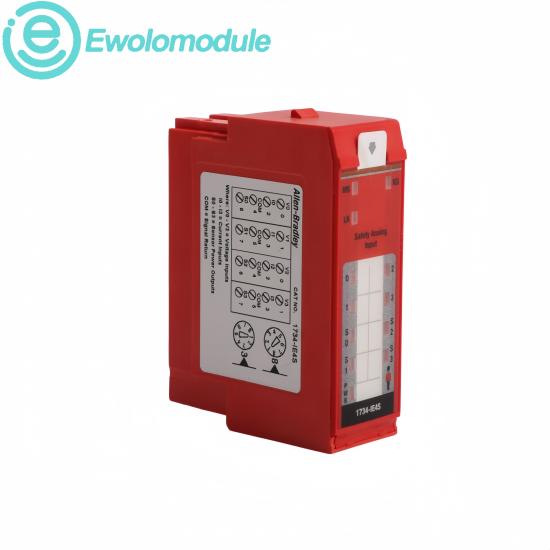

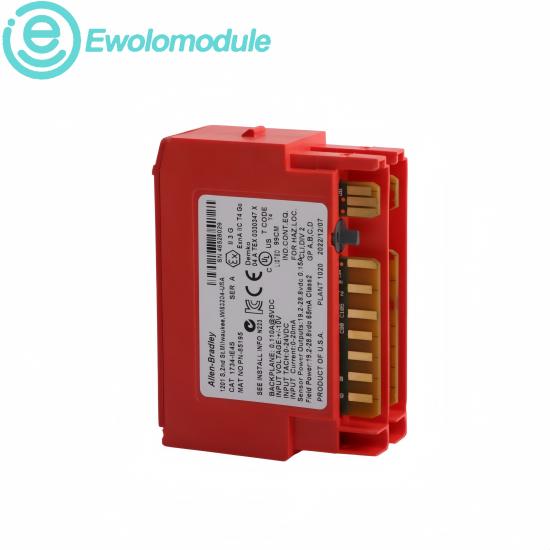

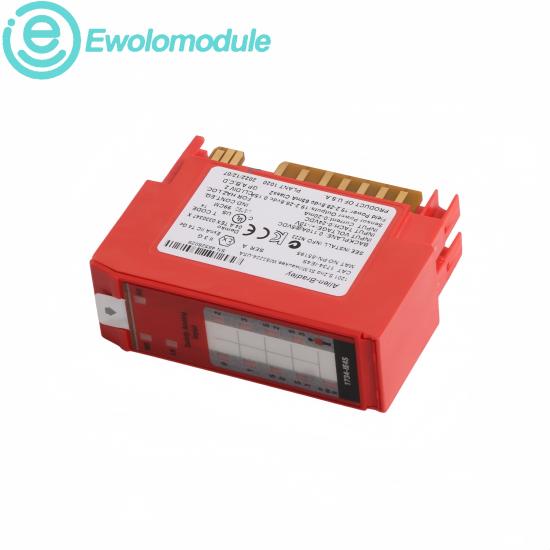

Safety Analog Input Module

PRODUCT OVERVIEW

Four-channel safety analog acquisition for POINT I/O systems

The 1734-IE4S provides four safety-rated analog input channels for current and voltage signals in POINT Guard I/O installations, supporting safety data exchange through the configured network adapter.

PRODUCT ROLE

Acquires analog process signals for safety-related control logic.

SYSTEM FIT

Match the terminal base, input range, adapter and safety-signature configuration.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL+86 17359287459 EMAILsales9@apterpower.com

Explore other Allen-Bradley products →

02 / DIAGNOSTICS & INSTALLATION

Diagnostics & Protection

Use channel and module status indications with controller diagnostics to distinguish open-wire, overrange, underrange and configuration faults. Validate field-loop power before replacement.

Installation & Upgrades

Mount on the specified POINT I/O terminal base, retain channel wiring and shield practice, then restore the verified safety configuration and complete the required proof test.

Technical data

Safety inputs4 analog channels

Supply24VDC

Current ranges0–20mA / 4–20mA

Voltage ranges±10V / ±5V

Operating range-20°C to +55°C

PlatformPOINT Guard I/O

Network serviceCIP Safety via adapter

MountingPOINT I/O terminal base

03 / BRAND & APPLICATIONS

Brand characteristics

Integrated architecture

POINT I/O combines compact field wiring with controller diagnostics.

Safety engineering

Guard I/O supports validated safety functions.

Channel flexibility

Selectable current and voltage ranges suit diverse transmitters.

Lifecycle tools

Configuration signatures support controlled maintenance.

Application fields

Machine safety

Pressure, position and force signals in safety logic.

Process skids

Safety-related analog transmitters on packaged systems.

Material handling

Monitored load and tension measurements.

Energy systems

Analog safety inputs in utility equipment.
