01PRODUCT DETAILS

Email : sales9@apterpower.com

Allen-Bradley · PRODUCT TECHNOLOGY

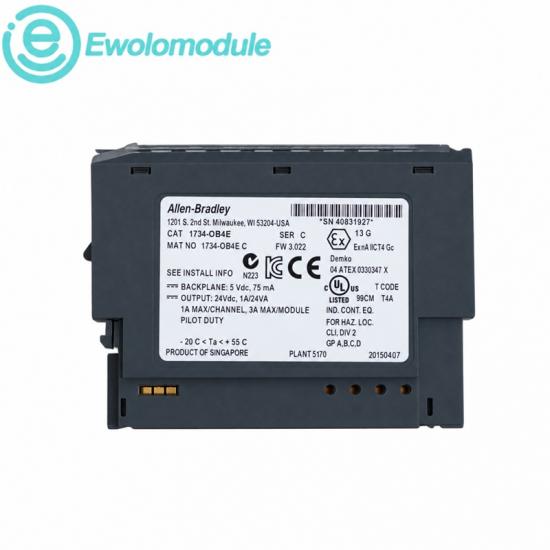

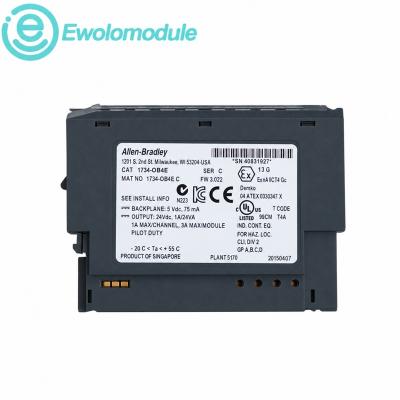

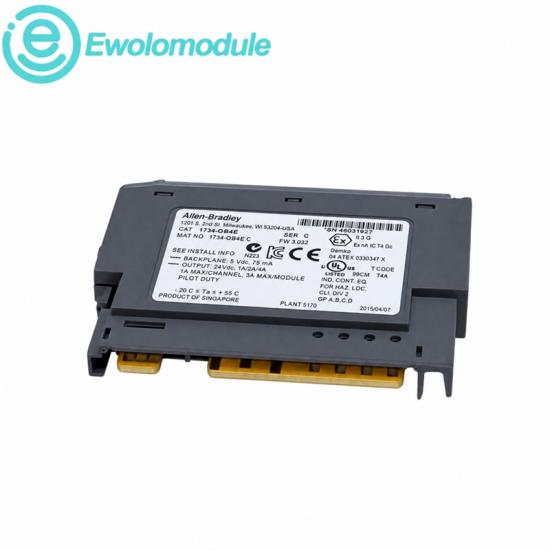

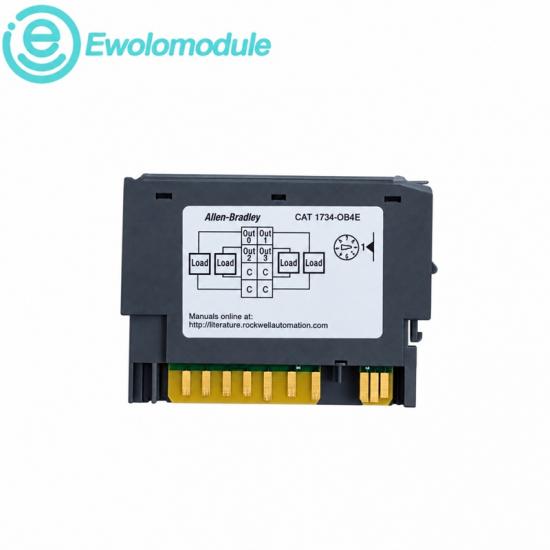

Allen-Bradley 1734-OB4E POINT I/O 4-Point Digital Output Module

A compact four-point 24 V DC sourcing output module with electronic protection for distributed POINT I/O installations.

PRODUCT PROFILE

SERIES

POINT I/O

CONTROL ROLE

Protected four-channel sourcing output

CONDITION
New Original

WARRANTY
One year

AVAILABILITY
In stock

Allen-Bradley Products

1606-XL480EP

1771-PS7

1762-IQ32T

02SPECIFICATIONS

Email : sales9@apterpower.com

Official technical data

Product type	POINT I/O digital output module	Digital outputs	4 sourcing channels
Load voltage	10–28.8 V DC	Current rating	1 A per output; 3 A per module
POINTBus current	75 mA at 5 V DC	Output delay	0.1 ms on/off
Power dissipation	1.2 W maximum	Channel design	Electronically protected, non-isolated

Diagnostic Protection

Channel and network indicators provide quick operating status, while electronic short-circuit and open-circuit diagnostics help locate field-wiring faults. Remove field power before rewiring and correct the overload condition before resetting the affected point.

Configuration & Programming

Install the module on the approved POINT I/O base, assign the four output points in the controller project and confirm the 24 V field supply. Check per-channel current, module current and POINTBus budget before enabling the outputs.

03BRAND & APPLICATION

Email : sales9@apterpower.com

Brand characteristics

Allen-Bradley POINT I/O combines compact modular construction, distributed control flexibility and documented diagnostics for machine-level automation.

Modular I/O	Narrow modules and selectable bases support scalable distributed stations.
Channel protection	Electronic protection improves fault isolation at the field-output level.
Controller integration	POINT I/O data maps cleanly into supported Logix control architectures.

Application fields

Built for localized 24 V DC actuator control where compact installation and channel status are important.

Machine control	Solenoids, lamps, relays and small DC loads.
Production cells	Distributed output stations close to field equipment.
System expansion	Four-point additions to compatible POINT I/O nodes.
