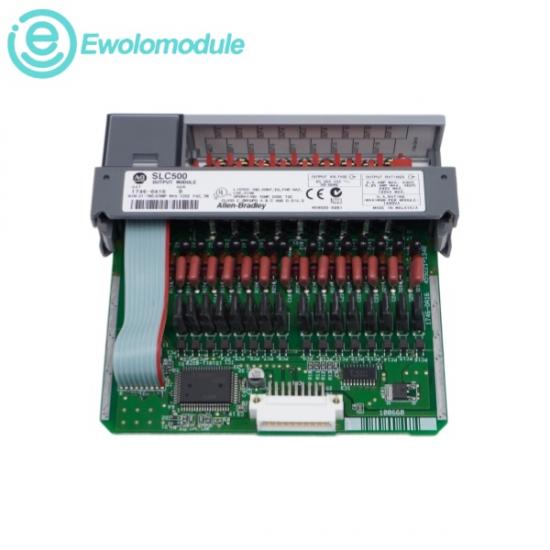

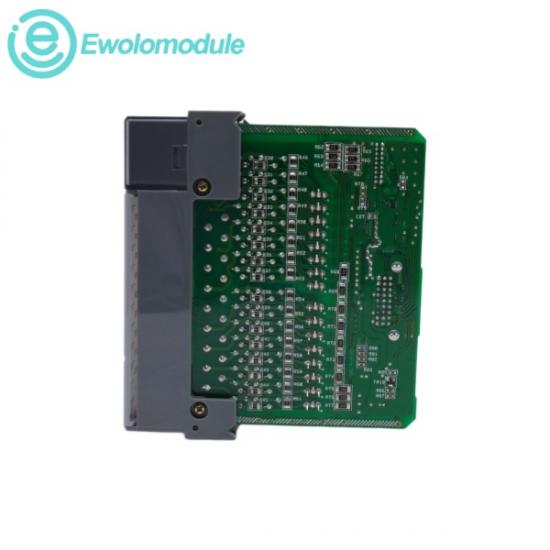

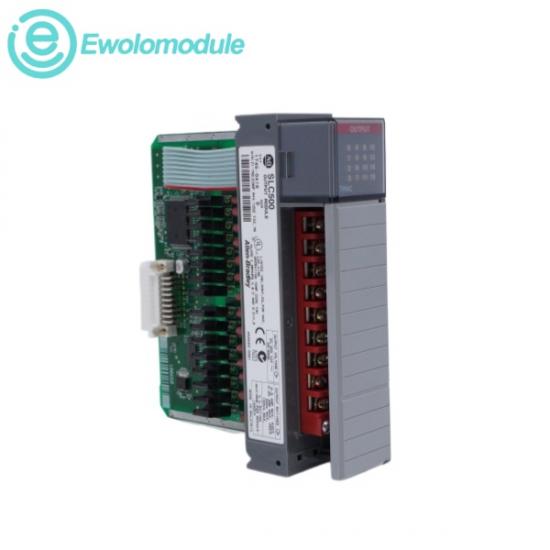

The Allen-Bradley 1746-OA16 is a 16-channel digital AC output module designed for the SLC 500 rack-based system. It interfaces directly with the SLC 500 backplane to convert logic signals from the processor into high-voltage AC switching outputs. Each of its 16 output points can independently control AC-powered field devices such as contactors, motor starters, solenoid valves, and indicator lamps. The module supports a broad universal AC voltage range, making it highly versatile for global industrial installations, while offering robust output current handling per point.

♦ Output Channels: 16 independent points

♦ Voltage Category: 120 / 240 Volts AC

♦ Operational Voltage Range: 85 to 265 Volts AC

♦ Continuous Current per Output Point: 0.5 Amps maximum per channel at 30 °C

♦ Maximum Continuous Current per Module: 8.0 Amps maximum total per module at 30 °C

♦ Operating Temperature Limits: 0 °C Min to 60 °C Max (+32 °F to +140 °F)

AC Industrial Actuator Control:

Directly energizing and de-energizing AC field loads such as solenoid valves, small contactors, magnetic starters, and industrial relays.

Status Indicators Sequencing:

Driving and coordinating stacked warning towers, control panel pilot lights, and localized audible alarm buzzers on the factory floor.

Distributed Load Switching:

Interfacing with a wide array of high-frequency AC automated sub-assemblies inside packaging lines, conveyor loops, and material handling systems.
