Product info
|

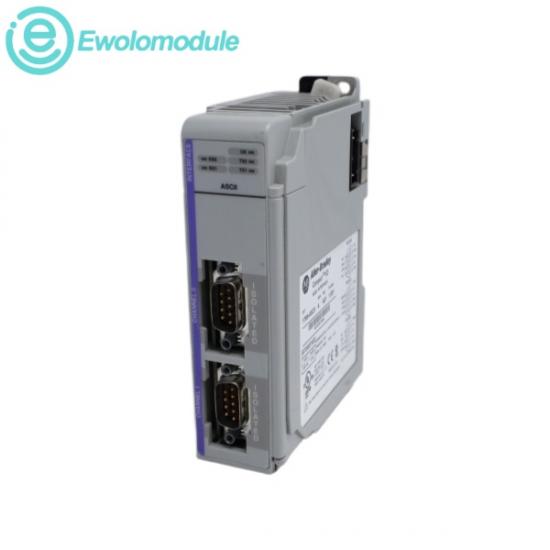

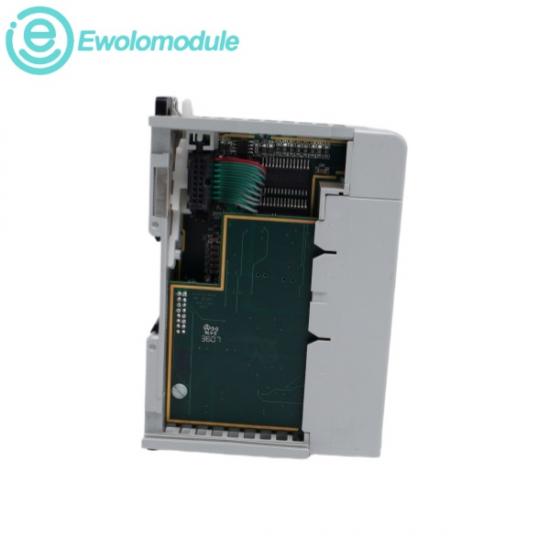

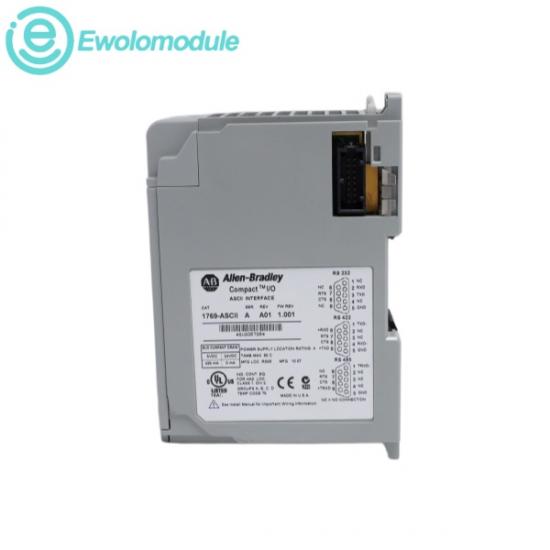

The Allen-Bradley 1769-ASCII is a single-slot, two-channel serial communication module designed for the CompactLogix 1769 backplane. It features 2 independent serial channels that can be individually configured for RS232, RS485, or RS422 protocols, acting as an intelligent interface that allows the host controller to read and write raw ASCII data to and from legacy or specialized non-networked field devices. It supports both point-to-point and multi-drop network topologies, making it an essential tool for system integration in mixed-vendor automation environments. |
|
♦ Number of Channels: 2 independent channels ♦ Backplane Current Draw: 420 mA at 5V DC / 0 mA at 24V DC ♦ Maximum Baud Rate Speed: Up to 38.4 Kbps per channel ♦ Operating Temperature Range: 0 °C min to 60 °C max ♦ Storage Temperature Range: -40 °C min to 85 °C max ♦ Relative Humidity Range: Max. 95 %RH (Non-condensing) |
Product Applications
|
Peripheral Device Interfacing: |
Connecting the controller to smart field hardware such as barcode scanners, weigh scales, RFID readers, and printers. |
|
Legacy Protocol Bridging: |
Transmitting custom string data structures to older serial devices or third-party instruments lack native industrial protocols. |
|
Distributed Instrument Integration: |
Querying and aggregating dynamic ASCII diagnostic codes across localized laboratory sensors and dynamic measuring nodes. |
Application Industry
1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.
2. Feed industry, aluminum smelting machinery, refrigeration industry.
3. Iron and steel industry, combustion control system, non-ferrous metal smelting.
4. Glass industry, engineering machinery, textile machinery, water treatment.
