Product Introduction
|

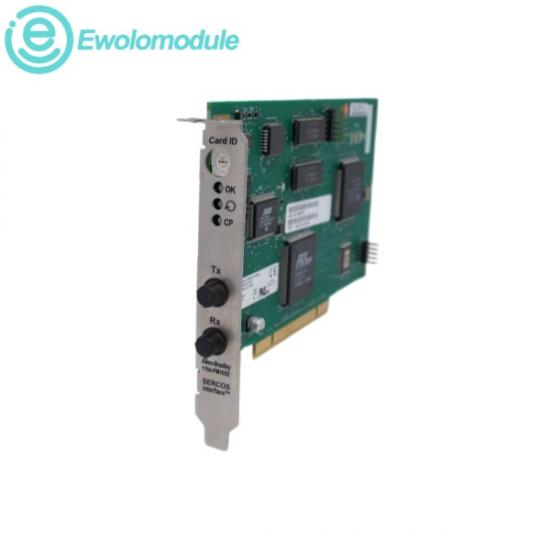

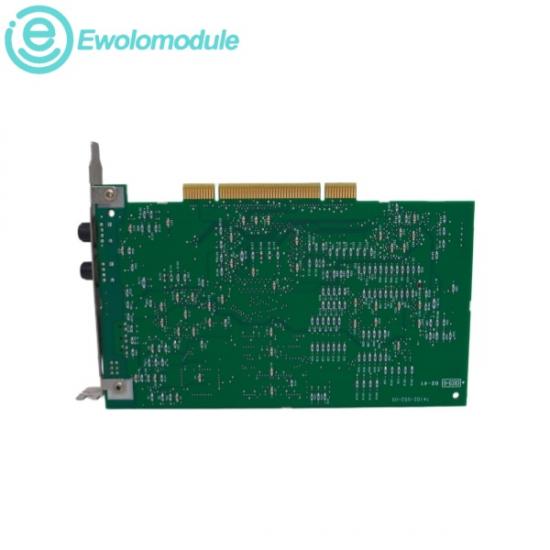

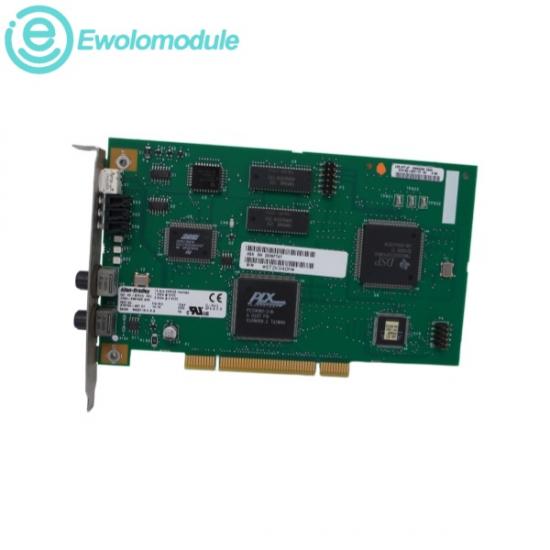

The Allen-Bradley 1784-PM16SE is a 16-axis PCI SERCOS interface card that serves as a link between the SoftLogix platform and intelligent SERCOS drives. Operating as a specialized hardware extension, it integrates directly into an industrial computer's PCI expansion slot to act as a dedicated motion interface for the Allen-Bradley SoftLogix 5800 software controller. By coordinating fiber-optic SERCOS networks, this card bridges software-defined programmable automation with physical, multi-axis servo drive and motor combinations. |
|
|
|
|
|
Axis Capacity: |
Manages and syncs up to 16 independent or coordinated axes |
|
Operating Voltage: |
Powered directly via the PC master backplane, utilizing +5V DC and +3.3V DC bus supply lines |
|
Current Draw: |
Draws approximately 1.0 A at 5V DC |
|
Data Transmission Rates: |
Supports industrial standard transmission speeds of 4 Mbps and 8 Mbps |
|
Ambient Operating Temperature: |
0 °C to 60 °C (32 °F to 140 °F) |
|
Storage Temperature: |
-40 °C to 85 °C (-40 °F to 185 °F) |
Applications by Industry
|
Multi-Axis Synchronous Motion: |
Controls complex, high-speed multi-axis motion coordinates like electronic gearing, camming, and multi-axis linear/circular interpolation. |
|
PC-Based Servo Drive Integration: |
Connects SoftLogix 5800 systems to digital servo drives like the Kinetix 6000 or Ultra3000 via reliable fiber-optic loops. |
|
Fiber-Optic Automation Ring Layouts: |
Deployed to establish completely noise-immune, real-time command feedback networks across long distances in heavy industrial machinery. |
|
High-Speed Packaging & Assembly: |
Used heavily in industrial labeling, material handling, packaging lines, and robotic assembly stations requiring microsecond precision. |
Application
Refinery: Controls emergency shutoff valves to prevent fire and explosion.
Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.
Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.
Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.
Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
