01 / PRODUCT DETAILSKINETIX 2000

Allen-Bradley · MOTION CONTROL

2093-PRS4

Four-Axis Slim Power Rail

Four-position power and backplane foundation for Kinetix 2000 servo modules

PRODUCT ROLE

Supports one IAM and as many as three additional Kinetix 2000 modules.

SYSTEM FIT

Match the 2093-PRS4 catalog number, rail length and installed module sequence.

Product overview

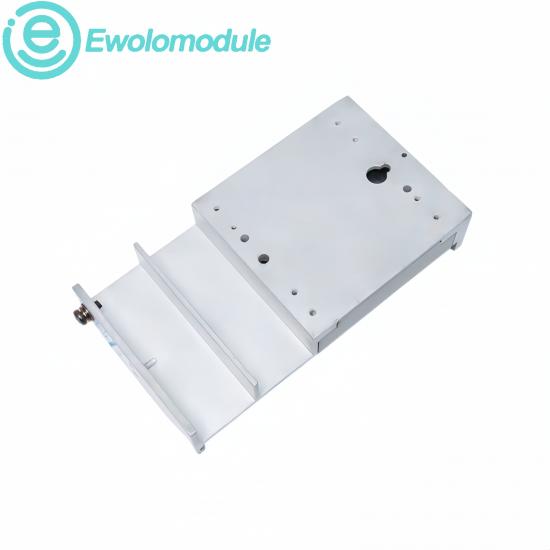

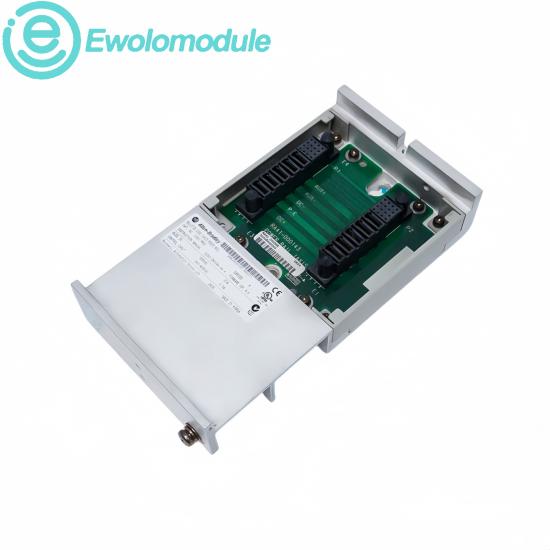

The 2093-PRS4 rail provides the mechanical mounting, shared DC-bus distribution and module interconnection required by a four-position Kinetix 2000 servo system.

CONDITIONNew Original

WARRANTYOne year

DIRECT CALL+86 17359287459 EMAILsales9@apterpower.com

Explore other Allen-Bradley products →

02 / PERFORMANCE & USE

Performance & Efficiency

The rail distributes a 240–425VDC bus with a maximum 20A rating across the installed Kinetix 2000 module group. Its rigid mounting profile maintains connector alignment and supports rapid module service without rewiring individual bus links.

Application Scenarios

Designed for compact multi-axis machinery using Kinetix 2000 IAM, AM, shunt and slot-filler modules. It is used when replacing a damaged rail, expanding a documented four-position assembly or restoring an obsolete motion platform.

Technical data

Axis capacity4 positions

Module capacityIAM + up to 3 modules

DC bus range240–425VDC

Maximum bus current20A

Rail length210mm

Module interfaceKinetix 2000 backplane

Mounting hardwareM4 fasteners

Lifecycle statusDiscontinued

03 / BRAND & APPLICATIONS

Brand characteristics

Integrated motion

Allen-Bradley combines drives, controllers and configuration tools in one automation ecosystem.

Modular expansion

Kinetix rail architecture scales by adding matched axis and support modules.

Service access

Front-mounted modules simplify inspection and planned replacement.

Lifecycle continuity

Catalog-number control supports established machine configurations.

Application fields

Packaging machinery

Coordinated servo axes for indexing, sealing and product handling.

Material handling

Position-controlled conveyors and transfer systems.

Assembly systems

Multi-axis stations requiring synchronized motion.

Retrofit maintenance

Like-for-like support for installed Kinetix 2000 machines.
