PRODUCT DETAILS

Email : sales9@apterpower.com

ALLEN-BRADLEY · DRIVE INTERFACE

SP-145472 145472 119711-02

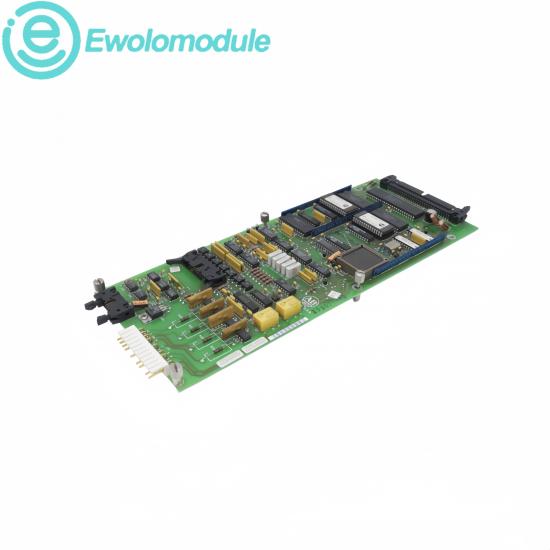

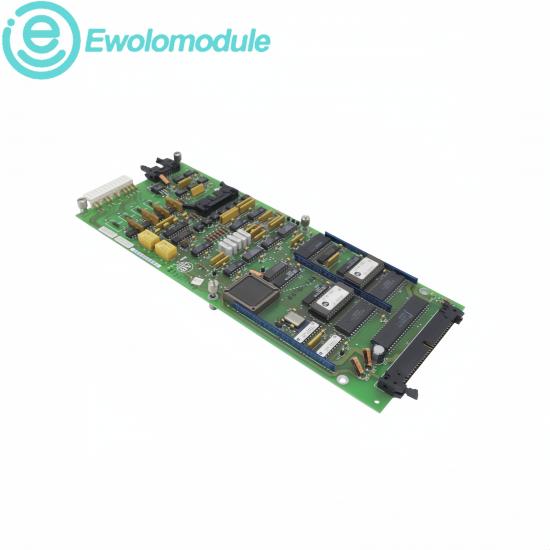

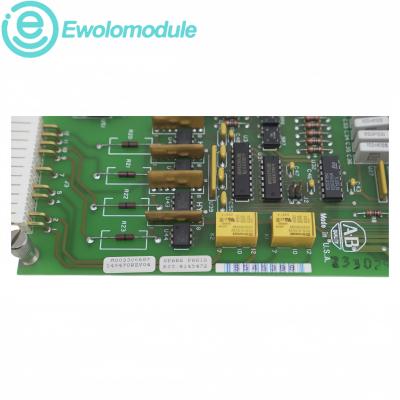

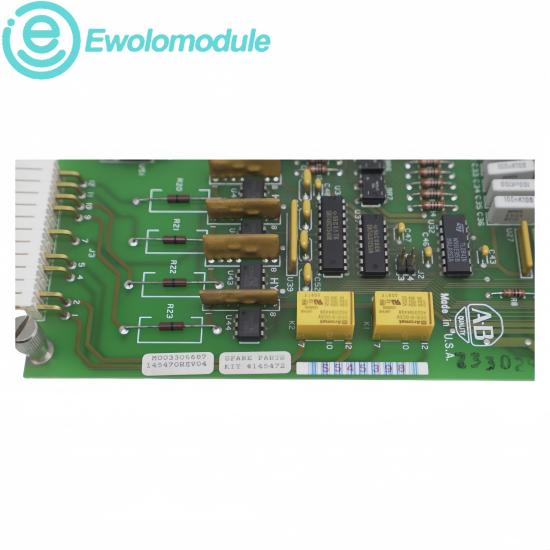

Discrete adapter board

24 V DC adapter hardware for organized discrete input and contact-output integration in installed 1395 drive systems.

SIGNAL INPUTS

4 discrete inputs

CONTACT OUTPUTS

2 programmable outputs

SYSTEM ROLE

Drive-to-field interface

Related models

SPECIFICATIONS

Email : sales9@apterpower.com

ALLEN-BRADLEY · DRIVE INTERFACE

Discrete drive interfacing with catalog-defined renewal compatibility

The board links field devices to the 1395 control architecture while preserving the installed discrete signal arrangement.

Official technical data

Product type

Discrete adapter board

Catalog identity

SP-145472 / 145472 / 119711-02

Host platform

Bulletin 1395 DC drive

Nominal supply

24 V DC

Signal interface

4 inputs; 2 contact outputs

Logic mapping

16 drive status bits

Installation

Drive cabinet PCB position

Lifecycle

Discontinued service spare

Origin

United States

Condition

New Original

Operating Environment

Operating temperature

0 to +55°C

Storage temperature

−40 to +85°C

Relative humidity

5–95%, non-condensing

Enclosure

Installed drive cabinet

Safety & Compliance

Isolate incoming power and verify the DC bus is discharged before handling the board. Confirm the complete catalog identity, connector orientation and 24 V DC field wiring before replacement.

Technical reference: Allen-Bradley Bulletin 1395 service documentation.

BRAND & APPLICATIONS

Email : sales9@apterpower.com

Brand characteristics

Allen-Bradley 1395 service components use catalog-defined assemblies and documented drive interfaces for controlled lifecycle maintenance.

Catalog identity

Full order codes distinguish board and artwork revisions.

Drive integration

Dedicated connectors preserve the installed 1395 signal path.

Lifecycle support

Renewal parts simplify planned replacement work.

Application fields

SP-145472 supports discrete field interfacing in legacy 1395 DC drive cabinets.

Drive retrofits

Like-for-like service of installed DC drive panels.

Process lines

Discrete status and command exchange in industrial machinery.

MRO programs

Revision-matched board replacement during planned outages.
