PRODUCT DETAILS

Email : sales9@apterpower.com

ALLEN-BRADLEY · DISCRETE ADAPTER

SP-170023 170013 170016-01

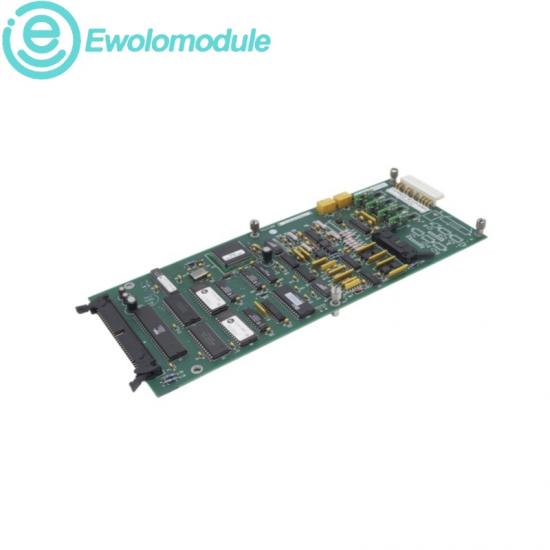

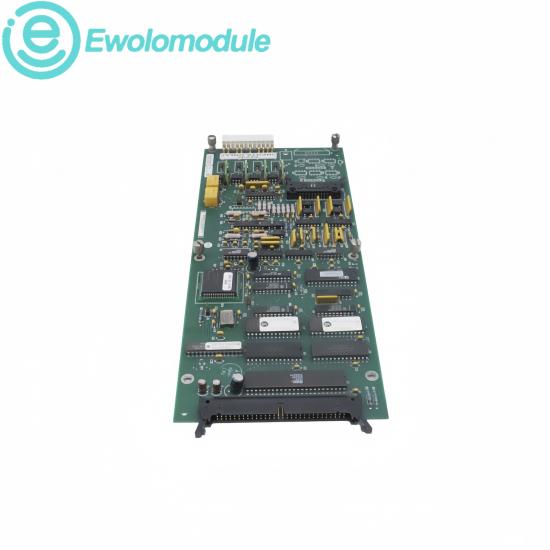

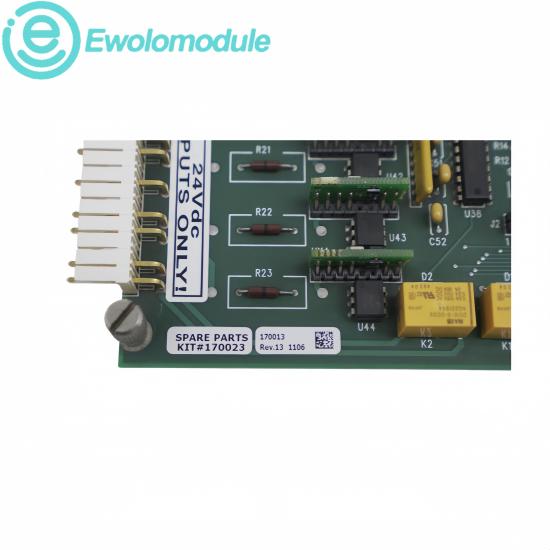

Discrete adapter board

Structured 24 V DC input and programmable contact-output interfacing for legacy 1395 drive systems.

DISCRETE INPUTS

4 channels

CONTACT OUTPUTS

2 programmable

LOGIC STATUS

16 mapped bits
