AMCI R11 RESOLVER · MOTION FEEDBACK

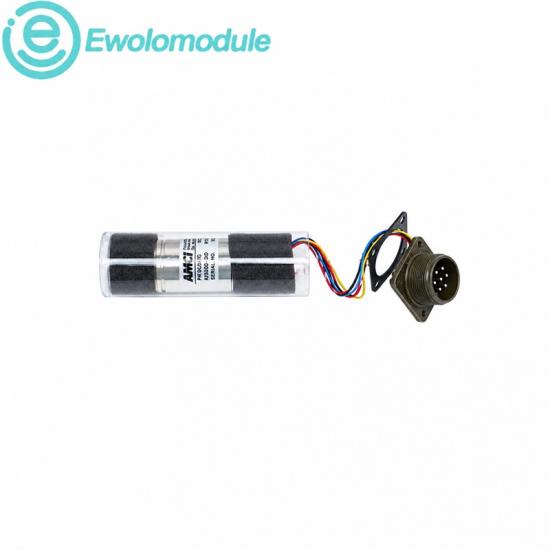

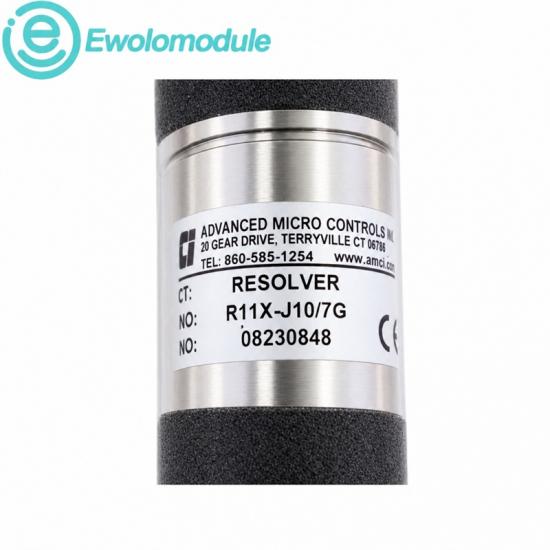

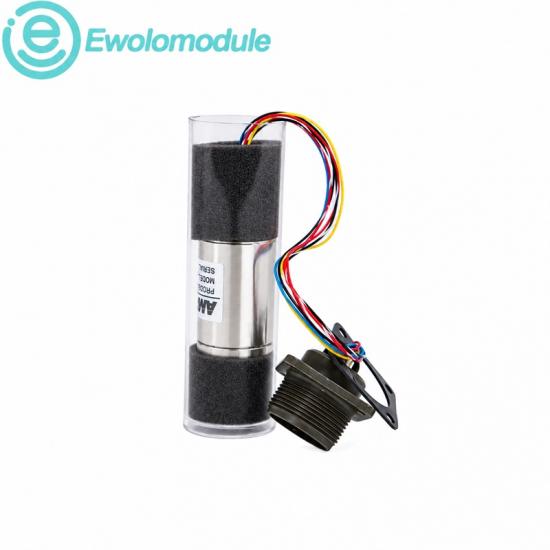

AMCI R11X-J10/7
Size 11 Brushless Resolver
A compact rotary transducer that provides absolute shaft position through rugged resolver windings without brushes or onboard electronics.
|
|
SERIES
R11 size 11
|
PRODUCT TYPE
Brushless resolver
|
|
CONDITION
New Original
|
AVAILABILITY
In stock
|
PRIMARY ROLE
Absolute rotary position feedback
|
Official technical data
| Product type |
One-speed brushless resolver |
Frame size |
Size 11, 1.1 in diameter |
| Input voltage |
7.0 V AC |
Input frequency |
5000 Hz |
| Output voltage |
6.65 V nominal |
Transformation ratio |
0.95 ±5% |
| Accuracy |
7 arc-min maximum error |
Protection |
NEMA 1 |
Safety & Compliance
De-energize the interface before wiring, protect the flexible shaft coupling from axial or radial loading and follow the published shield-termination arrangement. Use the resolver only where environmental sealing is not required.
|
Application Scenarios
Use R11X-J10/7 in compact servo, indexing and machine-position applications that need repeatable absolute angular feedback and compatibility with 5 kHz resolver interfaces.
|
Brand characteristics
AMCI industrial products use catalog-defined hardware and documented engineering data to support dependable lifecycle maintenance.
Brushless construction
No sliding contacts support long operating life.
Ratiometric output
Position remains stable despite normal excitation variation.
Compact envelope
Size 11 body fits space-constrained mechanisms.
|
Application fields
This product supports targeted automation, machinery-service and industrial lifecycle requirements where its exact catalog identity is installed.
Servo systems
Rotor-position feedback for closed-loop motion.
Indexing machines
Absolute angular reference for repeatable cycles.
Retrofit projects
Replacement of compatible size 11 resolvers.
|
