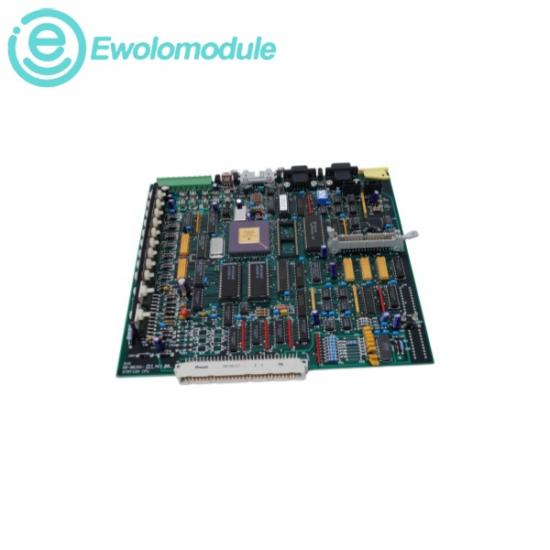

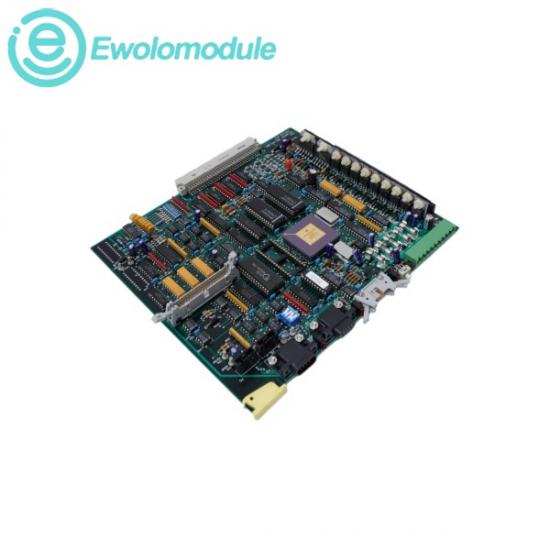

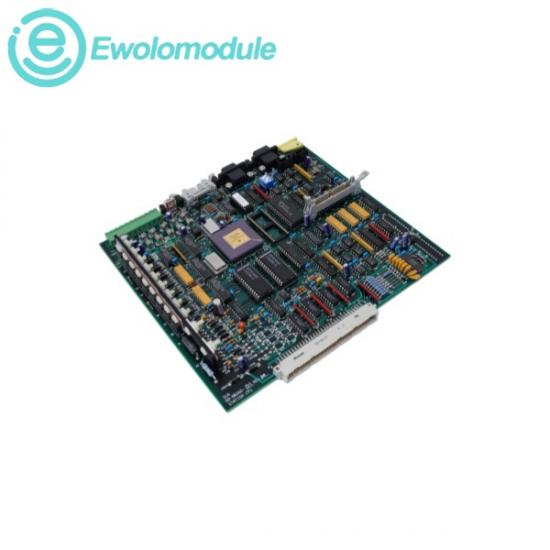

The ASML SVG 99-80266-01 is a high-performance, industrial-grade Station Controller CPU Printed Circuit Board (PCB) primarily produced in the United States. It is designed explicitly for the legacy ASML/SVG 90S series DUV lithography coater and developer track systems. Acting as the decentralized local processing unit for specific process sub-stations—such as the resist coater module, hotplate stack bake, or fluid-temperature control (FTC) stations—this board manages critical synchronization tasks. It hosts specialized on-board EPROM chips loaded with proprietary sub-assembly firmware to regulate high-accuracy chemical dispersion and local thermal processing steps across the automated semiconductor wafer track.

Firmware Storage Medium: On-board dual-in-line memory socketed EPROM chips

Operating Logic Rails Voltage: +5 V DC

Peripheral Bus I/O Power Supply: ±15 V DC or +24 V DC

Maximum System Current Draw: Typically under 2.5 A

Operating Temperature Window: 15°C to 55°C

Storage Environment Temperature: -20°C to 75°C
