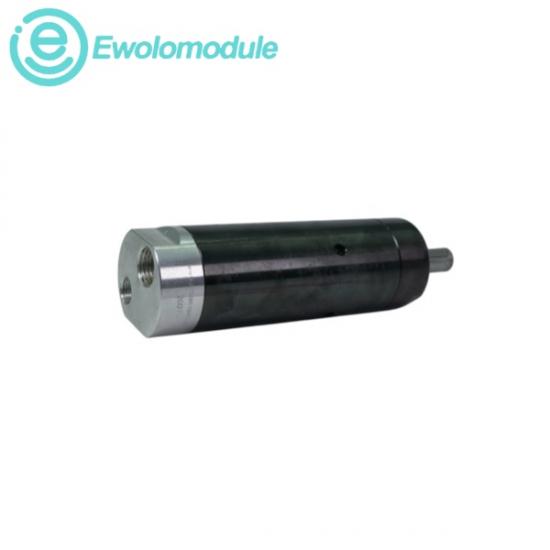

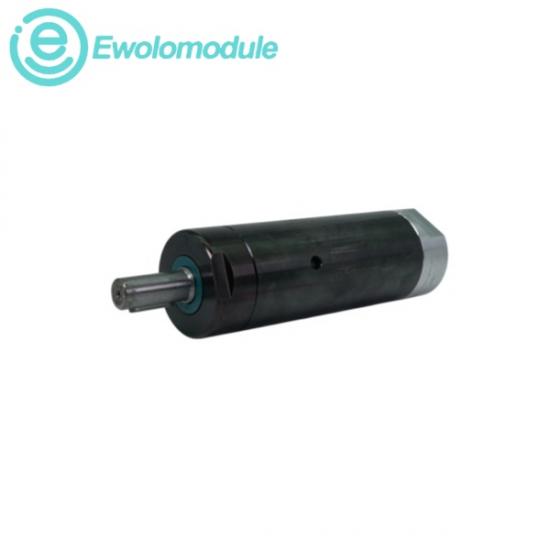

The Atlas Copco LZB22 A049-11 is a premium, compact lubrication-free pneumatic vane air motor engineered for high performance in industrial machinery and automated assembly lines. Built with a distinct long, slim outer profile and multi-step planetary gears, this non-reversible motor utilizes a 5-vane rotor framework to achieve superior starting torque and stable low-speed performance. Because it is designed to run completely oil-free without contaminating the surrounding air, it is heavily utilized in cleanrooms, food processing, or medical environments, and it frequently features specialized ATEX explosion-proof certification for hazardous or volatile workspaces.

Maximum Output Power: 0.27 kW (0.36 hp)

Free Speed (No-Load Varvtal): 4,700 r/min

Speed at Maximum Output: 2,100 r/min

Torque at Maximum Output: 1.2 Nm (0.89 ft-lb)

Minimum Starting Torque: 2.3 Nm (1.7 ft-lb)

Stall Torque Capability: 2.4 Nm (1.8 ft-lb)

Air Consumption at Max Output: 5.3 l/s (11.2 cfm)

Maximum Operating Ambient Temperature: +40°C (+104°F) for safe ATEX compliance
