| Product Details |
Brand:Bachmann Module:ISI222 Description:Positioning Module General:CE, UKCA, cULus Marine:ABS, BV, DNV, KR, LR, NK, RINA Operating temperature:-30 °C to +60 °C Storage temperature:-40 °C to +85 °C |
| Features |
|
● 2 input channels for incremental and SSI encoder ● Full 32 bit counter ● 2 analog outputs (14 bit) ● 4 fast digital input channels for initiator and trigger ● Position measurement / position storage can be initi ated via triggers ● Virtual inputs can be used in applications: Zero pulse, velocity, etc. ● Synchronization via SYNC / PreSYNC ● Encoder supply via module ● Monitoring of the encoder voltage ● Cable break monitoring (encoder） |
Hot-selling
PTAI216 BACHMANN |
RS204 Bachmann EM203 Bachmann CM202 Bachmann FM211 Bachmann MX213 Bachmann AIO288 ISI222 Bachmann |

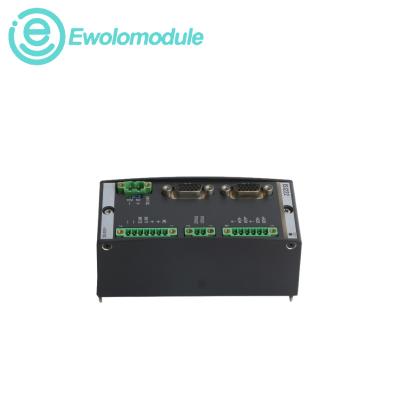

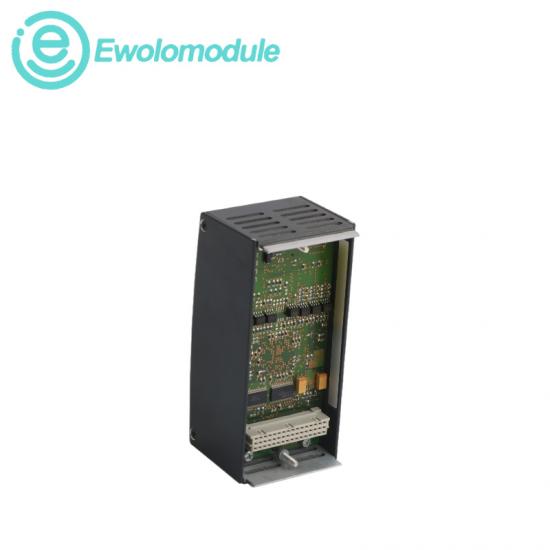

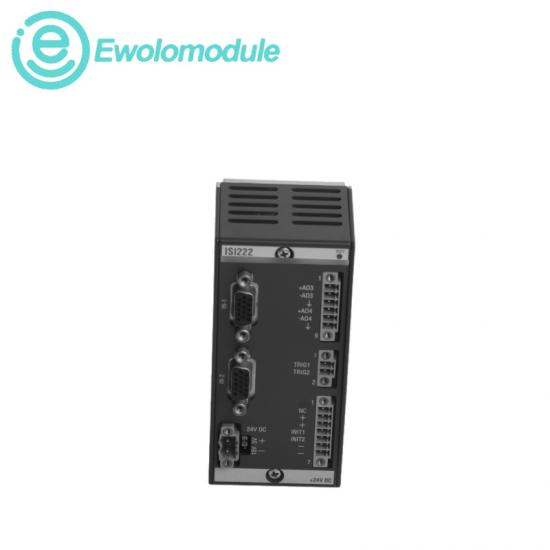

| ISI222/x Positioning Module |
| Especially designed for sophisticated motion control appli cations the ISI222 module offers compact equipment and optimum precision. Equipped for the total control of two motion axes, the module features a number of encoder interfaces for position acquisition, analog outputs for the application of manipulated variables, as well as digital inputs for the initiator or trigger. Furthermore, due to the central communication concept, all I/Os of the remaining M200 system can also be incorporated into the motion control (limit switches etc.). Input frequencies up to 8 MHz and the integrated synchronization (I/O-Bus-Sync) with the total system allow highly dynamic and precise movements. |
