FIELD FILE
01
|
BENTLY NEVADA / PRODUCT IDENTIFICATION

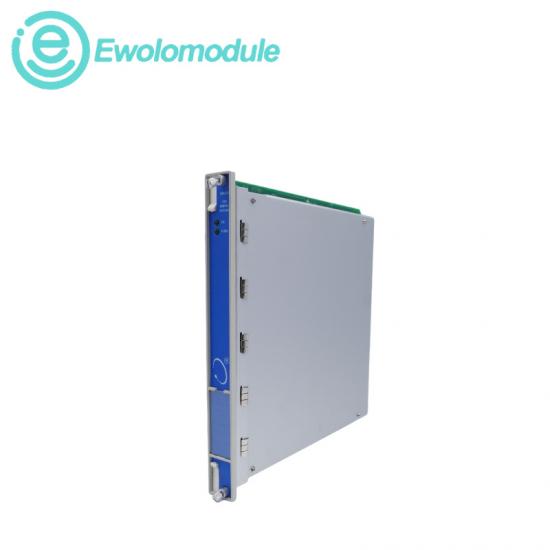

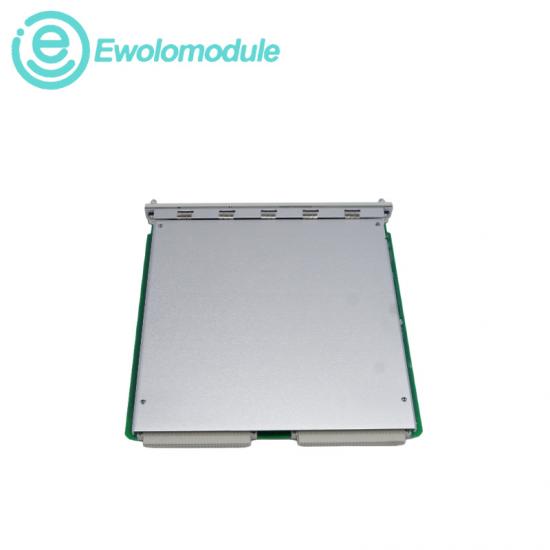

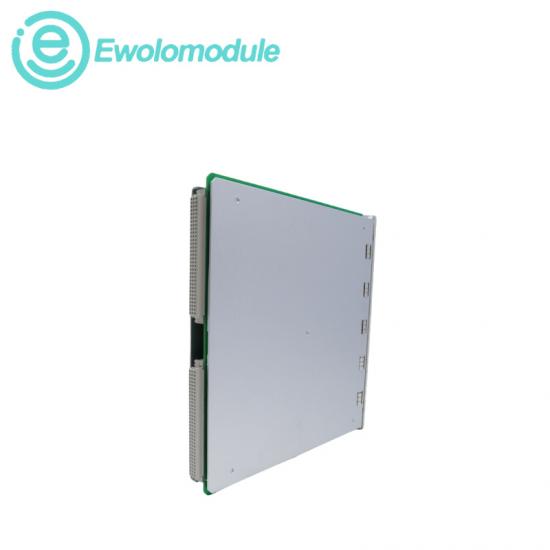

3500/94 145988-01Bently Nevada 3500/94 145988-01 VGA Display Module
|
|
MAKER
Bently Nevada
|
ORDER ITEM
145988-01
|
EQUIPMENT CLASS
Legacy VGA Display Module
|
|
USE CASE
Read the whole suffix.
|
A legacy 3500/94 main VGA display module used to present 3500 rack information on a standard color touch-screen display.
Use the complete model code when requesting availability, condition, lead time and shipping information.
|
|
MEASURED / ORDER-CODE DATA
Technical register
|
02
INDEX
|
| S01 | PLATFORM | Legacy Bently Nevada 3500/94 |
| S02 | FUNCTION | VGA Display main module |
| S03 | DISPLAY INTERFACE | Standard color VGA monitor with touch-screen technology |
| S04 | CUSTOM SCREENS | Up to nine |
| S05 | SYSTEM VIEWS | Events, alarms, module/channel data and API 670-style rack view |
| S06 | SYSTEM COMPONENTS | Main module, matching I/O card and VGA display |
| S07 | LIFECYCLE | Legacy hardware; verify exact revision and replacement path |
| S08 | PROCUREMENT CHECK | Match module, I/O card, display, cable and software revision |
| PROCUREMENT FLAG | Color VGA touch-screen operator interface |
|
TWIN-SIGNAL RAIL
20
|
BENTLY NEVADA / ALTERNATIVE MODEL RUN
Signals to compare before ordering |
03
TRACK
|
| 01 | 330180-90-CN | 11 | 3500/22M 146031-01 | |
| 02 | 330180-91-00 | 12 | 3500/22M 146031-02 | |
| 03 | 330180-91-05 | 13 | 3500/22M 288055-01 | |
| 04 | 106M1081-01 | 14 | 3500/25 125800-01 | |
| 05 | 125840-01 | 15 | 3500/25 125800-02 | |
| 06 | 125840-02 | 16 | 3500/32M 125720-01 | |
| 07 | 127610-01 | 17 | 3500/33 149986-01 | |
| 08 | 3500/20 125744-02 | 18 | 3500/40M 125680-01 | |
| 09 | 3500/20 125768-01 | 19 | 3500/42M 128229-01 | |
| 10 | 3500/22M 138607-01 | 20 | 3500/50M 133442-01 |
|
BUYER VERIFICATION TIMELINE
Six decisions for 3500/94 145988-01
|
Q / A
FOLLOW THE LINE
|
|
CHECKPOINT 01
Is 145988-01 the touch-screen panel?
|
No. It is the rack-mounted legacy VGA display main module used with separate I/O and display hardware.
|
|
|
No. Verify rack hardware, I/O card, cabling, display and firmware before planning a migration.
|
CHECKPOINT 02
Can a current 3500/94M module be assumed to be a direct replacement?
|
|
|
CHECKPOINT 03
Why should the existing display size be documented?
|
Mounting hardware, cable arrangement and power requirements depend on the installed display configuration.
|
|
|
Record language, VGA type and all custom screen groupings before removing the legacy module.
|
CHECKPOINT 04
What screens should be backed up?
|
|
|
CHECKPOINT 05
Does the module replace the protection monitors?
|
No. It visualizes rack information; protective measurements and alarms remain in the individual monitor modules.
|
|
|
Capture module LEDs, I/O connections, video signal behavior and display power status before ordering parts.
|
CHECKPOINT 06
What helps distinguish a display fault from a module fault?
|
|
