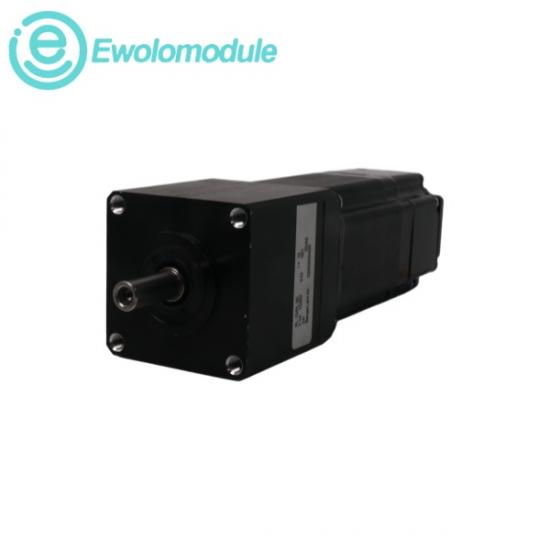

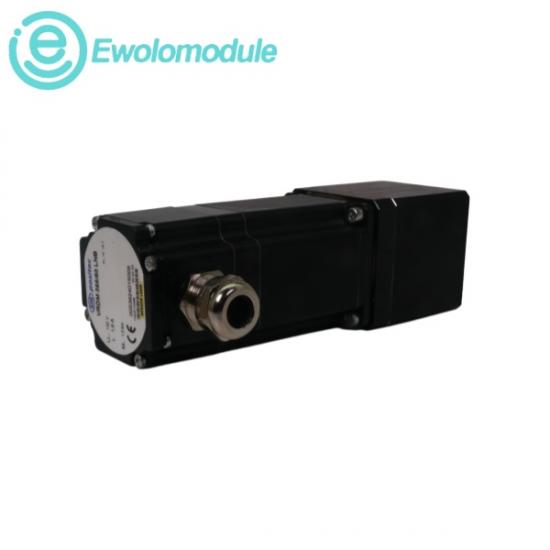

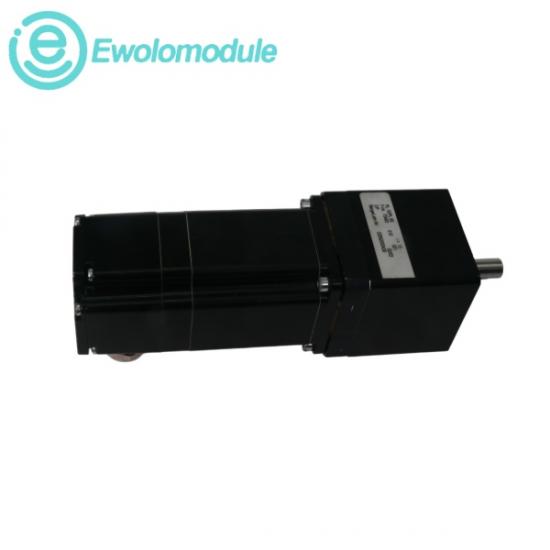

Motor Technology: 3-Phase Stepping Motor with a 50-pole pair layout

Physical Body Length: 79 mm length dimension

Frame/Flange Mounting Size: Standard 57.2 mm square flange edge length

Phase Current Rating: Draws up to 5.8 Amps of current

Holding Torque Rating: Generates up to 1.5 Nm (Newton-meters) of force

Environmental Working Temperature: Built to operate reliably across a standard 0 °C to +100 °C range

Dynamic Packaging Machinery: Regulating fast, high-accuracy feeding belts and container indexing systems where sudden start-stop movements are required.

Textile and Printing Control: Powering precise automated yarn spinners, continuous label feeds, and synchronized printhead positioning mechanics.

Pick-and-Place Robotics: Operating as a compact motion component in industrial Cartesian robots, multi-axis cnc systems, and automated sorting tables.
