Product Details

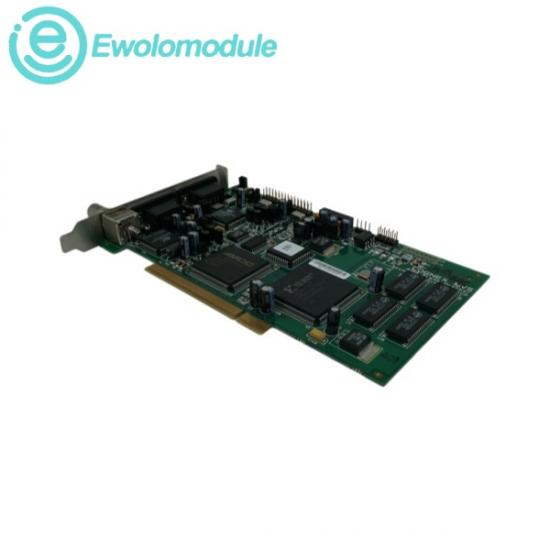

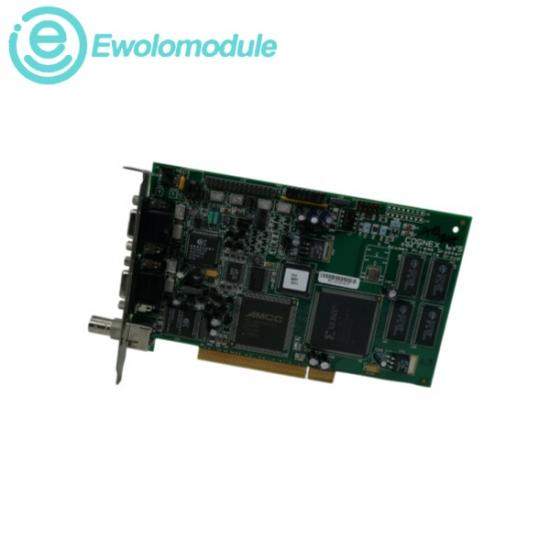

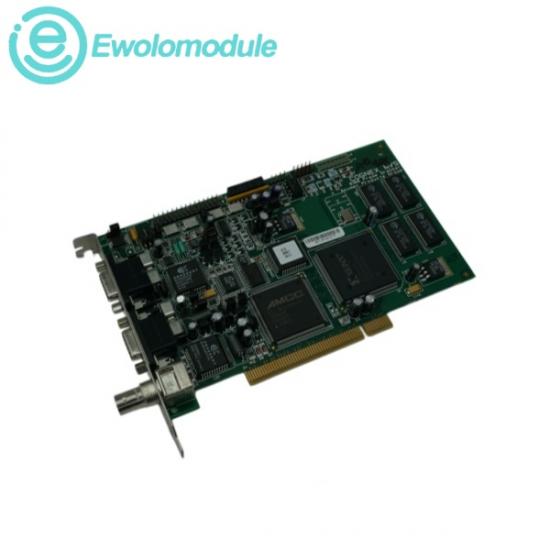

The Cognex VPM-8100Q-000 is an industrial PC-based frame grabber board engineered for real-time high-speed video capture and machine vision analysis. Designed as a quad-multiplexed hardware platform, it allows automated production lines to capture high-quality grayscale images from up to four external analog cameras simultaneously. By acting as a PCI bus master, the card unloads image processing tasks and transfers raw optical frames directly into Cognex's host-based vision software libraries (such as VisionPro and PatMax®), enabling fast, sub-pixel accurate calculations for robotic guidance, precise alignment, and defect sorting.

▪ Host Bus Interface: Standard 32-bit PCI master bus architecture

▪ Multiplexed Video Channels: 4 independent video input acquisition channels

▪ Supported Image Formats: Up to 640 × 480 pixels for standard RS-170 inputs and up to 768 × 570 pixels for CCIR formats

▪ Analog-to-Digital Converter (ADC): High-speed 10-bit resolution analog digitization

▪ Maximum Power Dissipation: ≤ 8.5 Watts when running all four video acquisition channels continuously

▪ Operating Ambient Temperature: 0°C to +50°C (32°F to 122°F) under continuous chassis ventilation

▪ Storage Thermal Limits: -20°C to +80°C (-4°F to 176°F)

▪ Relative Humidity Threshold: 10% to 90% RH (non-condensing)
