Product Info

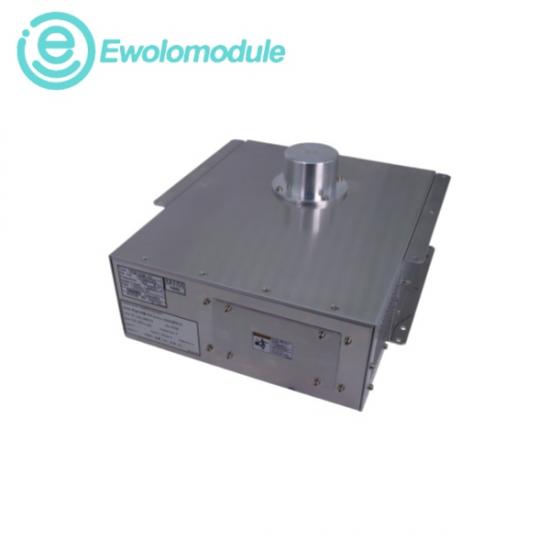

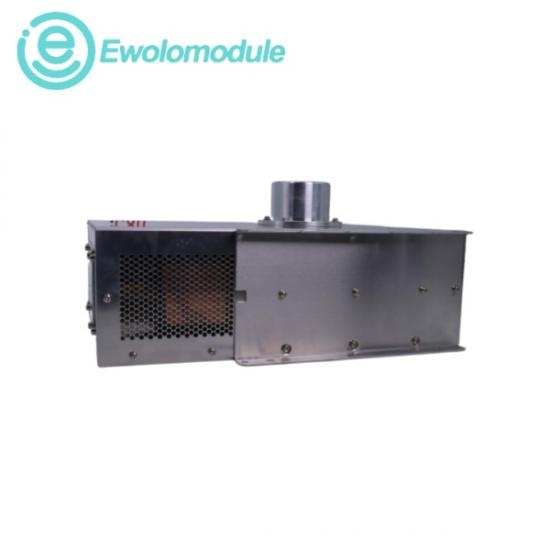

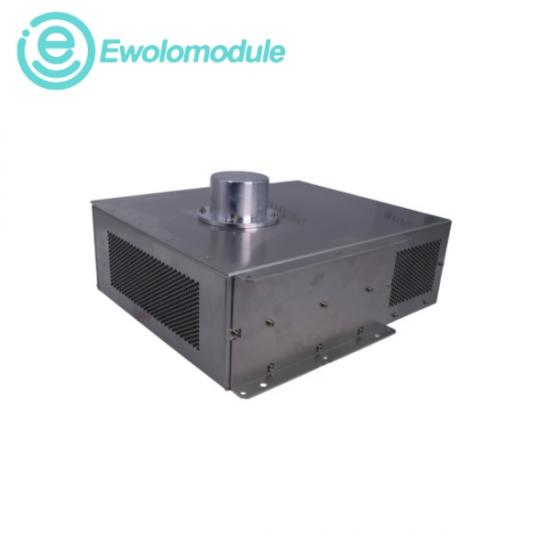

The DAIHEN FLB-60M-03 0190-19674 is a high-precision industrial microprocessor control board integrated into legacy 60 MHz high-frequency radio frequency (RF) plasma power management networks. This hardware acts as the computational engine for automated matching networks, which actively track complex impedance variations between an industrial RF generator and a vacuum processing chamber. By continuously executing closed-loop algorithms, the board calculates real-time compensation coordinates, driving motor adjustments and phase tuners to maximize forward power transmission, minimize reflected power, and sustain stable plasma ignition during micro-fabrication.

System Operating Frequency: 60 MHz

Logic Processing Rail Input: Draws standard +5 VDC (±5%) voltage

Analog Driving Voltage Rails: Requires +15 VDC and -15 VDC secondary power inputs

Analog Capture Resolution: Onboard analog-to-digital data channels utilize 12-bit conversion matrices

Operating Ambient Temperature: 15°C to +40°C

Storage Temperature Range: -10°C to +60°C

Relative Humidity Limit: 20% to 80% RH (non-condensing)
