Functional Description

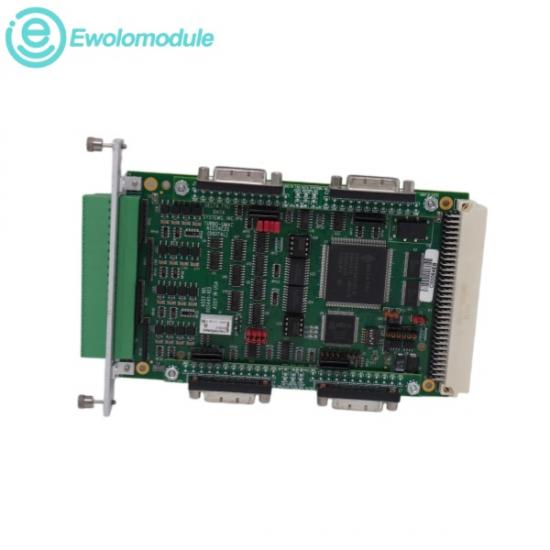

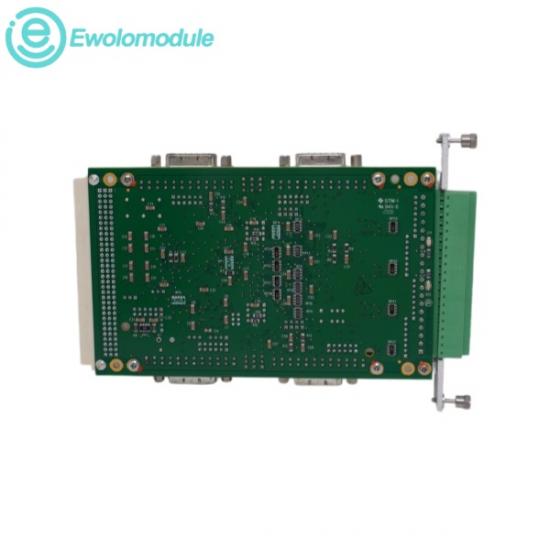

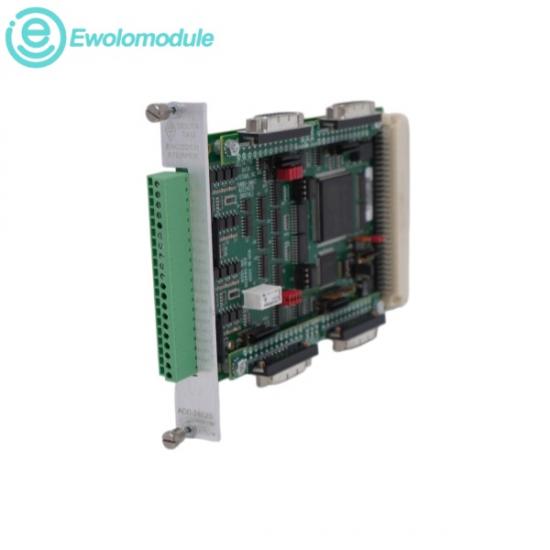

The Delta ACC-24E2S 603581-101 2-AXIS is a high-performance 2-axis expansion board engineered for industrial automation control systems. The module operates without an independent onboard CPU; instead, it utilizes a highly integrated PMAC2-style servo IC combined with driver buffering circuitry to translate primary controller instructions into precise motor commands. Outfitted with rugged, dual-axis DB15 communication headers, the module offers dedicated feedback processing, error tracking registers, and pulse/direction transmission arrays, providing an optimized physical interface to bridge high-resolution encoders directly to external machine actuators.

(1) Input Channels: Up to 8 digital inputs

(2) Output Channels: Up to 4 analog outputs

(3) Axis Count Configuration: 2-Axis populated configuration

(4) Electrical Backplane Power Draw: +5V DC: Consumes approximately 0.5 to 1.0 Ampere

(5) Electrical Backplane Power Draw: ±12V DC: Marginal current draw for auxiliary analog

(6) Operating Temperature Range: 0°C to 50°C (32°F to 122°F)

Applications by Industry

v Multi-Axis Stepper System Integration: Used inside standard 3U UMAC modular systems to control additional independent stepper motor drivers or pulse-input servo controllers.

v Dual Feedback Processing: Deployed in heavy closed-loop machining centers as an encoder expansion hub to achieve high-precision dual-feedback position calibration.

v MACRO Station Expansion: Installed onto remote MACRO stations to route up to eight distinct channels of axis telemetry across networked fiber-optic channels.
