Product category: Schneider Electric / ELAU PacDrive™ M System (iSH Series)

Product status: New and Original

Tariff code: 85371091

Product description:

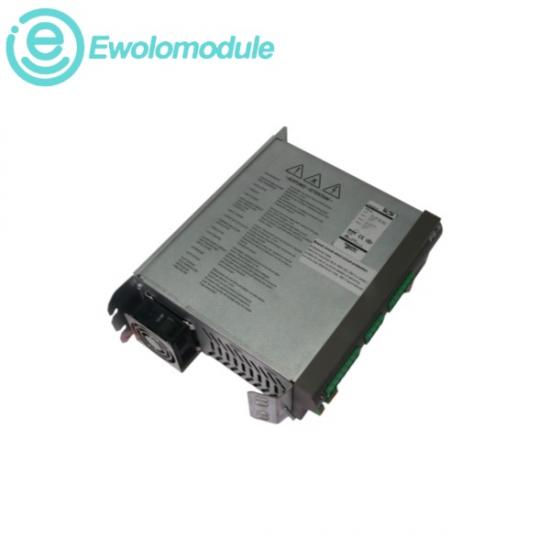

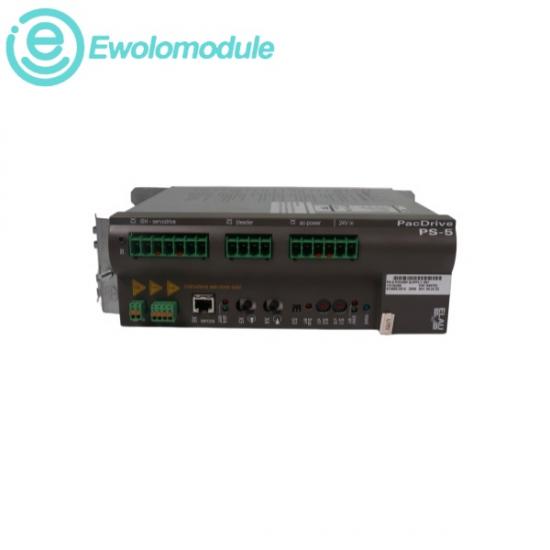

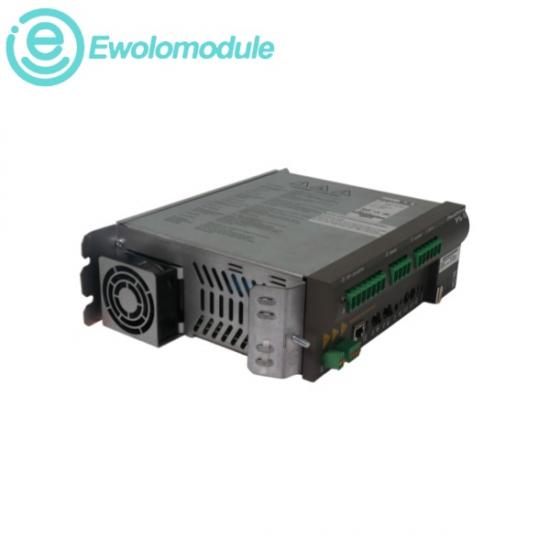

ELAU DRIVE PS-5 Power Supply

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Product Summary
Main Line Input Voltage: 3-Phase 208V to 480V AC	Nominal DC Bus Output Voltage: Maximum 680V DC
Line Frequency Range: 48 Hz to 62 Hz	Continuous Output Power Capacity: 5.0 kW
Electronics Control Input Voltage: 24V DC (-15% / +20%)	Peak Output Power Capacity: 10.0 kW
Product Description
The ELAU DRIVE PS-5 is an intelligent, high-efficiency central power module specifically designed to drive decentralized iSH (Intelligent Servo Head) automation architectures within advanced packaging and material processing machinery. Installed directly inside the control cabinet, the compact PS-5 converts 3-phase AC input voltage into a stable high-voltage DC bus network, enabling a single power unit to cleanly supply and synchronize up to 25 remote integrated servo drives via a simplified tree or line network topology. Equipped with an integrated mains filter, an internal bleeder resistor, and a dedicated real-time SERCOS communication link, it provides complete diagnostic monitoring, system safety boundaries, and exceptional power density to eliminate bulky cabinet layouts.
