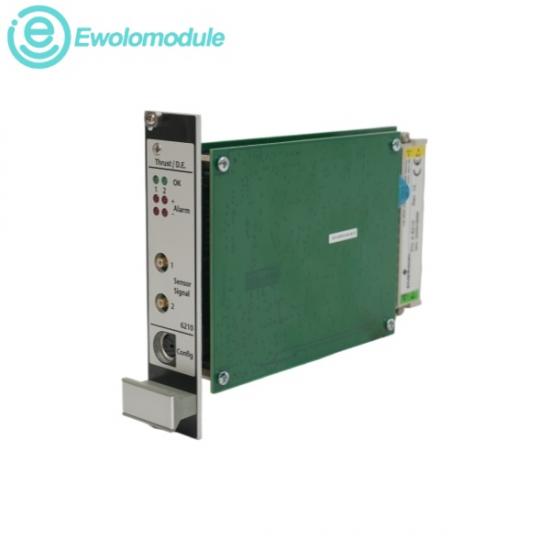

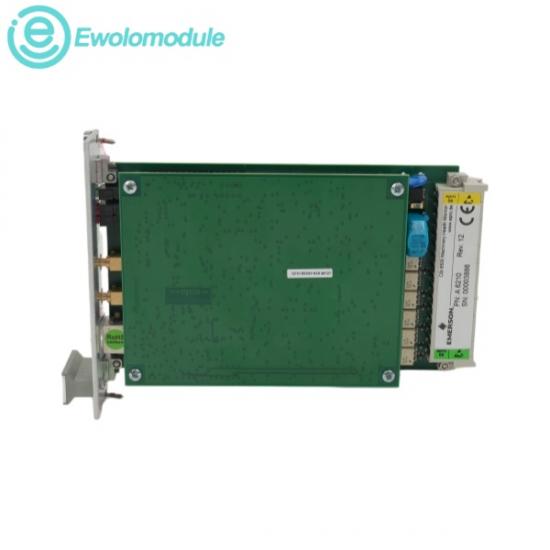

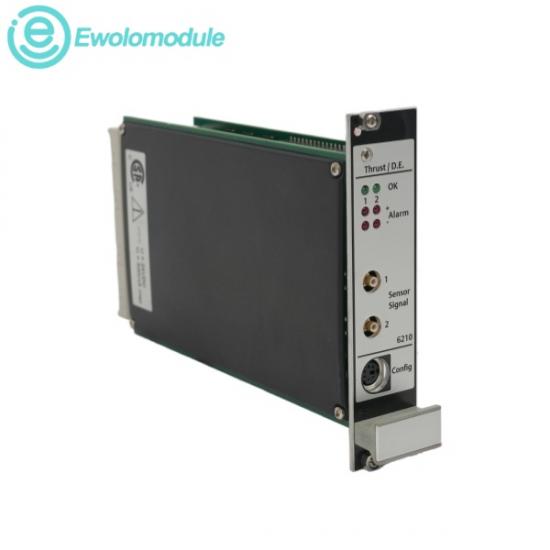

The Emerson A6210 Monitor Module is an advanced, high-reliability dual-channel 3U-sized machinery protection hardware card engineered to monitor shaft thrust position, differential expansion, and average rod drop on critical industrial machinery. Installed as a hot-swappable single-slot module inside an AMS 6500 chassis, it continuously compares precise real-time mechanical displacement variables captured by non-contact eddy current proximity sensors against predefined alarm setpoints. The onboard processor operates with high-speed computation to deliver critical trip commands within 40 milliseconds or less, actively protecting large turbomachinery, turbines, and reciprocating compressors.

² Channel Configuration: 2-channel independent or synchronized sensor input architecture.

² Form Factor Size: Space-saving 3U size, 1-slot plug-in module layout that reduces cabinet footprint requirements by 50%.

² Analog Output Formats: Features standard current loops of 0/4 to 20 mA alongside proportional voltage spans of 0 to 10 V.

² Response Logic Speed: Delivers exceptionally fast alarm triggering, capturing sudden axial shaft movements within 40 ms or less.

² Operating Temperature Window: Hardened for plant-floor panels, running reliably across standard industrial cabinet ranges from 0°C to 65°C (32°F to 149°F).

Turbomachinery Axial Shaft Tracking:

Turbine Thermal Expansion Auditing:

Reciprocating Compressor Wear Analysis:

Functions in Thrust Position mode to measure exact axial shaft clearances relative to the thrust bearing collar, preventing severe axial drift damage.

Operates in Differential Expansion mode during turbine startup phases to track the relative growth differences between the heated rotor body and the external machine casing.

Configured in Average Rod Drop mode to calculate horizontal piston rod position variances, enabling maintenance teams to track internal rider band wear before cylinder failure occurs.
