Emerson INDUSTRIAL AUTOMATION

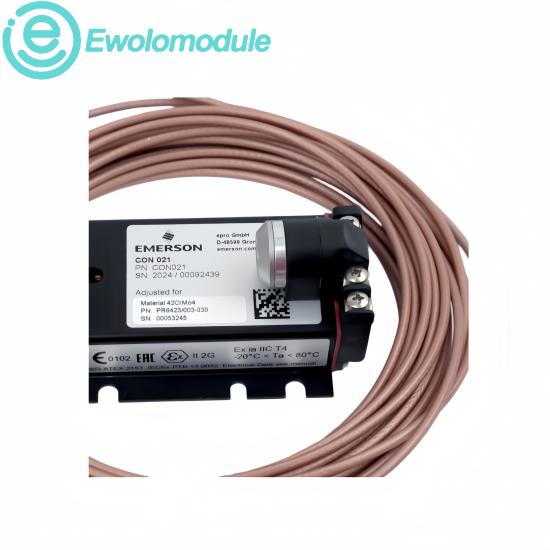

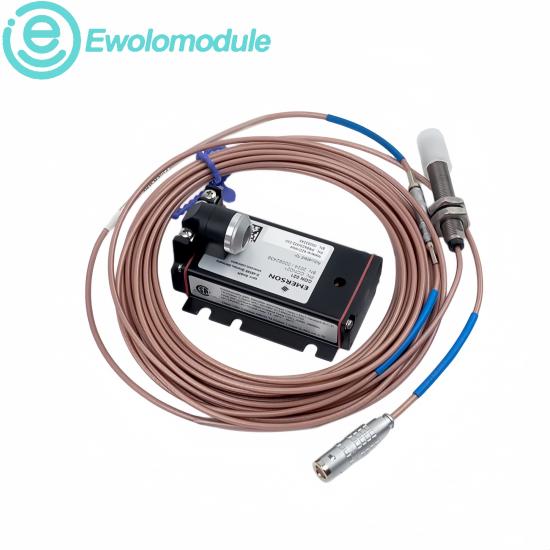

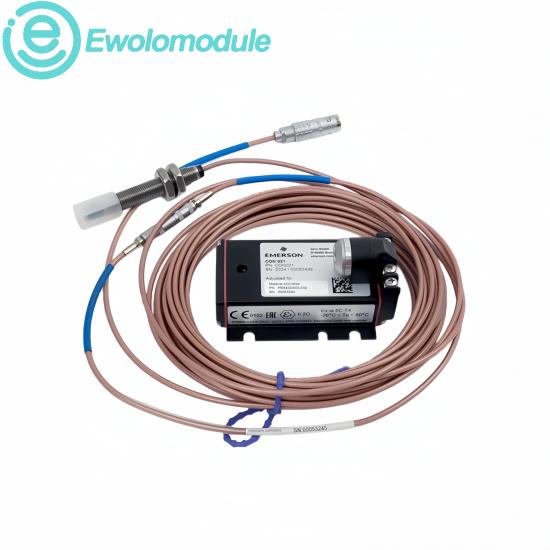

Emerson Epro PR6423/013-130 CON021 8mm Eddy Current Sensor
An 8mm eddy-current probe and CON021 converter combination for non-contact shaft displacement and vibration monitoring on rotating machinery.
PRODUCT PROFILE
System family
Epro PR6423
Device class
8mm eddy current sensor
Control role
Shaft vibration measurement
Availability
Limited stock
Official technical data
Manufacturer
Emerson Epro
Probe model
PR6423/013-130
Converter
CON021
Probe diameter
8mm
Measurement range
2mm
Initial air gap
0.5mm
Minimum shaft diameter
25mm
Protection
IP66 probe
Operating temperature
-35 to +180°C
Target material
Ferromagnetic steel
Measurement method
Non-contact eddy current
System
Matched probe chain
Installation & Upgrades
01 · Record
Record probe insertion depth, gap voltage, cable route and converter suffix before removal.
02 · Match
Install the matching PR6423 probe and CON021 converter without modifying calibrated cabling.
03 · Commission
Set the approved air gap and verify static position and dynamic vibration response.
Compatibility & Interoperability
System integration
Use with the matching CON021 converter and approved Epro monitoring inputs.
Hardware matching
Confirm probe suffix, cable length, measurement range and shaft material.
Revision control
Compatible with established Epro machinery protection measurement chains.
Brand characteristics
Emerson Epro proximity systems combine precision probes, matched converters and documented calibration for critical machinery monitoring.
Calibrated identity
Complete probe and converter suffixes define the measurement chain.
Non-contact operation
Eddy-current sensing measures shaft motion without mechanical contact.
Service continuity
Matched replacement preserves signal scaling and protection settings.
Application fields
PR6423/013-130 CON021 supports continuous shaft-position and vibration measurement across critical rotating assets.
Turbine bearings
Relative shaft vibration monitoring at journal bearing locations.
Compressors
Shaft position and dynamic movement measurement on process trains.
Predictive maintenance
Trend data for early fault detection and outage planning.
