EMERSON EPRO

NON-CONTACT
MACHINERY SENSOR

PRODUCT DETAILS · 01

EDDY CURRENT SENSOR SYSTEM

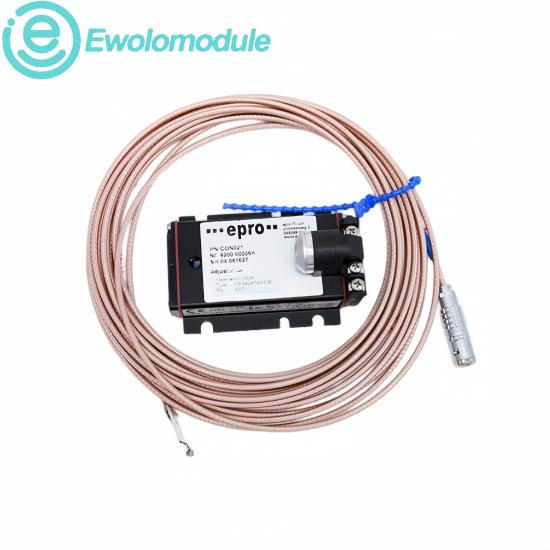

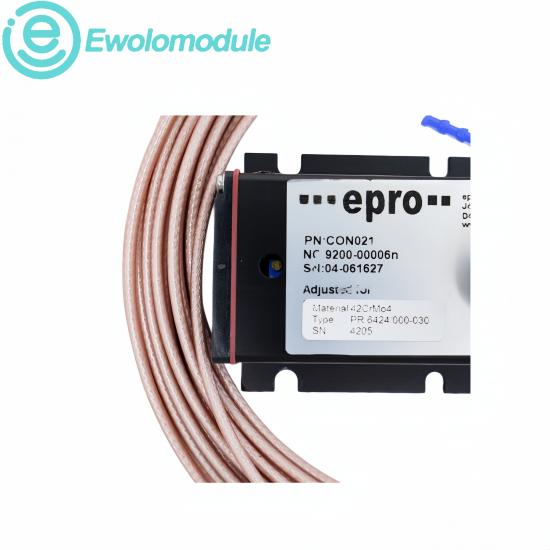

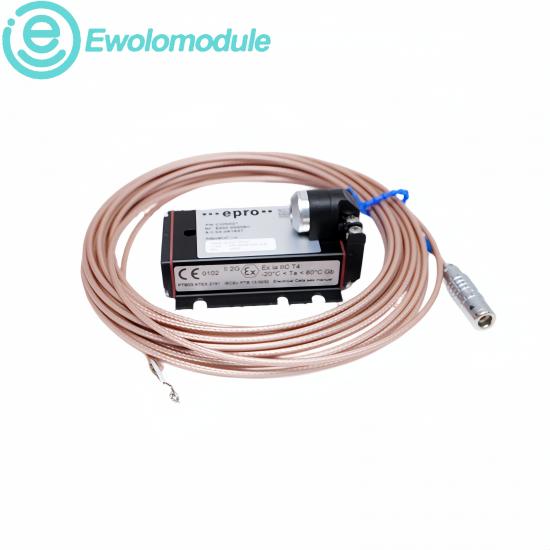

Emerson EPRO PR6424/000-030 CON021

Prepared for documented industrial service where the complete type code, installed configuration and host compatibility are retained.

PRODUCT OVERVIEW

Matched displacement channel

This probe and converter set measures shaft motion without contact in documented machinery-protection systems. Preserve the matched calibration and complete model code.

SYSTEM CONTEXT

Turbomachinery monitoring

Use the installed target material, nominal gap, cable routing and monitoring-card configuration to retain measurement linearity after replacement.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL+86 17359287459

EMAILsales9@apterpower.com

Explore other Emerson EPRO products →

02 / PERFORMANCE & APPLICATIONS

TECHNICAL PLANNING

Performance & Efficiency

The M18 probe provides a ±2mm linear span with 4V/mm sensitivity and frequency response from static displacement to 10kHz vibration.

A matched CON021 converter conditions the signal for continuous shaft-vibration, axial-position and differential-expansion monitoring.

Application Scenarios

Applied on steam turbines, gas turbines, compressors and large rotating assets requiring API-style protection measurements.

Typical service includes bearing-channel renewal, thrust-position monitoring and calibrated spare replacement during outages.

Technical data

LINEAR SPAN ±2mm	SENSITIVITY 4V/mm	FREQUENCY RESPONSE DC–10kHz
SUPPLY RANGE 10–30VDC	PROBE TEMPERATURE -35°C to +180°C	PROTECTION RATING IP67

Confirm all electrical limits, channel assignments and hardware revisions against the installed documentation before energizing.

03 / BRAND & APPLICATIONS

Brand characteristics

Monitoring heritage	EPRO sensing systems support critical rotating machinery protection.
Matched calibration	Probe and converter pairing preserves measurement linearity.
Harsh-duty design	Stainless sensing hardware withstands demanding bearing locations.
Signal integrity	Conditioned output supports continuous vibration and position analysis.
Lifecycle support	Matched sensor sets maintain established protection channels.

Application fields

Steam turbines	Shaft vibration and axial thrust position monitoring in documented operation.
Gas turbines	Continuous rotor-motion measurement in bearing housings in documented operation.
Compressors	Non-contact displacement sensing on critical machines in documented operation.
Power generation	Protection-channel renewal during planned outages in documented operation.
Lifecycle service	Matched probe and converter replacement with calibration in documented operation.

Product references

Emerson EPRO

PR6422	PR6423	PR6424	PR6425
PR6426	PR6428	CON011	CON021
CON031	CON041	MMS6110	MMS6120
MMS6140	MMS6210	MMS6220	MMS6250
MMS6312	MMS6410	MMS6823	MMS6831

Vibro-Meter

TQ401	TQ402	TQ403	TQ412
TQ422	IQS450	IQS452	IQS900
CA202	CA901	CP103	CP216
IPC704	MPC4	AMC8	XMV16
XIO16T	XMC16	RLC16	VM600

04 / SERVICE & POLICY

QUOTATION SUPPORT

Quote

IDENTIFY

Provide the complete PR6424/000-030 CON021 reference, clear nameplate and connector photos, installed assembly reference, hardware revision and required quantity.

VERIFY

Confirm the host system, mating hardware, field wiring, operating conditions and current configuration before replacement.

QUOTE & DELIVERY

State the delivery destination, required date and preferred transport method. Availability, condition, warranty, lead time, protective packing and shipping terms will be checked before quotation.
