│Basic Information│

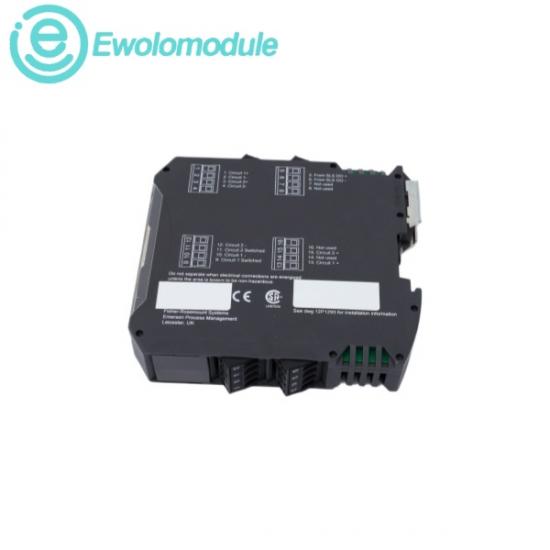

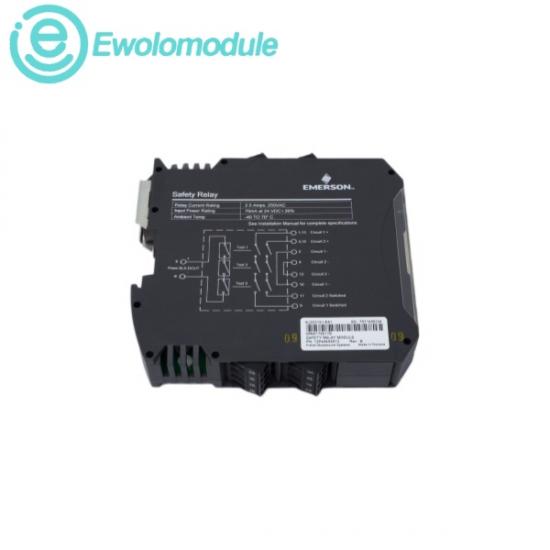

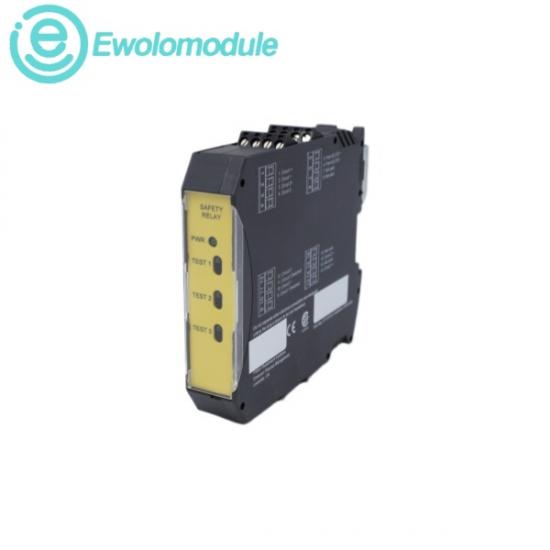

The EMERSON KJ2231X1-EA1 is a high-reliability Safety Instrumented Systems (SIS) relay module designed for safety-critical industrial applications. Acting as an isolated physical switch interface within the DeltaV architecture, it converts low-current electronic controller logic into higher-current field-level electrical outputs. It is engineered with redundant embedded components to prevent single points of failure, ensuring that critical field systems can be safely de-energized or activated during emergency event trips.

│Details│

Input Operating Power: 24 VDC at a current consumption of 70 mA.

Relay Contact Voltage & Current (DC): Max 30 VDC at 2.5 A.

Relay Contact Voltage & Current (AC): Max 250 VAC at 2.5 A.

Operating Ambient Temperature: -40°C to +70°C (-40°F to 158°F).

Relative Humidity Range: 5% to 95%, non-condensing.

│Application│

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
